FEATURES
- Kinkelder produces HSS metal circular sawblades in diameters varying from 150 to 570 mm in various designs.
- To suit Bramley saw
STANDARD SPECIFICATIONS
Material: M2 = DIN 1.3343
Manufacturing: DIN 1836, 1837, 1838 and 1840 standards
Tooth forms: BW, HZ
Cutting clearance angle 18° / 8°
Design hardness Steam-treated 63-65 HRc
Diameter: 315mm
Thickness: 2.5mm
Bore: 32mm
Pinhole combinations 32mm: 2/8.5/45, 2/11/63
Weight: 1.3kg
WHAT YOU GET

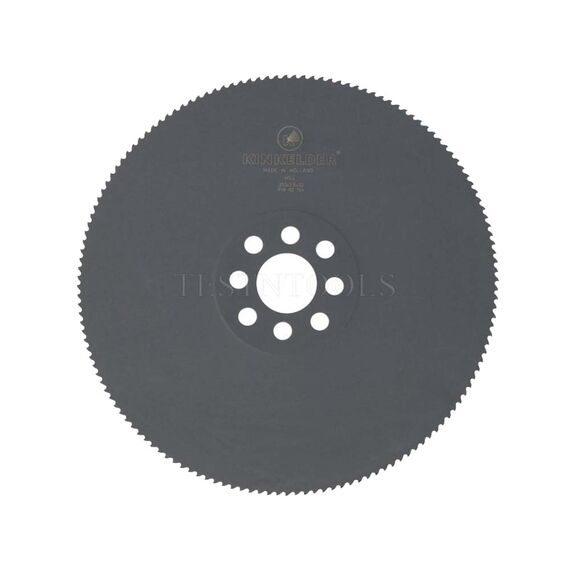

1 x Kinkelder HSS Circular Sawblades 315 x 2.5 x 32 x 200T
Service Life Improvement
There are ways of improving the service life of a sawblade. This is among others possible by using a steam-treated sawblade.
Steam-Treated
The steam-treatment of Kinkelder HSS sawblades is carried out in a special oven, in which steam at a constant temperature of 550°C is injected. This process provides a hard dark-blue layer of Fe3O4 on the sawblade with a thickness of 3 - 5µm. This hard, wear resistant oxide layer has a micro-porous structure as a result of which the coolant has a better cooling and lubricating effect on the sawblade. The result is a greatly reduced chance of cold-weld and an increase in service life.
