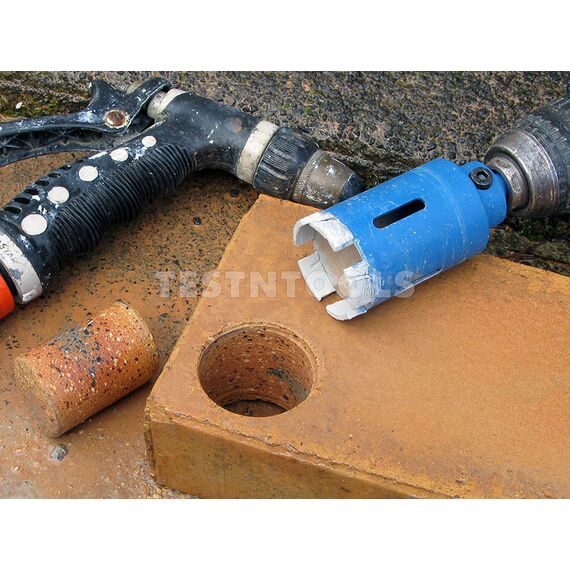

These are good for a variety of trades where you need to make a big hole in materials that are normally difficult to drill. The metal bonded diamond segments last a lot longer (about 50x more) than diamond coated holesaws because the diamonds are embedded throughout the segment and fresh ones are exposed as the bonding metal wears away.
The replaceable pilot drill gets the hole in the right place in materials where you'd normally use a masonry drill. For harder materials such as porcelain tiles and granite remove the pilot drill and tilt the holesaw until a moon cut is done then slowly straighten up. Or drill a hole in some thin scrap wood (e.g. hardboard) to use as a template guide that stops the holesaw skipping, until the hole is started.
DRILLS HOLES IN
Reinforced concrete and concrete blocks
Hardies and fiber cement type products
Porcelain and ceramic wall and floor tiles
Marble, granite and other stone
Bricks and pavers etc
SPECIFICATIONS
Diameter 70mm (2 3/4 inch)
Cutting depth 52mm
Shank fits 13mm chuck
Metal bonded (sintered) diamond segments 2.8 x 8.0mm
Replaceable masonry pilot drill
Can be used dry, but wet is best
DRILLING TIPS
1. Wet cutting is best. It reduces the amount of dust, flushes out the slurry so cuts a lot quicker and greatly extends the tool life by cooling the cutting edge.
2. If you have to dry cut do 10 seconds on, 10 seconds off to avoid overheating.
3. Never use hammer action it is less effective and the holesaw may be damaged.
4. For deep holes break out the core with a cold chisel then keep going.
NOTE - The photo may show a different size than described but don't worry we will send you the correct one.
