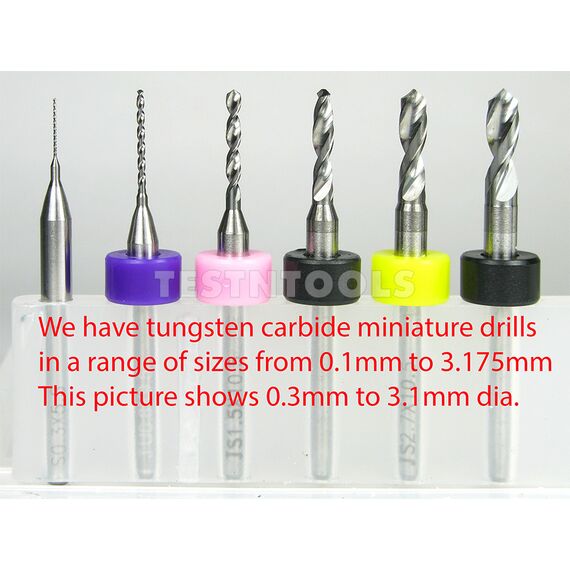

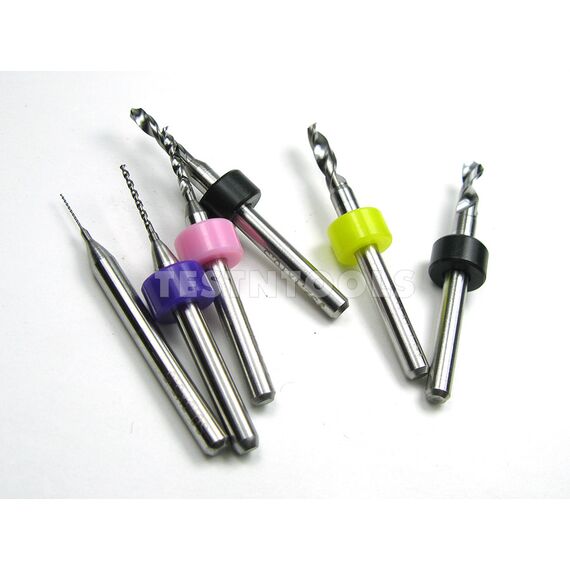

Looking for a small hole?
These are high quality drill bits good for a range of activities such as model making, pcb component holes, woodcraft, bone carving, watch repair, jewellery making, carburetor jet tuning etc.
They are precision ground tungsten carbide which easily outlasts cheaper high speed steel (HSS) twist drills and enables them to drill difficult metals like stainless steel.*
The 3.2mm shank eliminates the need to buy an accessory chuck or different size collet. For use with all high speed rotary tools including Dremel, Ryobi, Fuller, Ozito, Colt, GMC and other brands that have a 3.2mm collet.
FEATURES
Drill diameter is laser etched on shank
For Dremel tools and CNC machines
SPECIFICATIONS FOR ALL SIZES
38mm total length
3.2mm shank
PRICE IS FOR PACK OF 5
After ordering tell us how what sizes you want to make up the set of 5 each size you want.
DIAMETER X DRILLING DEPTH
0.30 mm x 5.5 mm
0.35 mm x 5.5 mm
0.40 mm x 7.0 mm
0.45 mm x 7.0 mm
0.50 mm x 9.0 mm
0.55 mm x 9.0 mm
0.60 mm x 9.5 mm
0.65 mm x 9.5 mm
0.70 mm x 9.5 mm
0.75 mm x 9.5 mm
0.80 mm x 9.5 mm
0.85 mm x 9.5 mm
0.90 mm x 9.5 mm
0.95 mm x 9.5 mm
1.00 mm x 10.5mm
1.05 mm x 10.5mm
1.15 mm x 10.5 mm
1.20 mm x 10.5 mm
1.25 mm x 10.5 mm
1.30 mm x 10.5 mm
1.35 mm x 10.5 mm
1.40 mm x 10.5 mm
1.45 mm x 10.5 mm
1.50 mm x 10.5 mm
1.55 mm x 10.5 mm
1.60 mm x 10.5 mm
1.65 mm x 10.5 mm
1.70 mm x 10.5 mm
1.75 mm x 10.5 mm
1.80 mm x 10.5 mm
1.85 mm x 10.5 mm
1.90 mm x 10.5 mm
1.95 mm x 10.5 mm
2.00 mm x 10.5 mm
2.05 mm x 10.5 mm
2.10 mm x 10.5 mm
2.15 mm x 10.5 mm
2.20 mm x 10.5 mm
2.25 mm x 10.5 mm
2.30 mm x 10.5 mm
2.35 mm x 10.5 mm
2.40 mm x 10.5 mm
2.45 mm x 10.5 mm
2.50 mm x 10.5 mm
2.55 mm x 10.5 mm
2.60 mm x 10.5 mm
2.65 mm x 10.5 mm
2.70 mm x 10.5 mm
2.75 mm x 10.5 mm
2.80 mm x 10.5 mm
2.85 mm x 10.5 mm
2.90 mm x 10.5 mm
2.95 mm x 10.5 mm
3.00 mm x 10.5 mm
3.10 mm x 10.5 mm
*We recommend using cutting fluid when drilling hard materials like stainless. On softer metals like mild steel cutting fluid will prolong the life of the drill.
ALWAYS WEAR SAFETY GLASSES
