Tungsten carbide rotary burrs have a wide range of applications when machining mild steel, carbon steel, cast iron, stainless steel and aluminium etc. They remove material many times faster than traditional hand files allowing for increased productivity and the double cut reduces the burr pulling into the work. They are for use in electric or air powered die grinders and some routers (where the router can be removed from the base).
ADVANTAGES
50 times the life of emery wheels
10 times the life of high speed steel burrs
5 times faster material removal than emery wheels
Doesn't make lots of dust like emery wheels do
SPECIFICATIONS

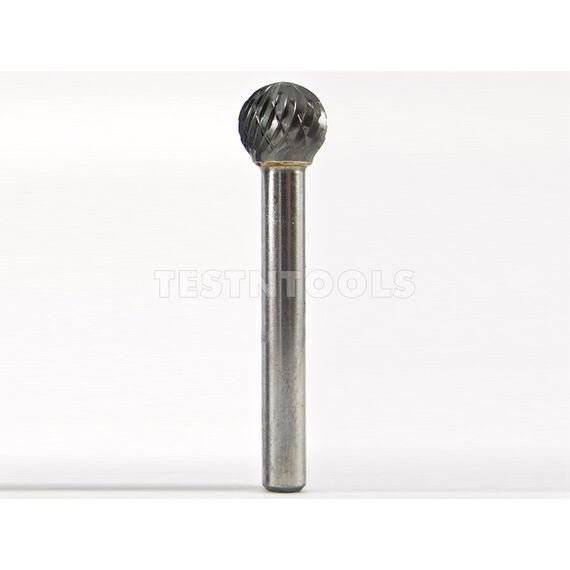

Ball shape head
Head size 10L x 10W mm
Overall length 56mm
6.0mm shank
Double cut
USE ON MATERIALS
Aluminium
Brass
Bronze
Carbon steel
Cast iron
Copper
Fibreglass
Hardboard
Hardened steel up to HRC65
Inconel
Mild steel
Stainless steel
Titanium
APPLICATIONS
Cylinder head porting
Welding spatter clean up
Carving and sculpting
Equine dentistry
Removing burrs
Grinding shapes
Chamfering
RECOMMENDED OPERATING SPEEDS
Burr Size Recommended rpm
3mm 65000-75000
6mm 30000-40000
8mm 25000-28000
10mm 20000-23000
12mm 15000-18000
16mm 10000-14000
IMPORTANT
Only at high speeds can their performance be realised. Electric drills are not fast enough, you need a die grinder or router.
Use a lubricant when grinding sticky metals such as aluminium, lanolin works well. Also called a rotary file.
