Indexable turning tools are by far the easiest and quickest way to get the job done. When a tip becomes dull or chipped, simply change to a sharp face. Most carbide inserts have at least 2 tips. They also have the advantage of being set to the correct height, no need to buy a quick change tools post or centre it with shims.
The size of the set (e.g. 8mm, 10mm, 12mm, or 16mm) describes the tip height when mounted, so be careful to measure the maximum capacity of your tool holder to ensure the shank will fit. The shank sizes are below e.g. a 100L x 16W x 16H mm has a shank that is 16mm square.
This set has various internal and external tools for internal (boring) and external turning, threading and parting. The gold coloured tips are super hard carbide suitable for stainless steel and softer, the grey tips are YT15 carbide good for mild steel and softer.
The holders include standard ISO inserts and we have replacements available.

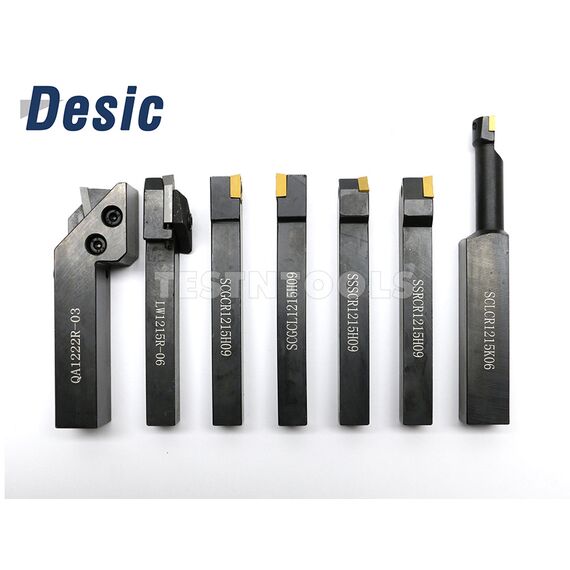

SET INCLUDES
#1 Parting - 68L x 22W x 16H mm
Overall length 100mm
Maximum parting diameter 40mm
Holder code QA1222R-03
Insert tip code J200
#2 Threading - 70L x 15W x 12H mm
Overall length 100mm
Holder code LW1215R-06
Insert tip code M606
#3 Turning - 80L x 15W x 12H mm
Overall length 110mm
Holder code SCGCR1215H09
Insert tip code CCMT09T308
#4 Turning - 80L x 15W x 12H mm
Overall length 110mm
Holder code SCGCL1215H09
Insert tip code CCMT09T308
#5 Turning - 80L x 15W x 12H mm
Overall length 110mm
Holder code SSSCR1215H09
Insert tip code SCMT09T308
#6 Turning - 80L x 15W x 12H mm
Overall length 110mm
Holder code SSRCR1215H09
Insert tip code SCMT09T308
#7 Boring - 75L x 15W x 18H mm
Overall length 125mm
Holder code SCLCR1215K06
Insert tip code CCMT060204

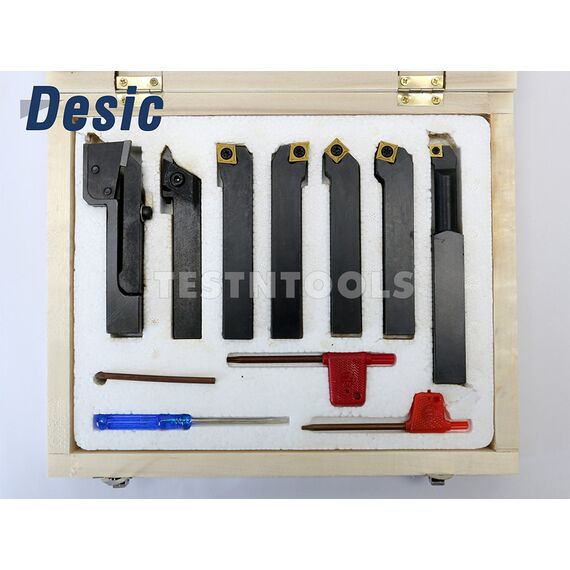

INCLUDES
Tips shown on the holders

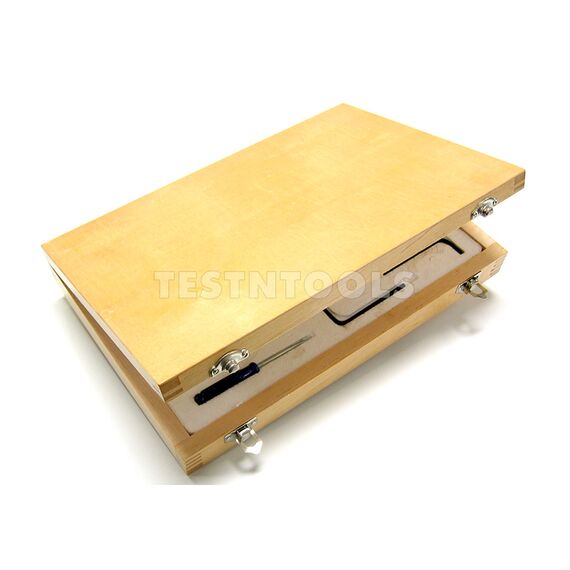

Wooden storage case
Torx spanners
Allen key
Always use coolant and sensible feed speeds to prolong tip life.
