SH = Small Head
These tungsten carbide rotary burrs have a small 3mm shank which fit all Dremel rotary tools.
Tungsten carbide rotary burrs have a wide range of applications when machining mild steel, carbon steel, cast iron, stainless steel and aluminium etc. They remove material many times faster than traditional hand files allowing for increased productivity.
ADVANTAGES
50 times the life of emery wheels
10 times the life of high speed steel burrs
5 times faster material removal than emery wheels
Doesn't make lots of dust like emery wheels do

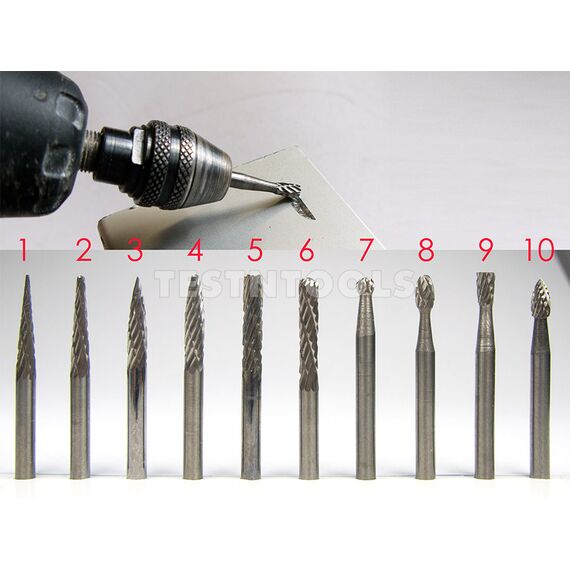

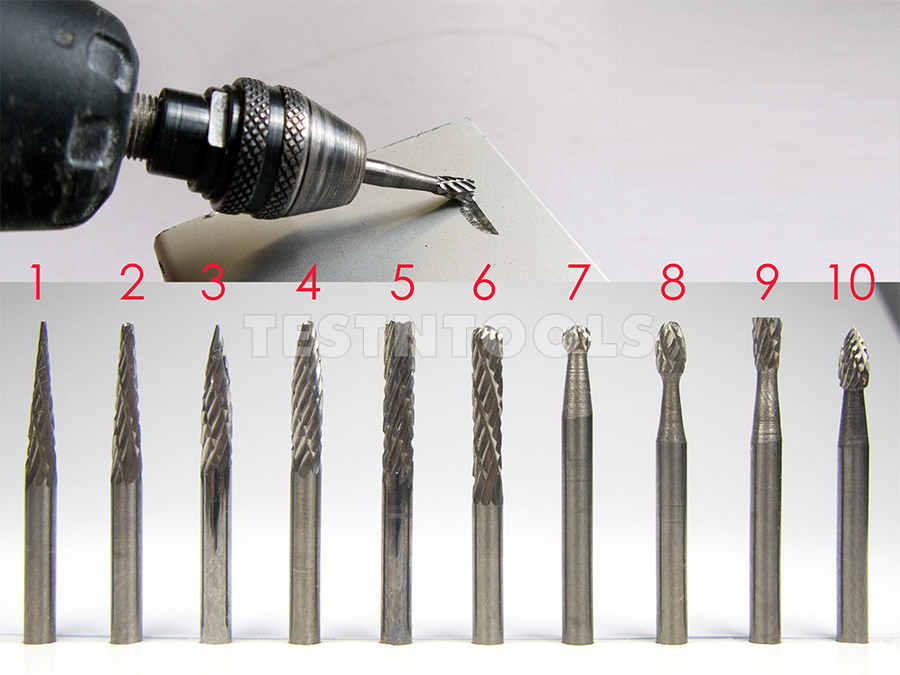

10 PIECE SET INCLUDES - See photo
1 x Cylinder end cut
1 x Cylinder radius
1 x Ball
1 x Oval
1 x Tree pointed
1 x Tree radius
1 x Flame
1 x Cone radius
1 x Cone
1 x Inverted cone
All are double cut
All are 3.0mm shank (Fits standard Dremel 3.2mm 1/8" collet)
All nominal total lengths 38mm
All heads 3mm at widest
USE ON MATERIALS
Aluminium
Brass
Bronze
Carbon steel
Cast iron
Copper
Fibreglass
Hardboard
Hardened steel to HRC65
Inconel
Mild steel
Stainless steel
Titanium
APPLICATIONS
Cylinder head porting
Welding spatter clean up
Carving and sculpting
Equine dentistry
Removing burrs
Chamfering
Grinding shapes
RECOMMENDED OPERATING SPEEDS
Burr Diameter mm | Recommended Spindle rpm |
3 | 65000-75000 |
6 | 30000-40000 |
8 | 25000-28000 |
10 | 20000-23000 |
12 | 15000-18000 |
16 | 10000-14000 |
NOTES
Only at high speeds can their performance be realised. Electric drills are not fast enough.
Use a lubricant when grinding sticky metals such as aluminium.
Also called a rotary file.
