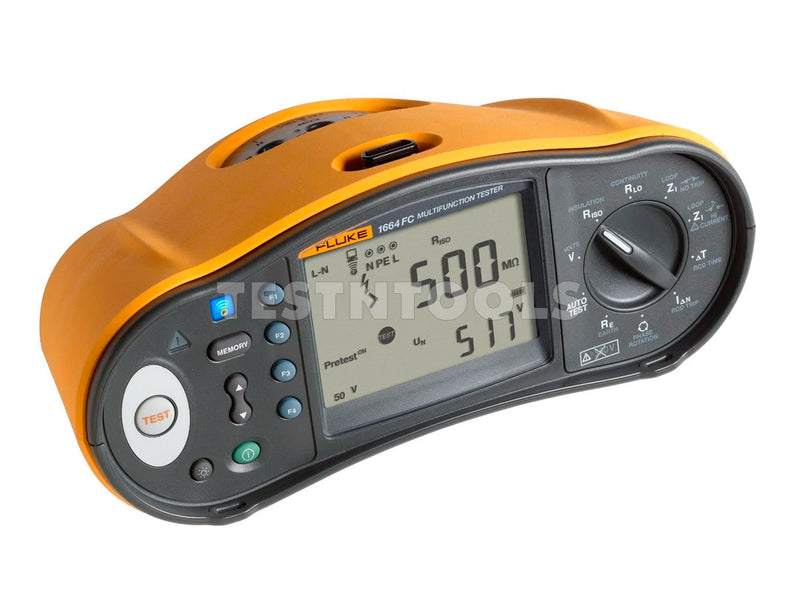

A Fluke 1664-FC 240V AC Multi-Function Tester with a bright orange and black plastic housing, featuring a digital LCD screen and rotary control dial, isolated on a white background.

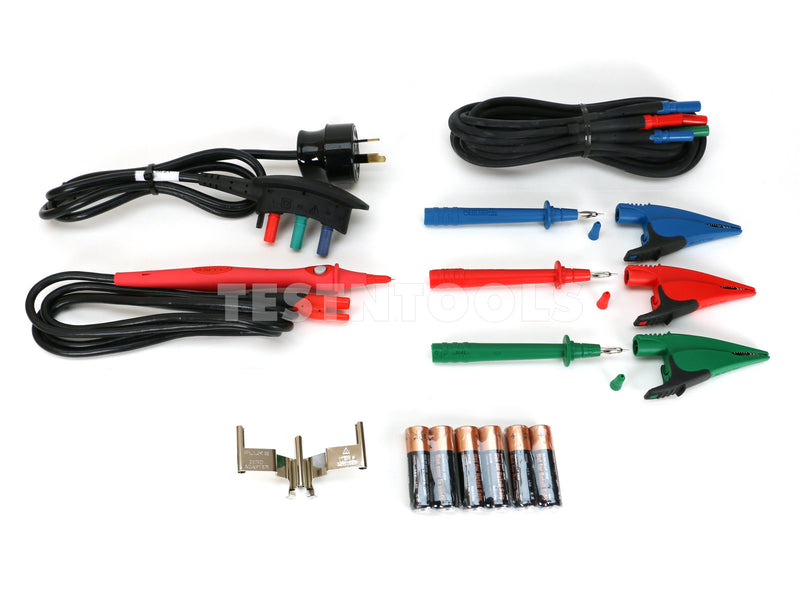

A Fluke multicolor multimeter test lead kit laid out on a white background, including a black power cord with a three-pin plug, black test leads, red and blue alligator clips, green and blue probes, a small metal terminal piece, and a row of six batteries. A semi-transparent 'TESTTOOLS' watermark is visible across the center.

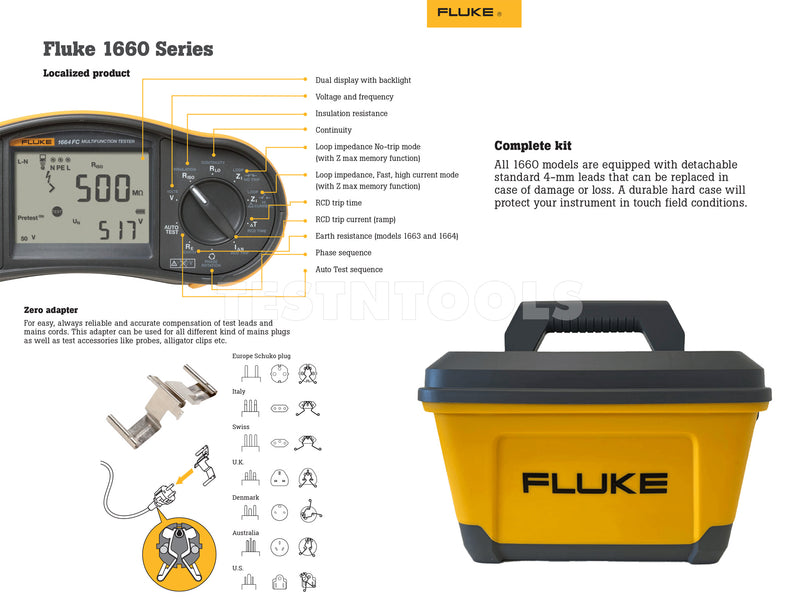

Fluke 1660 Series handheld multimeter with its yellow and black storage case, shown on a white background with feature callouts, adapter diagram, and included accessories.

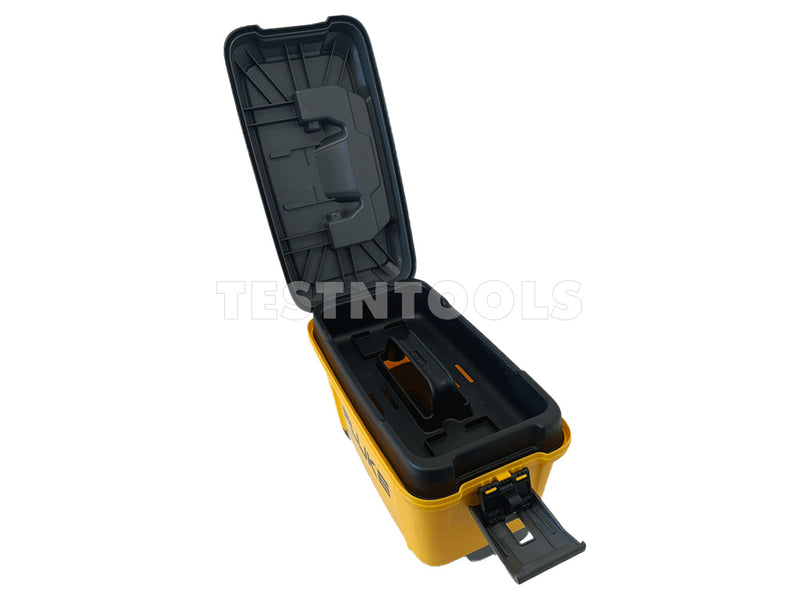

A yellow and black hard protective storage case shown open on a white background, with a foam insert inside and a small latch extending from the front.

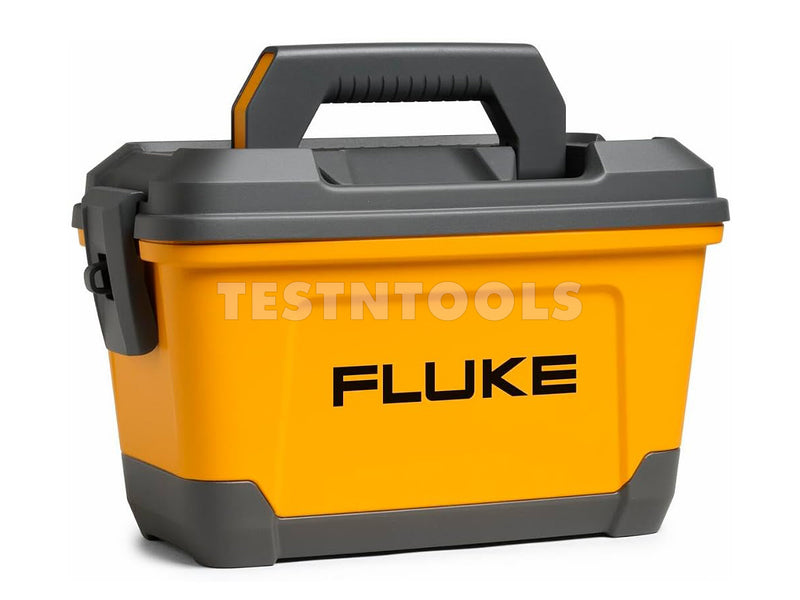

A Fluke yellow and gray hard plastic tool case with a carrying handle, shown on a white background with a Testntools watermark overlay.

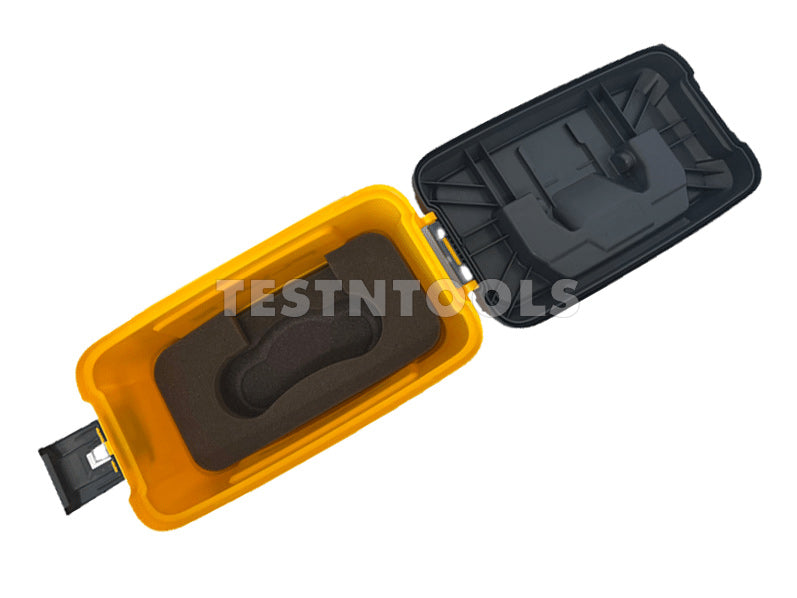

A yellow and black hard plastic protective case shown open on a white background, with foam inserts inside and a semi-transparent TESTNTOOLS watermark across the center.

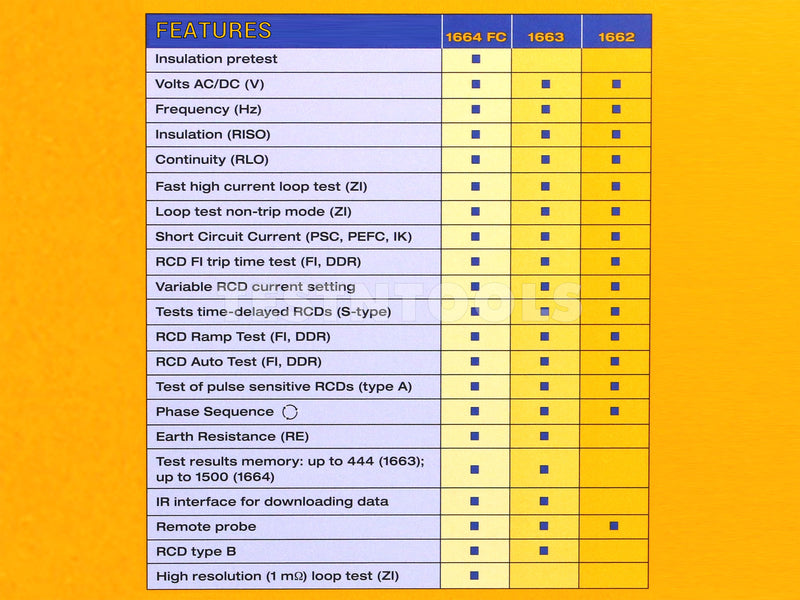

A comparison chart table titled 'FEATURES' with columns for 1664 FC, 1663, and 1662, listing technical specifications such as insulation pretest, AC/DC voltage, frequency, insulation resistance, continuity, high current loop test, short circuit current, and trip time test.
A black-and-white technical specification and feature comparison table for industrial electronic modules, showing model lines, performance functions, electrical specifications, and connectivity details in a tabular format.
A Fluke 1664-FC 240V AC Multi-Function Tester with a bright orange and black plastic housing, featuring a digital LCD screen and rotary control dial, isolated on a white background.
A Fluke multicolor multimeter test lead kit laid out on a white background, including a black power cord with a three-pin plug, black test leads, red and blue alligator clips, green and blue probes, a small metal terminal piece, and a row of six batteries. A semi-transparent 'TESTTOOLS' watermark is visible across the center.
Fluke 1660 Series handheld multimeter with its yellow and black storage case, shown on a white background with feature callouts, adapter diagram, and included accessories.
A yellow and black hard protective storage case shown open on a white background, with a foam insert inside and a small latch extending from the front.
A Fluke yellow and gray hard plastic tool case with a carrying handle, shown on a white background with a Testntools watermark overlay.
A yellow and black hard plastic protective case shown open on a white background, with foam inserts inside and a semi-transparent TESTNTOOLS watermark across the center.
A comparison chart table titled 'FEATURES' with columns for 1664 FC, 1663, and 1662, listing technical specifications such as insulation pretest, AC/DC voltage, frequency, insulation resistance, continuity, high current loop test, short circuit current, and trip time test.
A black-and-white technical specification and feature comparison table for industrial electronic modules, showing model lines, performance functions, electrical specifications, and connectivity details in a tabular format.

Fluke 1664FC Multifunction Installation Tester

SKU FLUKE-1664FC
$0.00 - $0.00
$0.00
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
Availability:
Low stock

PRICE INCLUDES GST

Our meters have the latest firmware, including 6mA RDC-DD testing functionality for Electric Vehicle (EV) charging stations.

The 1664 installation tester delivers the full-featured functionality and advanced measurement capabilities that professional installers need. It is compact and lightweight and comes with a padded carrying and waist strap for convenient handling.

Operation is intuitive and easily mastered by all levels of workers so you can put it to work immediately for quick and efficient testing to all local regulations. Features like On/Off switchable auto-start for RCD and loop test, and self-test save time and give you more confidence in your results. Performing key tests with one button press reduces test times by up to 40%.

FEATURES
> Checks polarity to detect broken N wires
> Insulation Resistance (IR), loop, and line resistance testing
> IR-USB port for downloading test results (*requires cable and software)
> Z-max memory for loop tests to for easy evaluation of the highest value
> Zero adapter for mains cord resistance compensation
> Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)
> RCD switching time and tripping level (ramp test)
> RCD trip time and current for A & AC type RCD's
> Tests Type B smooth DC sensitive RCDs (EV chargers, VSD's, medical etc)
> Measures RCD variable current
> Automatic RCD test sequence
> Phase sequence test (phase rotation)
> Safety rated CAT III 500V, CAT IV 300V
> Comes with case, neck strap, and probe with test button

KEY SPECIFICATIONS
AC voltage range 0-500V
Resolution 0.1V
Accuracy (45-60Hz) 0.8% + 3
Input impedance 360 k ohms
Overload protection 660 V rms
Ohms auto-ranging  20 / 200 / 2000 ohms
Insulation resistance test voltages 50 / 100 / 250 / 500 / 1000 Volts
Loop and line impedance (ZI) range 10 / 0.001 ohms / high current m ohms
Prospective earth fault current test 1000A / 10kA (50kA)
RCD types tested A, AC, B (DC sensitive), G, S
RCD test multiplier x1/2, x1, x5 with ramp test
RCD trip test current 10-1000 mA in 6 ranges
RCD/FI tripping current ramp test 30% to 110% of rated RCD current
Earth resistance test (RE) range 200 / 2000 ohms
Earth resistance test (RE) resolution 0.1 / 1ohms
Overvoltage CAT III / 500V; CAT IV 300V
Protection class IP40

Powered by 6 x AA batteries included
Weight including batteries 1.3Kg
Size 100L x 250W x 125H mm

WHAT YOU GET
> Fluke 1664FC Multifunction Installation Tester
> C1600SF hard plastic padded carry case
> FLK-166X Heavy-duty mains test cord
> TP165X slim probe with test button
> PNE test probe set with alligator clips
> Mains plug zero adapter 3261925
> Duracell Industrial AA batteries
> Fluke factory calibration certificate
> Padded carry strap
> Quick reference manual

3 Year Fluke Warranty

OPTIONAL ADDITIONAL ACCESSORIES
* Fluke IR189USB IR-USB interface cable (for use with optional Fluke DMS and FVF software).
