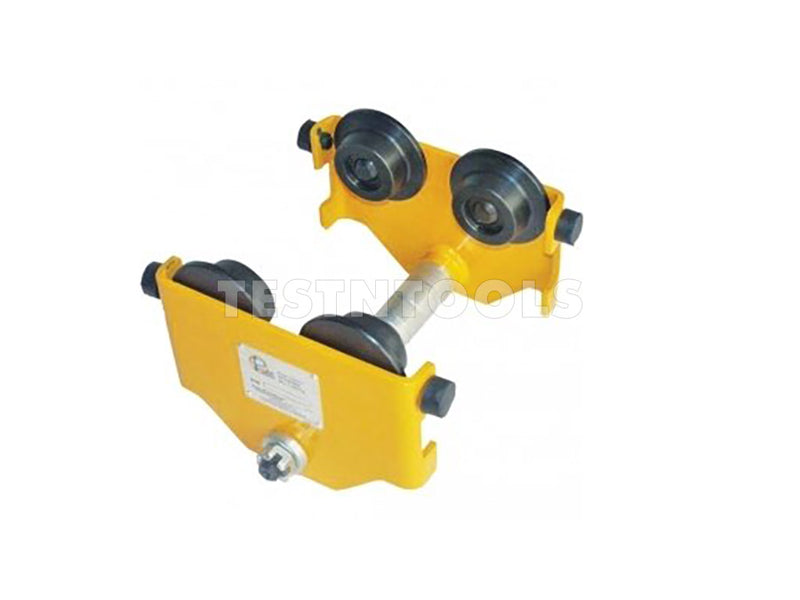

Pacific Push Girder Trolley 1T 1000Kg PPT310HK

FEATURES
> Generation 3 push girder trolley
> Fully adjustable to suit various beam widths
> Complies with Australian Standards AS1418.2
> Fitted with anti-drop plates for improved safety and compliance
> High-quality construction for an economical price
> High-grade, fully sealed bearings for maintenance-free extended life
> Also available with hand-geared travel

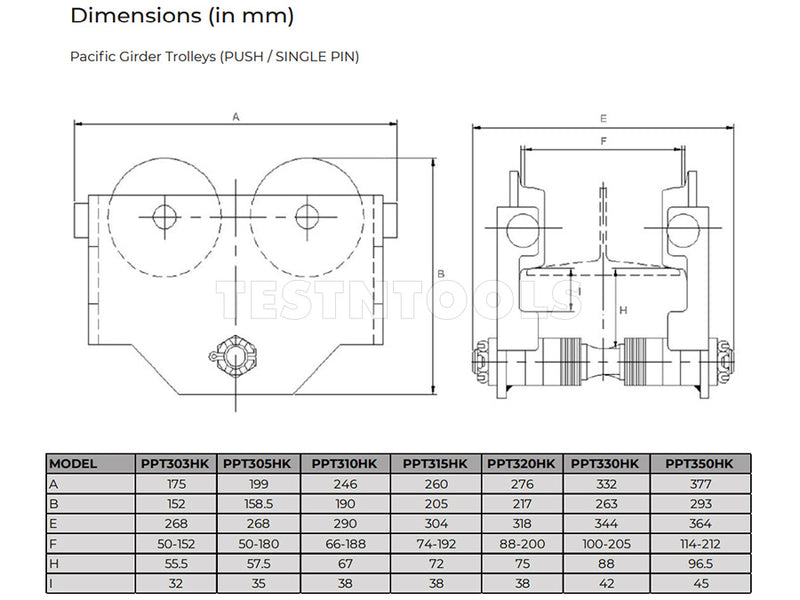

SPECIFICATIONS
Girder width 66-188 mm
Capacity 1 Tonne (1000 kg)
Single pin
Headroom 67mm
Min radius of curve 1 m
Weight 12 kg

NOTES
> Your chain hoist, chain block, or lever hoist, etc, hooks directly onto the single pin. If there is not enough space between the top of the hook and the underside of the beam, you may need to use a master link to provide a hook mounting point. This will also rotate your lifting equipment 90 degrees, which may be a consideration if your chain hoist, etc, doesn't have a swivel hook at the top.

> For higher headroom requirements and a hook position that's natively at 90 degrees to the trolley, please see the range of 2-pin push trollies.
