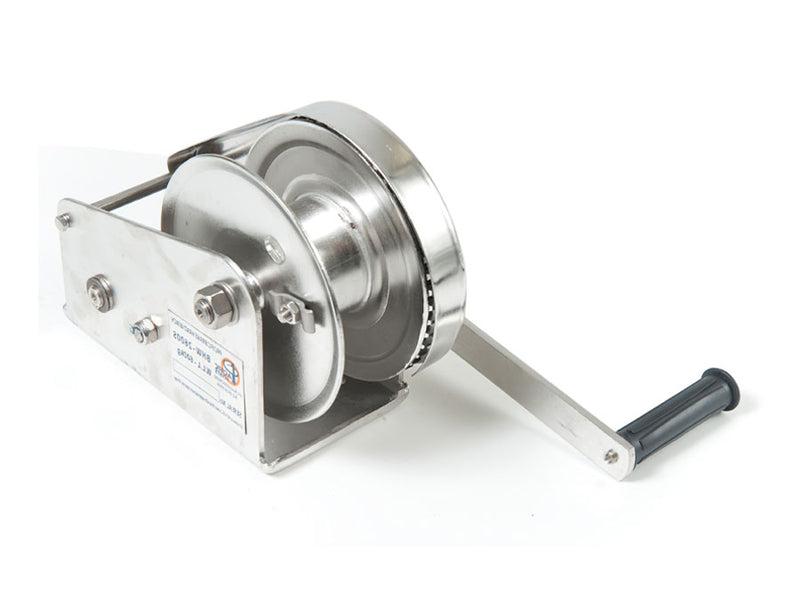

Pacific Braked Hand Winch 270Kg BHW123 Stainless Steel

FEATURES
> Stainless steel material
> Heat-treated gears and removable handles
> Compact, lightweight, and rugged construction
> Mount vertically or horizontally, but must be bolted into place, no hook option
> Positive Weston-style brake will hold the load in any position
> Mechanical components enclosed for protection and safety
> AS1418.2 compliance when correctly fitted with the approved wire rope and fittings
> Powder-coated option depending on the intended environment
> Available with optional rope

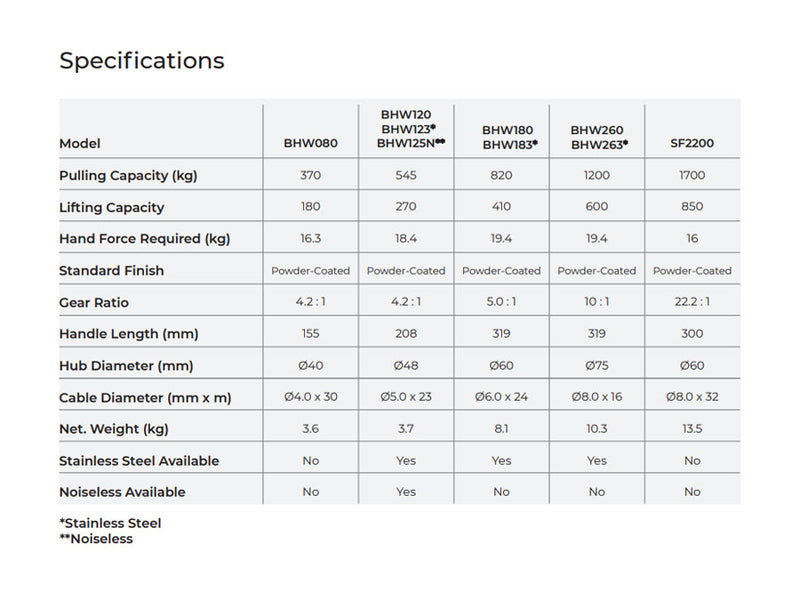

SPECIFICATIONS
Pulling capacity 545kg
Lifting capacity 270kg
Hand force required 18.4kg
Gear ratio 4.2:1
Handle length 208mm
Hub diameter 48mm
Cable diameter 5mm x 23m
Weight 3.7kg

Model BHW1200S

Note: Supplied without rope to allow full flexibility on length.
