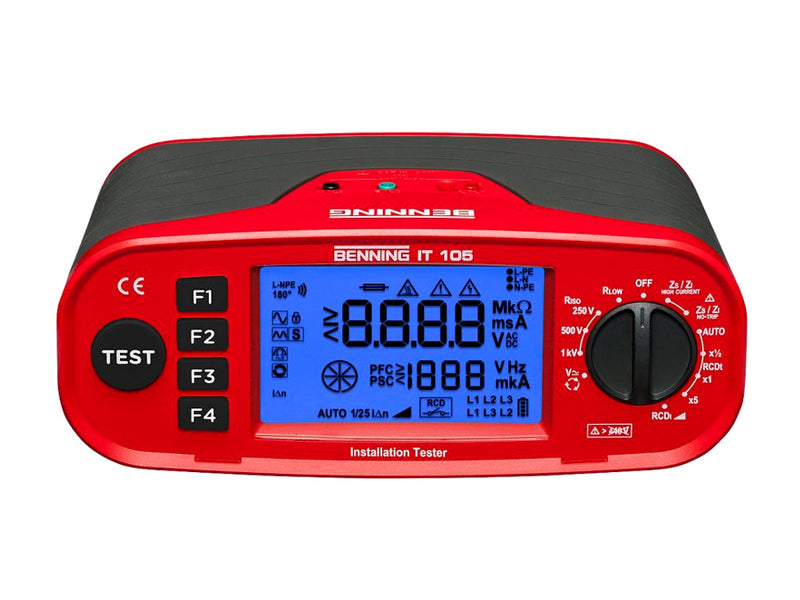

Benning Multifunction Installation Tester IT 105
SKU IT105
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$2,225.00
$2,225.00
-
$2,225.00
Current price
$2,225.00
Availability:
in stock, ready to be shipped

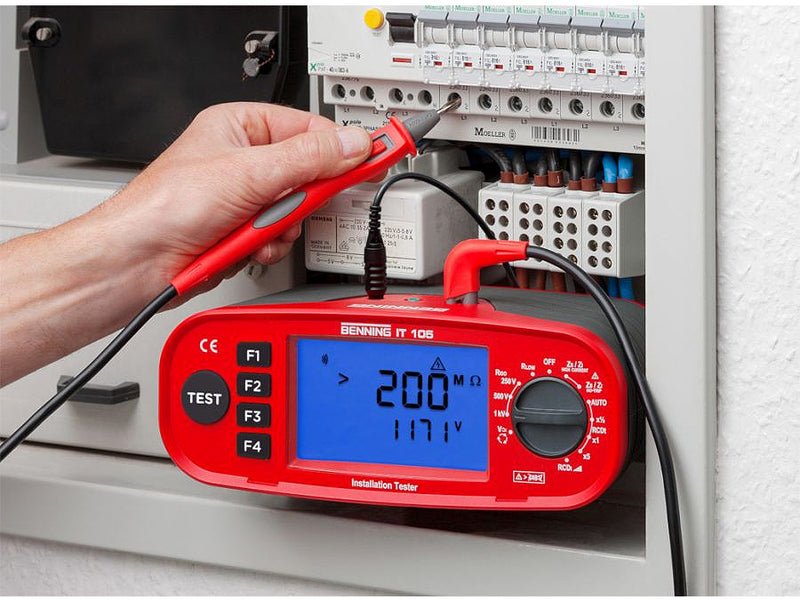

Easy and efficient tests of electrical installations after construction, modification, or periodic inspection according to IEC 60364.
FEATURES
> Insulating resistance with testing voltages of 250V, 500V, and 1000V loop impedance (L-PE) without RCD tripping (NO-TRIP) with simultaneous display of the fault current (PFC)
> Voltage, frequency measurement (up to 440V), and phase sequence testing
> Line impedance (L-N/L) with high testing current (HIGH CURRENT) with simultaneous display of the short-circuit current (PSC)
> Easy operation, all measuring functions can be selected directly by means of a rotary switch
> Test probe with TEST key for starting the measuring process
> Large LC display with illumination
> AUTO start function for low-impedance, loop, and line impedance measurements
> LOCK function (permanent measurement) of the insulating resistance
> Compensation (null balance) of the measuring leads up to 10 ?
SPECIFICATIONS
Display: graphic display (illuminated)
Low-impedance resistance: 0.15? - 199?
Insulation resistance: 200k? - 199M?
Line impedance: 0.2? – 1999?
Loop impedance: 0.2? – 1999?
Short-circuit current: up to 26kA
RCD testing: tripping time (1/2x, 1x, 5x I?N, AUTO) tripping current (ramp)
Testing current: sinusoidal(AC), pulsating(A) 10/30/100/300/500mA
Phase sequence
Voltage, frequency: 1V - 440V, 45Hz - 65Hz
Powered by 6 x 1.5V LR6 AA batteries (included)

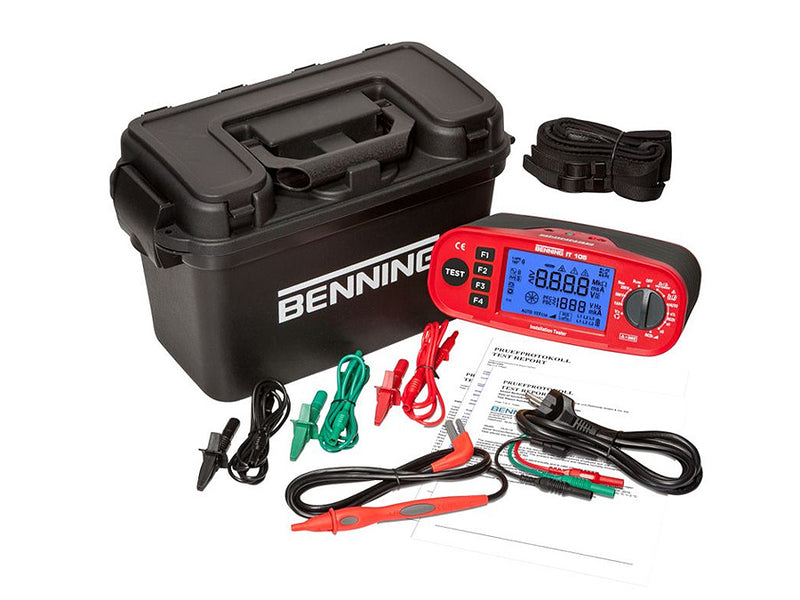

WHAT YOU GET
1 x Installation Tester 105
1 x Test probe with test key
1 x Set of measuring leads/alligator clips
1 x Test cable with shock-proof plug
1 x Carrying strap
1 x hard-top case
6 x Batteries
Calibration Certificate
