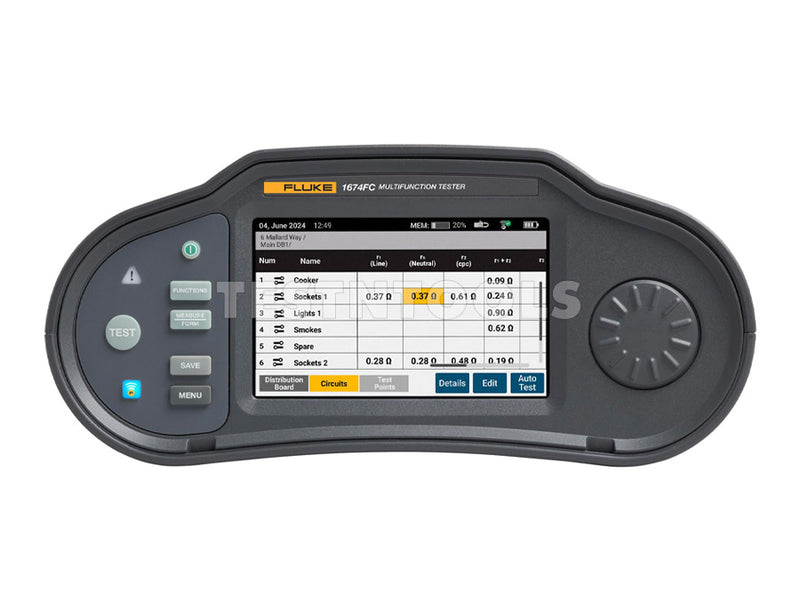

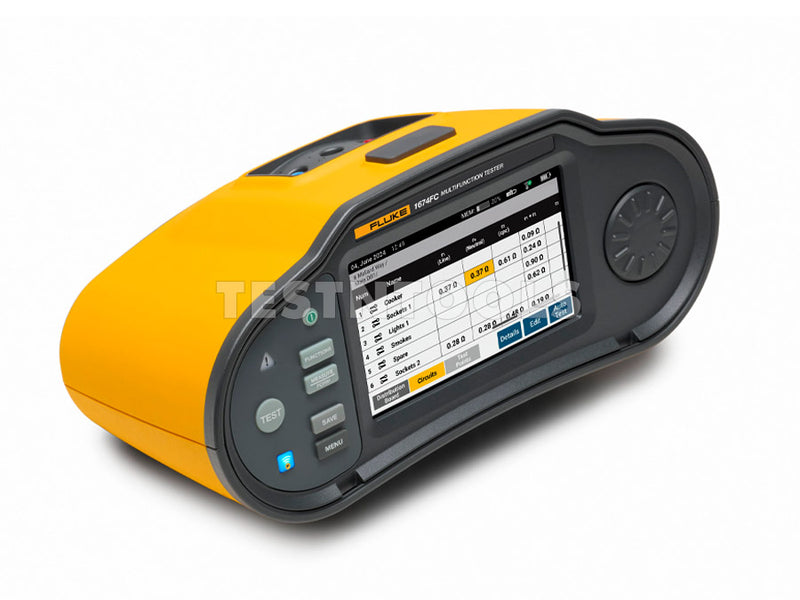

Fluke 1674FC Multifunction Installation Tester

PRICE INCLUDES GST

The Fluke 1674FC Multifunction Tester With FC (Fluke Connect) Tools & RMT Test allows New Zealand registered electricians to perform to the next level streamlining test set up the minimum tests required on an electrical installation as per AS/NZS 3000;2007 Electrical installations - Wiring Rules, section 8.

FC - Fluke Connect, Bluetooth connection to your phone, tablet, laptop, etc.

RMT - Remote Monitoring Test. The RMT functionality in tools like the Fluke 1674FC allows technicians to test, document, and manage results, often using Fluke Connect to send data to a smartphone or the cloud.

> Earth continuity test 8.3.5
> Insulation resistance 8.3.6
> Polarity test 8.3.7
> Correct circuit connections test 8.3.8
> Earth Fault Loop Impedance (EFLI) 8.3.9
> Operation of RCD's test 8.3.10

The 1670 Series Multifunction Installation Testers deliver full functionality and advanced measurement capabilities for professional installers. Its rugged design allows verification of electrical installation safety in domestic, commercial, and industrial applications.

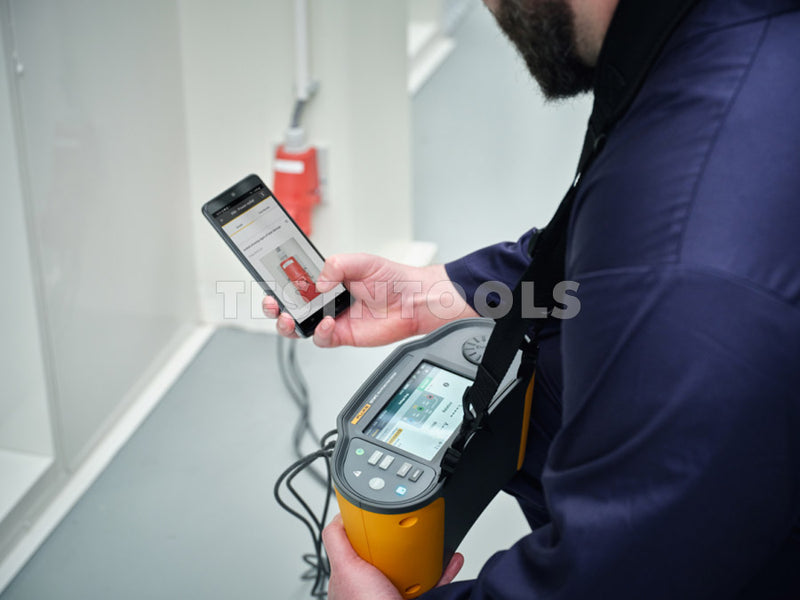

The Fluke 1674FC enables faster testing, reduced documentation time, and ensures complete confidence in the accuracy and reliability of your data. With integrated data management and wireless connectivity, seamless data transfer and remote access are effortless.

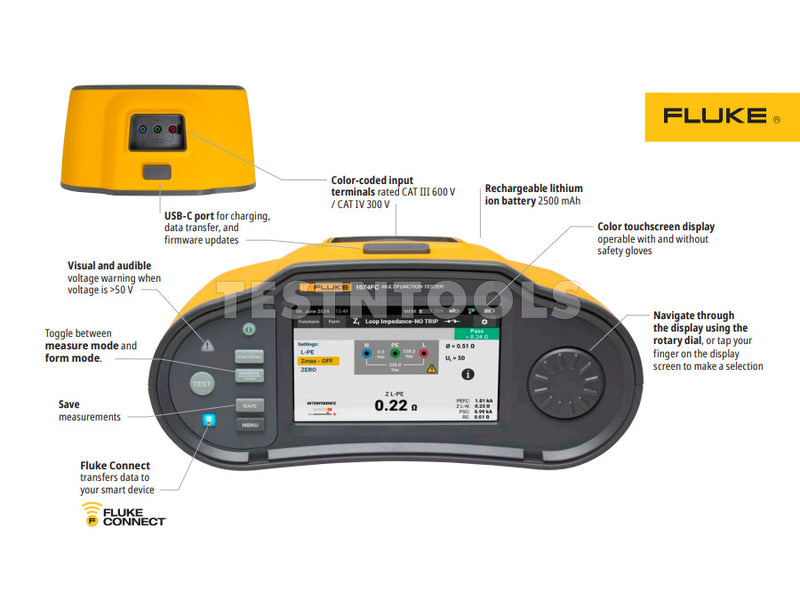

FEATURES
> Multifunction tester with FC Tools & RMT Test
> Simple bidirectional user interface eliminates complex multi-level menus
> Easy setup with the full-color touch screen, smart device, or a PC
> 30% faster testing compared to manual testing
> 50% faster reporting and documentation based on customer interviews
> Insulation PreTest functionality
> Optimized software and reporting
> Fluke Connect compatibility (1673 FC and 1674FC)
> Newly designed professional hard case
> Field-upgradable to accommodate regulation changes
> Compact and lightweight with a padded neck strap to free your hands
> Rechargeable 2,500 mAh Li-ion battery
> Standard USB-C fast charging Port
> Auto Test sequence and Earth resistance (1673 FC and 1674FC)
> Insulation Monitoring Devices (IMD) tests
> Surge Protection Device (SPD) functional test (1674FC)
> Voltage drop measurement function.
> Z Max memory for loop tests to support easy evaluation of the highest loop test value (1673FC and 1674FC)
> Unique zero adapter for fast, reliable, and accurate test lead and mains cord compensation.
> Simultaneous readings of voltage measurements between L-N, L-PE, and N-PE using the mains cord.
> RCD trip current and trip time measurement in parallel (RCD type AC, A, B, F and GFCI).
> PEFC or PSC and loop impedance measurements in parallel, displayed together on a dual display
> Ring testing to select input sockets without exchanging test leads
> Continuity testing with low test current (10 mA) to measure motor windings
> Earth Volt Touchpad detects raised earth voltages >50 V, indicating potentially hazardous conditions
> High current loop mode for faster measurements than loop tests with non-trip mode for RCD-protected circuits

KEY SPECIFICATIONS
AC DC voltage range 600 V
  Resolution 0.1 V
  Input impedance 320 k ohms
  Overload protection 660 V
Frequency 45-66 Hz
  Resolution 0.1 Hz
  Input impedance 320 k ohms
Continuity testing (RLO) auto-ranging  20 / 200 / 2000 ohms
  Resolution 0.01 / 0.1 / 1 ohms
  Open Circuit Voltage > 4 V
Insulation resistance test voltages 100 / 250 / 500 / 1000 Volts
Insulation safety pretest: Connections from the Tester to L, N, and PE are required
Insulation pretest Surge Protection Device (SPD) Insulation RAMP Test (Varistor Test) IEC 61643-11
  Test Voltage 500 V / 1000 V
  Voltage Ranges: Step Ramp 0 V to 500 V / Step Ramp 0 V to 1000 V
  Resolution 1 V
  Test Current 1 mA
  Accuracy ± (1.5% + 3 digits)
Insulation Monitoring Devices (IMD) IEC 61557-8 (1674FC)
  Range 1k to 10k / 10k to 100k / 100k to 3 M ohms
  Resolution 1k / 10k / 100 k ohms
  Note: >1 M ohms only available with voltages >100 V

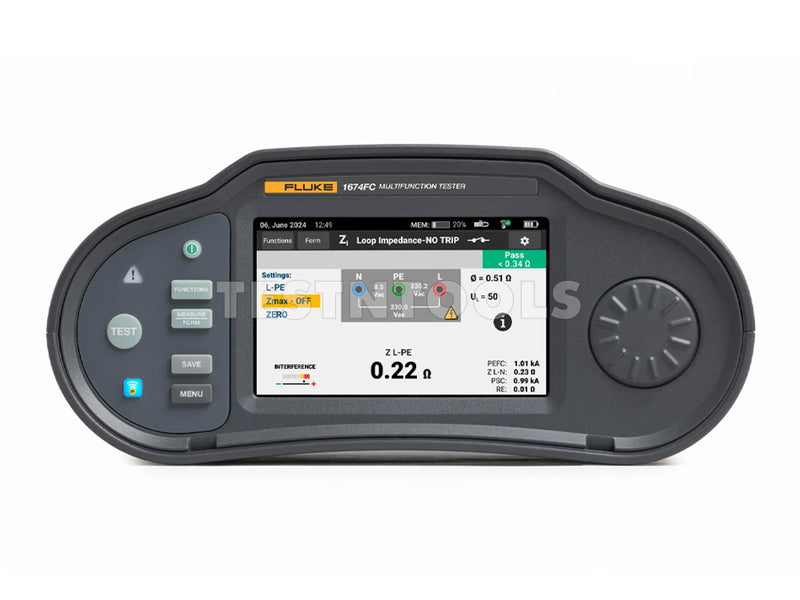

Loop and line impedance (ZI No Trip and Hi Current) range 10 / 20 / 200 / 2000 ohms
  Resolution 0.001 / 0.01 / 0.1 / 1 ohms
  Accuracy Hi Current m? mode: ± (2% + 15 digits) No Trip (2&3 wire) mode: ± (3% + 6 digits) / Hi Current mode: ± (2% + 4 digits) / No Trip mode: ± (3%) Hi Current mode: ± (2 %) / ± 6%[3]
Prospective Earth fault current (PEFC) Prospective Short Circuit Current (PSC) 0 kA to 50 kA
Voltage drop (by line impedance test) 0.0-99.9%, accuracy 0.1%
RCD types tested AC[2], AC, A[5], A, F, B, B+[7], B, B+, RDC-DD, RCD A/EV, RCD B/Mi[8], GFCI
RCD test multiplier x1/2, x1, x5 with ramp, auto test
RCD trip test current 10-1000 mA in 6 ranges
RCD Tripping Current (I Delta N) Measurement/Ramp Test 30% to 110% of rated RCD current
Earth resistance test (RE) 1673 FC and 1674 FC only 200 / 2000 ohms
Safety rating CAT III 600 V, CAT IV 300 V
Protection class IP40

Battery powered BP290 Li-ion 10.8V, 2500mAh
Weight including batteries 1.6Kg
Size 262.5mm x 141.9mm x 119.3mm

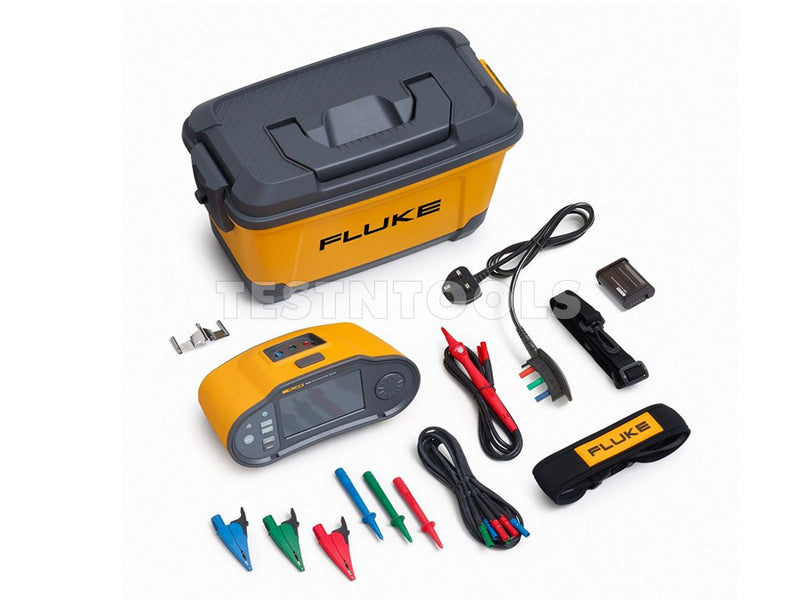

WHAT YOU GET
> Multifunction installation tester
> Heavy duty mains cord with single input connector
> Hard case
> Remote control probe
> Hanging strap
> Zero adapter
> Test leads and probes
> Alligator clips
> Li-Ion battery
> User manual
