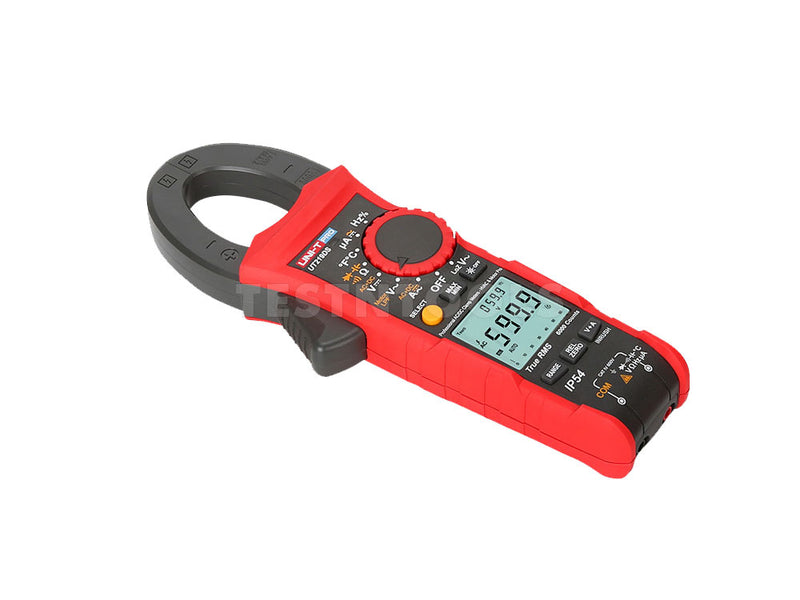

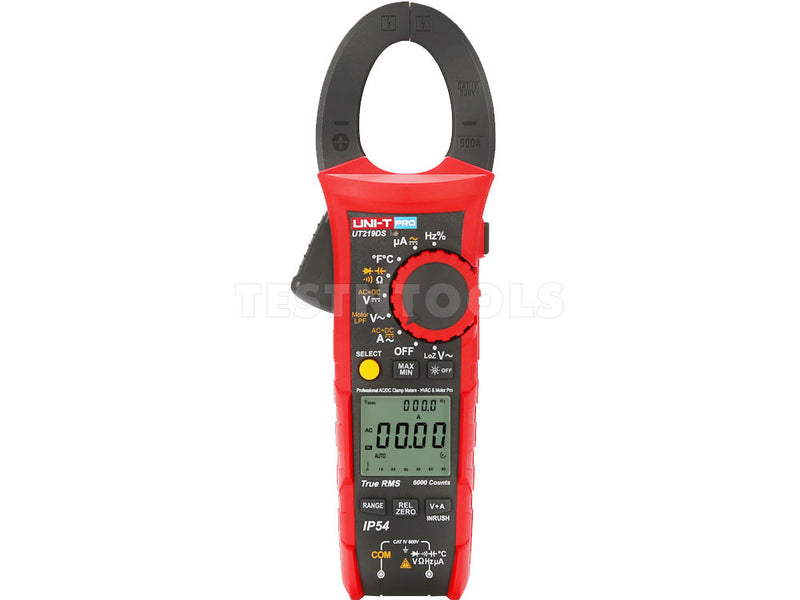

UNI-T True RMS Professional Clamp Meter With LoZ 600A AC DC UT219DS

The UT219DS is 600A True RMS Professional Clamp Meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

FEATURES
- True RMS
- AC+DC voltage
- LoZ input for ghost voltage measurement
- V+A dual LCD display
- Flashlight and auto backlight
- 2 metre drop test
- 3-phase motor sequence test
- Temperature and uA measurement (flame sensor)
- Auto/Manual range, 3 times/s sampling rate
- Data hold, max/min, relative modes
- Auto power off
- ZERO mode
- Low battery indication
- GS certified

SPECIFICATIONS
Jaw opening 33 mm
AC current 600A ±(1.8%+6)
DC current 600A ±(1.8%+6)
AC voltage 1000V ±(1%+6)
DC voltage 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance 60M? ±(1%+3)
Capacitance 60mF ±(4%+7)
Frequency 600Hz~40MHz ±(0.1%+6)
Temperature -40C ~ 1000C ±(2%+5C)
AC current/voltage frequency response 40Hz~400Hz
Diode test 3V
IP rating IP54

Powered by 3 x 1.5V (R03)
Size 234.6mm x 82mm x 47mm
Weight 310g

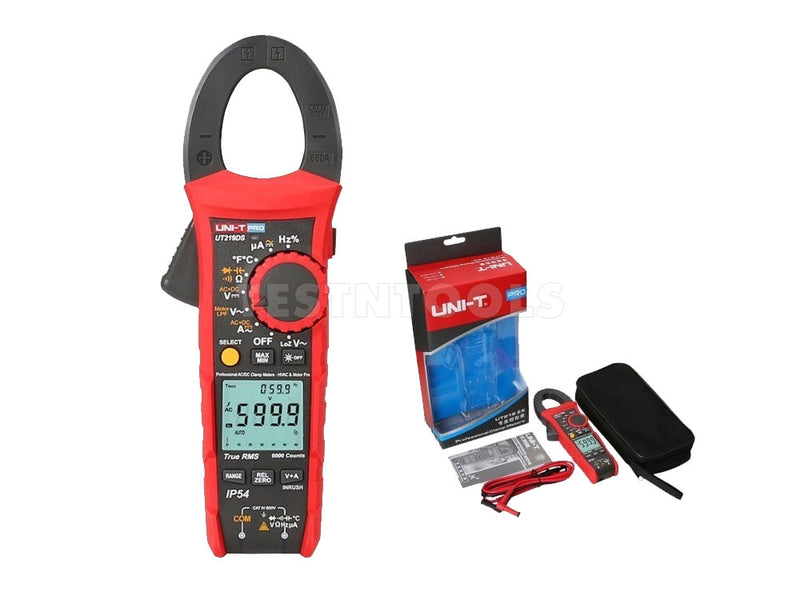

WHAT YOU GET
1 x UT219DS Digital Clamp Meter
1 x Point Contact Temperature Probe
1 x Test Leads
3 x Batteries
PC Software CD
Carrying Bag
User Manual


Warranty 12 months
