AccuTools products are designed with accuracy and precision to meet real challenges of the HVAC/R, Automotive, Industrial and Test and Measurement markets. With patented and proprietary technologies, products lead the market in gas leak detection, scale and vacuum gauge technology.
The The BluVac+ Series of Micron Gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.
BluVac+ Micro Wireless Digital Micron Gauge can be operated stand-alone or in conjunction with an iOS or Android compatible app.
FEATURES
- Bluetooth Smart Wireless Capability
- Measures vacuum in microns, pascals, millibar, mmHg, and Torr
- Large, high-visibility back-lit LCD display
- Instant warm-up time and response time
- Wide operating temperature range operates below freezing
- Automatic oil sensor
- Rugged, compact design that fits in a shirt pocket
- Calibration self test
- Can be field calibrated with no special equipment
- Sensor withstands overpressure up to 500 PSI
- Ideal for HVAC/R Service, Industrial, and Scientific Use
- Anodized aluminum captured dust cap for weight and durability
- US Patent Nos: 8,504,313 and 8,768,633
- Made in USA
ANDROID & APPLE APP FEATURES
- View vacuum on digital gauge or graph
- Leak check feature
- Record evacuation process
- Export as graphical PDF
- Export as comma-delimited CSV

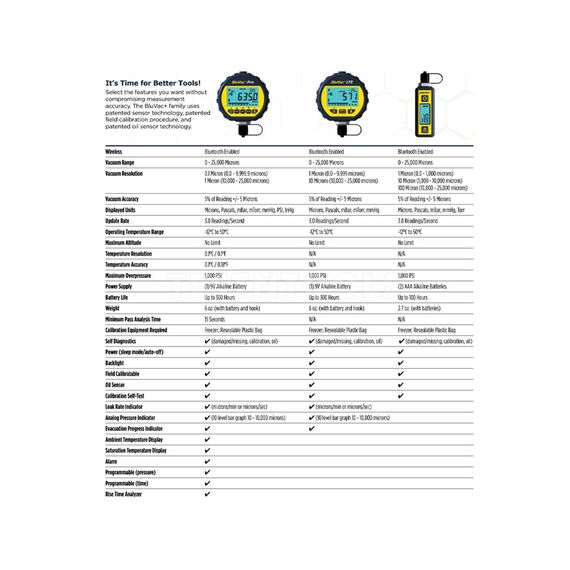

SPECIFICATIONS
Range 0 25,000 microns (3330 Pa, 33.3 mBar, 25 mmHg, 25 Torr)
Vacuum Accuracy ±5% of Reading ± 5 microns
Vacuum Resolution 1 micron (0.0-1000 microns), 10 microns (1,000-10,000 microns), 100 microns (10,000-25,000 microns)
Maximum Overpressure 1000 PSI
Battery Life up to 100 hrs
Operating Temperature 10°F 122°F (-12°C 50°C)
Vacuum Port Fitting 1/4" male flare
Powered by 2 x 'AAA' Alkaline Batteries
Size 110mm x 33mm x 25mm
Weight 77g
WHAT YOU GET
1 x BluVac+ Micro Wireless Digital Micron Gauge
1 x 1/4" Female Flare Coupler
2 x Batteries
Storage/Carrying Pouch
Manual
Warranty 12 months
Model AT-A10730
