AccuTools products are designed with accuracy and precision to meet real challenges of the HVAC/R, Automotive, Industrial and Test and Measurement markets. With patented and proprietary technologies, products lead the market in gas leak detection, scale and vacuum gauge technology.
The The BluVac+ Series of Micron Gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.

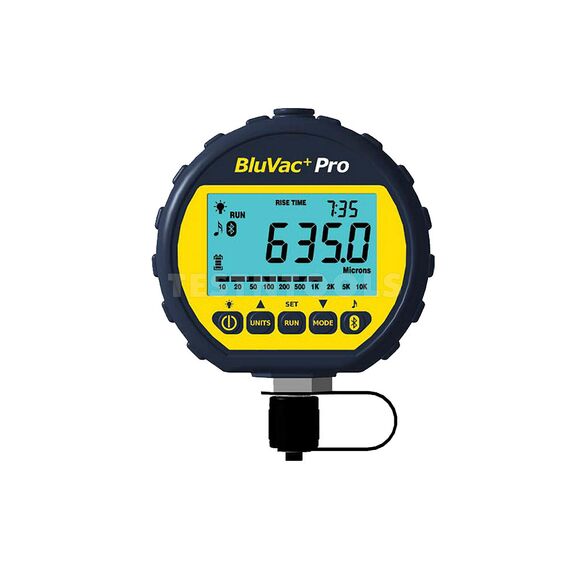

BluVac+ Pro Wireless Digital Vacuum Gauge can be operated stand-alone or in conjunction with an iOS or Android compatible app.
FEATURES
- Bluetooth Smart Wireless Capability
- Measures vacuum in microns, pascals, millibar, mmHg, and Torr
- Large, high-visibility back-lit LCD display
- Vacuum Leak Rate, Ambient Temperature, and Saturation Temperature Indicator
- Programmable Evacuation and Rise Time Analyzer with unique alarm feature
- Evacuation progress indicator
- "Analog" Vacuum Level Bar Graph
- Measures temperature in Fahrenheit and Celsius to 0.1°
- Automatic Oil Sensor
- Built-in memory retains all previous settings
- Calibration self test
- Instant Warm-up Time and Response Time
- Long battery life
- Rugged, compact design - about the size of a manifold gauge
- Anodized aluminum captured dust cap for weight and durability
- Ideal for HVAC/R Service and industrial use
- US Patent Nos: 8,504,313 and 8,768,633
- Made in USA
ANDROID & APPLE APP FEATURES
- View vacuum on digital gauge or graph
- Bar graph vacuum indicator
- Automatic notifications of evacuation process
- Leak check feature
- Record evacuation process
- Export as graphical PDF
- Export as comma-delimited CSV
SPECIFICATIONS
Range 0 25,000 microns (3333.1 Pa, 33.331 mBar, 25,000 mTorr, 25.000 mmHg,
0.48341 PSI, -28.037 inHg)
Vacuum Accuracy ±5% of Reading ± 5 microns
Vacuum Resolution 0.1 micron (0.0 to 9,999.9 microns), 1 micron (10,000 to 25,000 microns)
Maximum Overpressure 1000 PSI
Temperature Accuracy 0.2°F (0.1°C)
Temperature Resolution 0.1°
Battery Life up to 300 hrs
Operating Temperature 10°F 122°F (-12°C 50°C)
Vacuum Port Fitting 1/4" male flare
Powered by 9V Alkaline Battery
Size 90mm x 75mm x 30mm
Weight 200g
WHAT YOU GET
1 x BluVac+ Professional Digital Wireless Vacuum Gauge
1 x Brass Coupler
1 x Battery
Protective Rubber Boot
Detachable Swivel Hook
Manual
Warranty 12 months
Model AT-A10702
