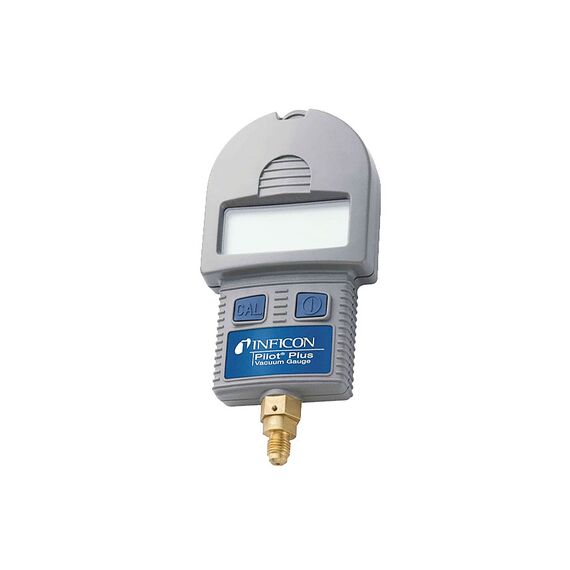

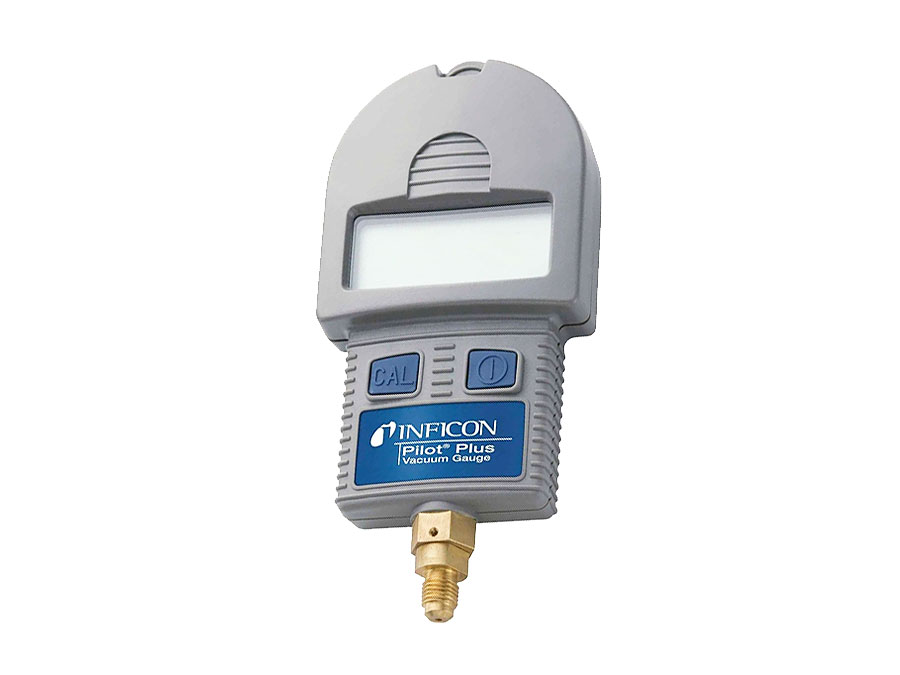

Inficon Pilot Plus Digital Vacuum Gauge 710-202-G21

INF-710-202-G1
$1,18590
Out of stock
Shipping Information
Find similar
Description

Inficon Pilot Plus Vacuum Gauge is the only gauge to use a Pirani sensor for greater accuracy and the ability to measure the entire vacuum process, from atmosphere down to one micron.

FEATURES
> Operates for 45 hours on one 9V battery
> Quick calibration specific to local pressure
> Displays in micron, Pascal, Torr or millibar
> Low battery indicator
> Innovative filter protects sensor, eliminates the need for cleaning
> Measures from atmosphere to 1 micron
> Auto shut-off after 60 minutes to conserve battery
> Only vacuum gauge using a Pirani sensor for better accuracy
> Large, easy-to-read LCD display
> For vacuum measurement in HVAC/R service
> Made in the USA

SPECIFICATIONS
> Type Pilot Plus
> Battery life 45 hours
> Battery 9V alkaline
> Controls On/off, unit selection, quick calibration
> Display units microns, Pascal, millibar, Torr
> Display range: atm (760,000 microns) to 1 micron (0.01 mbar, 0.001 Torr, 1 Pa)
> Auto shut-off: After 60 minutes; last reading displayed when restarted
> Maximum overpressure: 150 psi (7.76 x 106 microns) (10 bar)

WHAT YOU GET
1 x 710-202-G1 Vacuum gauge
1 x 9V Battery
Filters
Storage case
User manual
