SPECTROLINE is the world's leading manufacturer of ultraviolet technologies and fluorescent leak detection products trusted by companies around the world since 1955. The ultraviolet products and fluorescent dyes are used for preventive maintenance around the world, protecting systems ranging from vehicles to industrial manufacturing operations.
The BigEZ Complete Fluorescent Leak Detection Kit is the revolutionary way to add dyes into air conditioning and refrigeration systems without the use of additional refrigerant, manifold, and additional hoses.
FEATURES
- No pouring and no refrigerant required for injection
- Easily overcomes system pressure
- Add fluorescent dye with system off or running
- It can treat 64 medium-sized AC&R systems or 32 large-sized systems
- Each cartridge is clearly labelled with dye dosage marks
- Inject dye with a turn of the handle
- One calibrated cartridge provides exact dosing for multiple systems
- Compatible with CFCs, HCFCs, and HFCs
- Made in the USA
SPECIFICATIONS
Dye: Universal/POE
Inspection range: 25 ft
Refrigerant: up to 400 lbs (181 kgs)
Lubricant: up to 16 gal (61 l)
Cooling: up to 150 tonnes (527.5 kW)

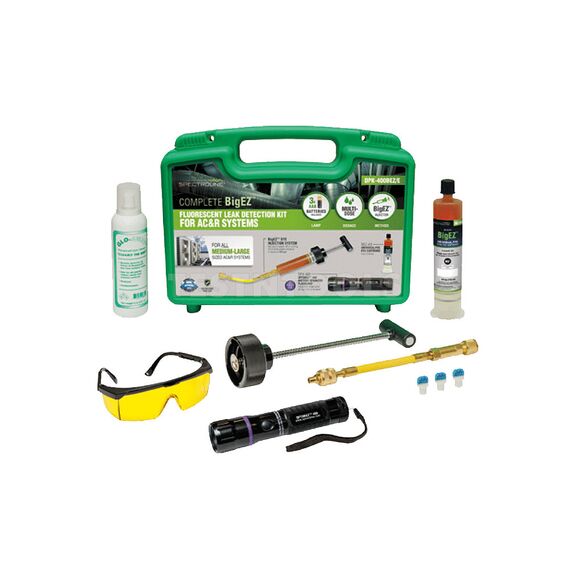

WHAT YOU GET
1 x SPE-HVL-CS violet light LED
1 x SPE-BEZ4E 4 oz (118 ml)

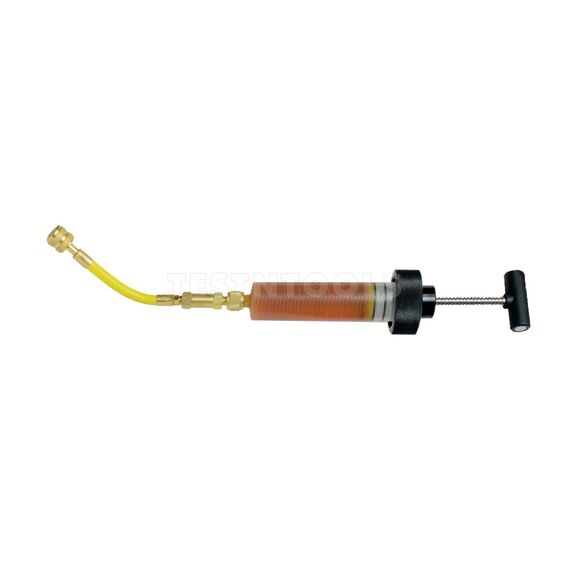

1 x RP-BEZ-50 BigEZ
1 x RP-BEZ-25 8" (200 mm) Hose/coupler with check valve, low-loss and purge fittings
3 x drip plugs for hose/coupler
8 oz (237 ml) GLO-AWAY dye cleaner
Fluorescence-enhancing glasses
Carrying case
User manual
Warranty 12 months
Model OPK-400BEZ/E / SPE-HVLBEZE / SPE-OPK-400BEZ/E
HOW IT WORKS

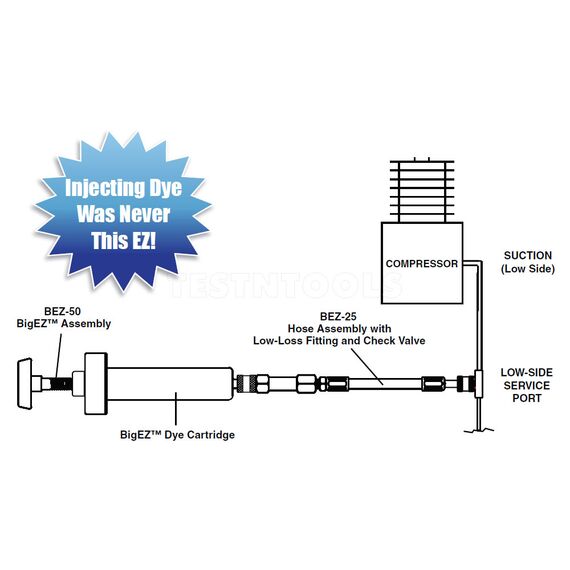

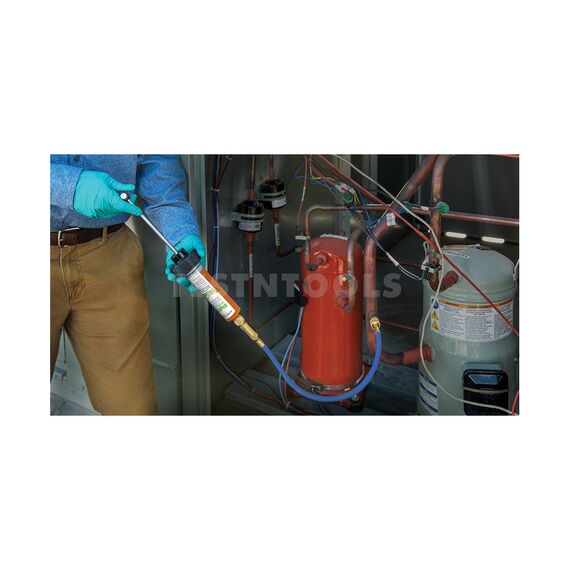

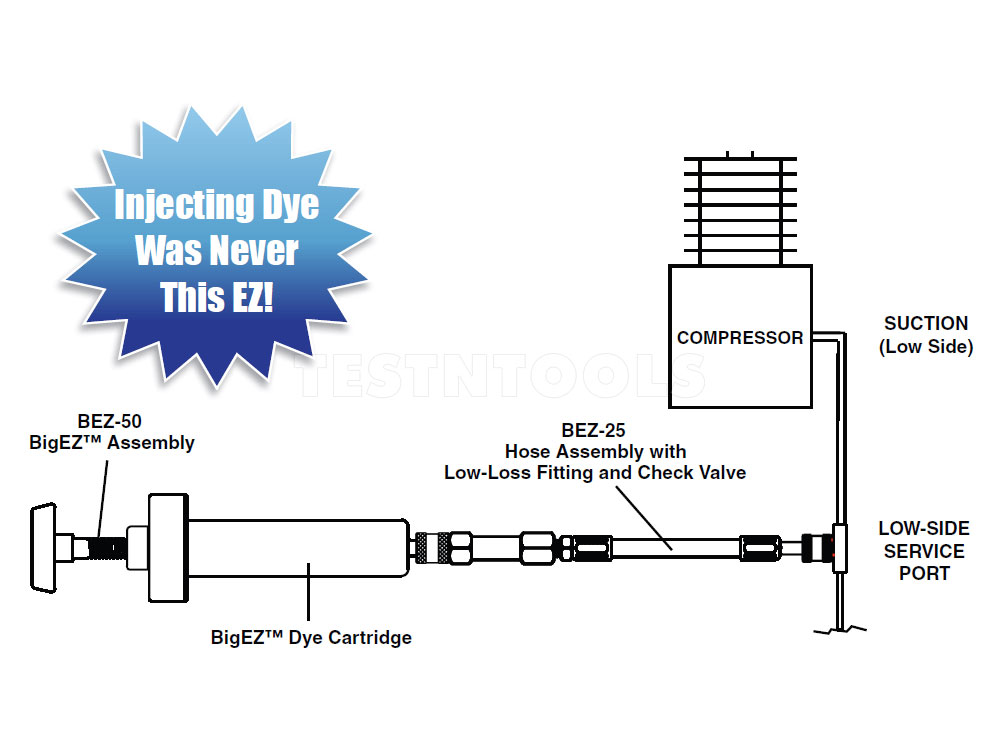

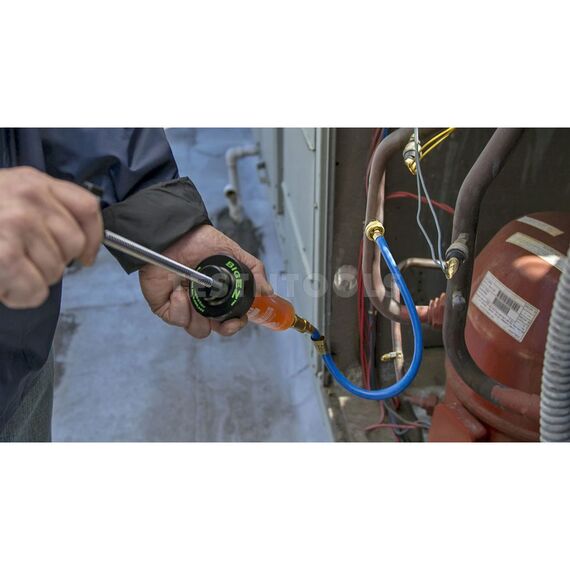

1. Install the cartridge, then connect the injector hose to the system’s low-side service port. Turn the handle to inject the exact amount of dye required and let it circulate.

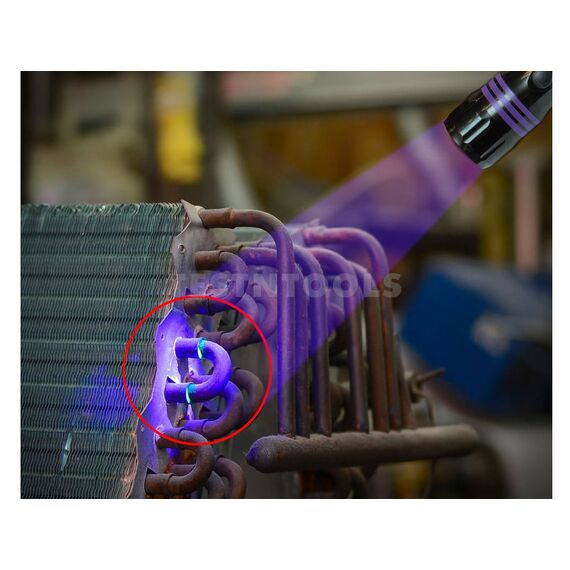

2. Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
