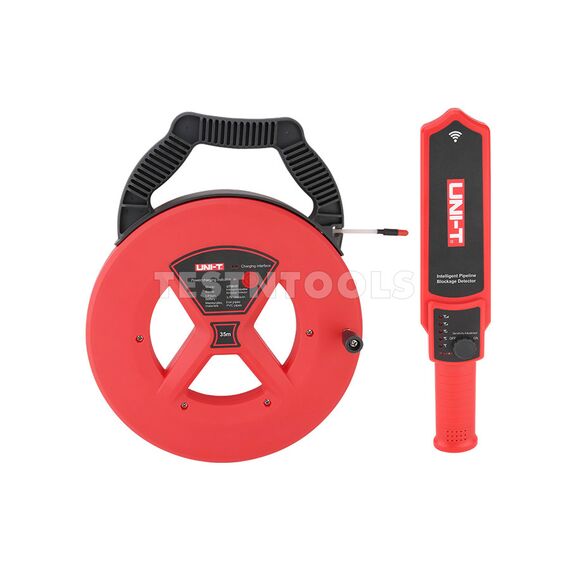

UT661D - Your Pipeline Saviour! With a nose for trouble, it swiftly sniffs out blockages up to 500mm away with its signal wire dives deep, reaching 35m into pipelines. Easy operation and compatibility with steel, iron, and PVC pipes make the UT661 series a must-have for pipeline maintenance!
FEATURES
> The location of the blockage in the pipe can be detected
> Measurable pipe material: plastic pipes, metal pipes
> Maximum detection distance (depth) 50cm
> Buzzing prompt, Flash prompt, Low battery indication
> With transmitter and receiver
> Probe waterproof IP67
SPECIFICATIONS
Signal wire 35m
Maximum detection distance（depth) 50cm
Transmitter current
Shutdown current <2uA
Working current 230 ~ 310mA
Receiver current
Shutdown current <2uA
Standby current <40mA
Maximum working current: 150 ~ 450mA (Distance 1cm)
Charging current 450 ~ 550mA
Test the output sound at a distance of 1cm >93dB
Test the output sound at a distance of 0.5m >75dB
Battery duration 10 hours
Operating temperature and humidity -20°C ~ 60°C, 10 ~ 80%RH
Waterproof grade Probe waterproof IP67
Powered by
Transmitter battery Built-in lithium battery (3.7V 1800mAh)
Receiver battery Built-in lithium battery (3.7V 1800mAh)
Size
External dimension Tansmitter 38mm xm30mm x 42mm
Receiver 40mm x 38mm x 80mm
Weight 1.7kg
WHAT YOU GET
1 x UT661D Pipeline Blockage Detector
1 x Charging cable
1 x Probe kit
User manual
Warranty 12 months
