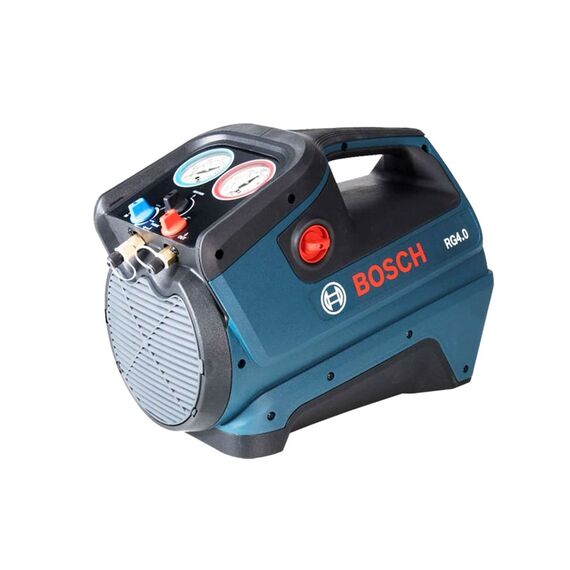

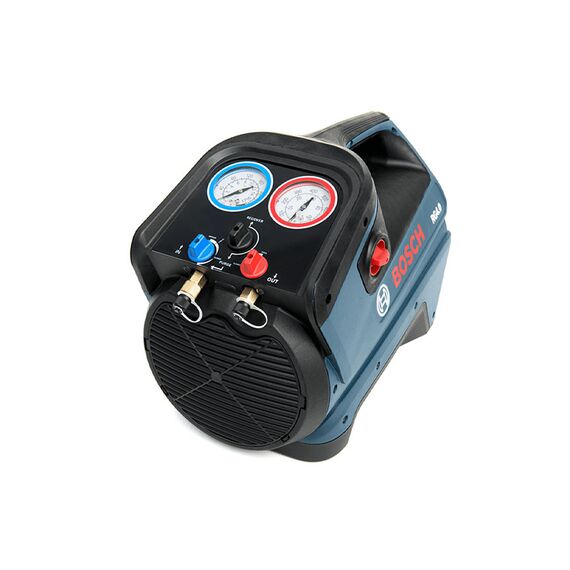

The Bosch RG4.0 high-pressure recovery unit is a tool for professional applications approved by International Standards. It offers simple single-switch operation and provides years of reliable use.
FEATURES
> Industrial rotary switch (double contacts)
> High-capacity IEC connection
> Push to reset circuit breaker
> Easy Condenser Maintenance
> Single-cylinder compressor stable, reliable and oil-less
> Handle over-moulded with rubber (TPE) for a reliable grip
> Bottom mount assembly and layout for enhanced serviceability
> Protective cover keeps dirt away from gauges and controls
> Electrical and refrigerant line connections on opposite ends
> Specially designed mounts and feet to provide stability, noise and vibration isolation
> High displacement electrical fan draws fresh air first through the condensor for improved recovery rates in extreme conditions
> Low-pressure switch for smooth operation. Cuts off when ideal vacuum level is reached thereby preventing unnecessary operation and reducing wear
> Automatic reset HP cut-out protects the equipment and operator
> Suitable for nearly all commonly used refrigerants like AHRI cat/Kat/cat. III, IV, V + A2L + A3
SPECIFICATIONS
Rated voltage RG4.0A 230 VAC +/- 10%
Rated frequency 50/60Hz
Power 1/2HP / 360Watt
Rated current RG4.0A 5A, RG4.0B 9A
Liquid capacity, maximum by push pull 410.5kg/hr
Liquid capacity, maximum capacity rates 122.1kg/hr
Gas capacity maximum 10.7kg/hr
Single-cylinder, oil-less compressor
Safety pressure switch with automatic reset (38.5 bar)
Operating ambient temperature range 0 – 50°C
Maximum working pressure 38.5 bar
Dimensions 250 x 222 x 406mm
Weight 14.6 kg
Warranty 12 months
