SPECTROLINE is the world's leading manufacturer of ultraviolet technologies and fluorescent leak detection products trusted by companies around the world since 1955. The ultraviolet products and fluorescent dyes are used for preventive maintenance around the world, protecting systems ranging from vehicles to industrial manufacturing operations.
Spectroline UV lamps and radiometers are widely used to verify the structural integrity of military and commercial aircraft. Spectroline fluorescent dyes are used to check for fluid leaks in power plants, nuclear reactors, oil pipelines, and industrial facilities worldwide, and were even used on the U.S. Space Shuttle.
The BigEZ Dye Injection System is for Medium to Large Size Systems. The revolutionary way to add fluorescent dyes into air conditioning and refrigeration systems without the use of additional refrigerant! Ideal for preventive maintenance programs and for multiple, medium to large AC&R units.
FEATURES
- For all AC/R systems
- No pouring, no refrigerant, no spills
- Clearly labeled with 32 calibrations
- Cost effective for medium to large size systems
- Check valve prevents the backflow of dye or refrigerant
- Allows easy storage of the hose/cartridge between jobs
- Prevents dye leakage or contamination
- Easily overcomes system pressure even with R-410A
- Inject dye with a turn of the handle
- Compatible with Mineral Oil, PVE, Polyol Ester and Alkyl Benzene Lubricant Systems.
- NSF Certified and meet food-grade processing requirements for category codes HTX-2 and HX-2
SPECIFICATIONS
Typical Application: For Medium to Large Size Systems
Amount of Oil in System: One per 1/2 gallon of Oil
Amount of Refrigerant: 1 per 5 tonnes
Dye Type: Universal/POE
Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Made in the USA

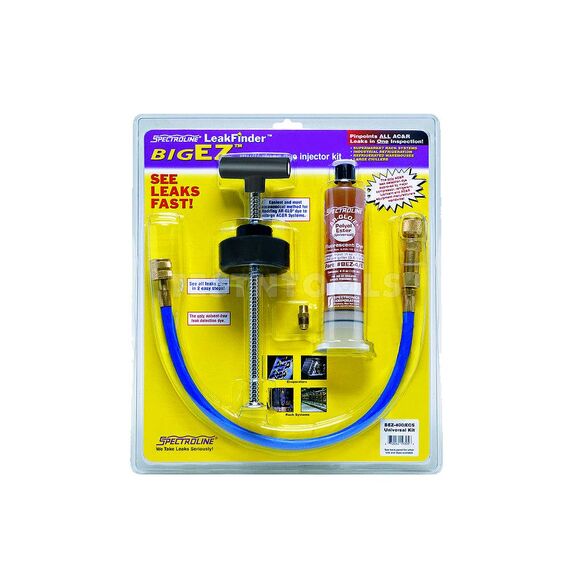

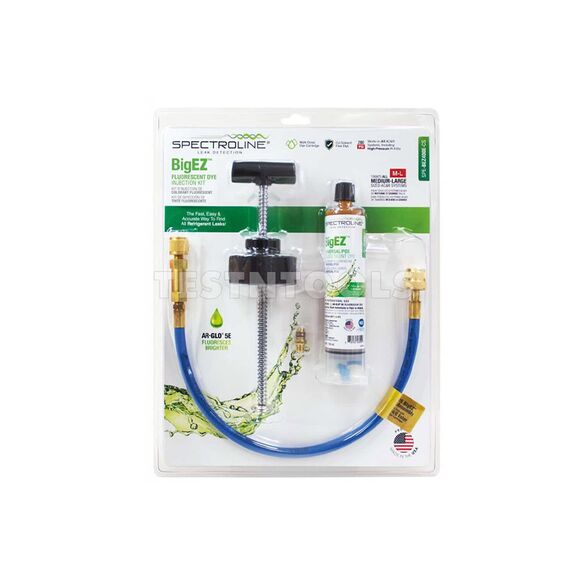

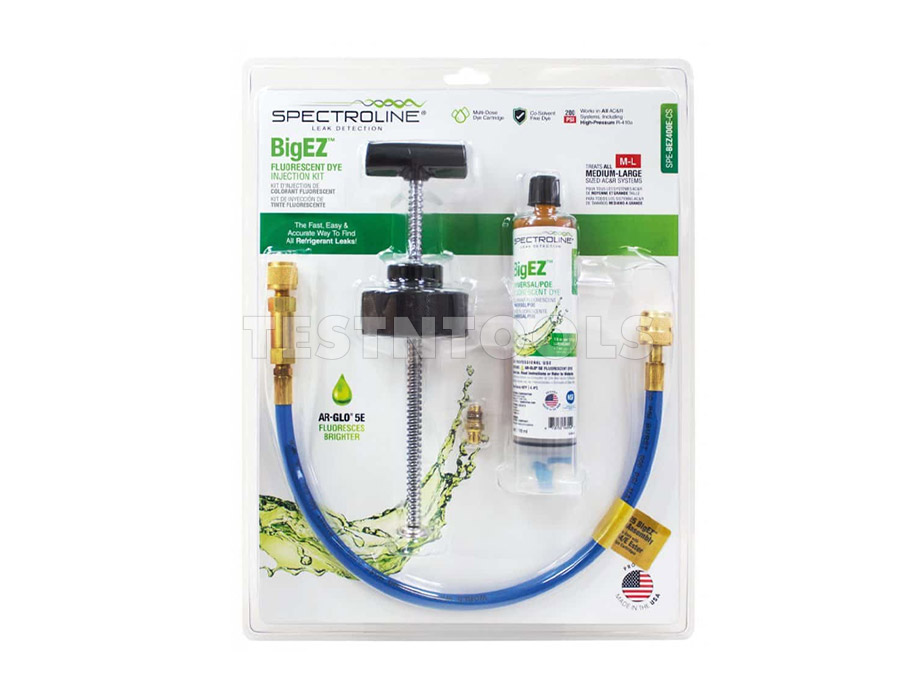

WHAT YOU GET
BigEZ Dye Injector
Universal/POE Multi-Dose 4 oz (118 ml) Dye Cartridge
Hose Assembly with Check Valve and Low-Loss Fitting
Warranty 12 months
Model BEZ-400/ECS
HOW IT WORKS
1. Install the cartridge, then connect the injector hose to the systems low-side service port. Turn the handle to inject the exact amount of dye required and let it circulate.
2. Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
