SPECTROLINE is the world's leading manufacturer of ultraviolet technologies and fluorescent leak detection products trusted by companies around the world since 1955. The ultraviolet products and fluorescent dyes are used for preventive maintenance around the world, protecting systems ranging from vehicles to industrial manufacturing operations.
Spectroline UV lamps and radiometers are widely used to verify the structural integrity of military and commercial aircraft. Spectroline fluorescent dyes are used to check for fluid leaks in power plants, nuclear reactors, oil pipelines, and industrial facilities worldwide, and were even used on the U.S. Space Shuttle.
The EZ-Ject Individual Replacement Cartridge is the revolutionary way to add fluorescent dye into air conditioning and refrigeration systems without the use of additional refrigerant! Just one connection, then turn the handle to inject the dye. No complicated hookups! Ideal for preventive maintenance programs and for multiple, small AC&R units.
FEATURES
- For all AC/R systems
- No pouring, no refrigerant, no spills
- Cost effective for small to medium size systems
- Check valve prevents the backflow of dye or refrigerant
- Allows easy storage of the hose/cartridge between jobs
- Easily overcomes system pressure even with R-410A
- Inject dye with a turn of the handle
- Compatible with Mineral Oil, PVE, Polyol Ester and Alkyl Benzene Lubricant Systems.
- NSF Certified and meet food-grade processing requirements for category codes HTX-2 and HX-2
SPECIFICATIONS
Cartridge: 15 ml
Typical Application: For Medium to Large Size Systems
Amount of Oil in System: One per 7.6L of Oil
Amount of Refrigerant: 1 cartridge equals 11.3 Kg of Refrigerant or 12 tons of cooling
Lubricant: 2 gallons (7.6L)
Dye Type: Universal/POE
Type of Compressor Oil: POE, Alkylbenzene, or Mineral
Made in the USA
WHAT YOU GET

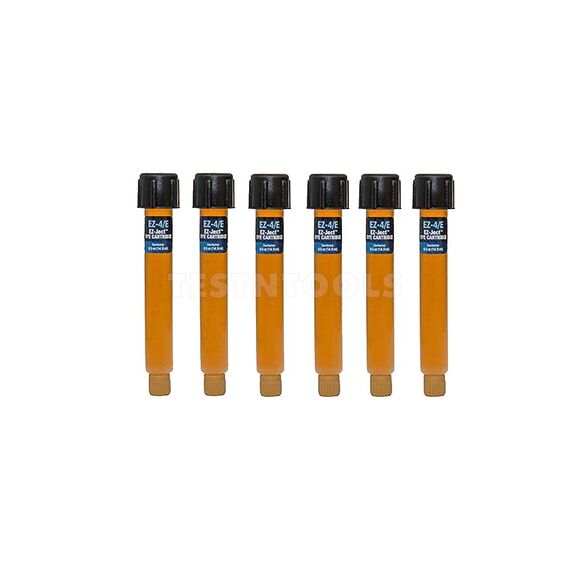

6 x Universal/POE Multi-Dose 15 ml Dye Cartridge
Warranty 12 months
Model SPE-EZ5E-P6
HOW IT WORKS
1. Install the cartridge, then connect the injector hose to the systems low-side service port. Turn the handle to inject the exact amount of dye required and let it circulate.
2. Scan the system with a Spectroline® inspection lamp. The precise location of all leaks will be shown by a bright, yellow-green glow.
