The Robinair VacuMaster vacuum pumps feature a two-stage rotary vane designed to provide powerful, quiet, high vacuum capability, and ensure moisture removal while the high pumping capacity reduces evacuation time.
The Robinair 15301 VacuMaster vacuum pump is designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants.
FEATURES
> Heavy-duty motor
> Top oil fill port
> Easy view sight glass
> Angled oil drain valve
> Lightweight and durable die-cast aluminium body
> Prevents foreign matter from entering the pumping chamber
> Reliable brass intake valves with Flare, ACME, or both style fittings with tethered caps
> Not for use with ammonia or lithium bromide systems
> Not for use with A2L or other flammable refrigerants
SPECIFICATIONS
Suction capacity: 84 l/min
Motor: 450W
Frequency range: 50 Hz
Supply voltage: 230/1/50 V/Ph/Hz
Ultimate vacuum: 15 microns
Stages: 2
Tube connection: 1/4" and 3/8" Bordel SAE MFL UNF
Oil capacity: 450ml
Power cord length: 1.8 metres
Dimensions: 335 x 140 x 255mm
Weight 9.5 kg

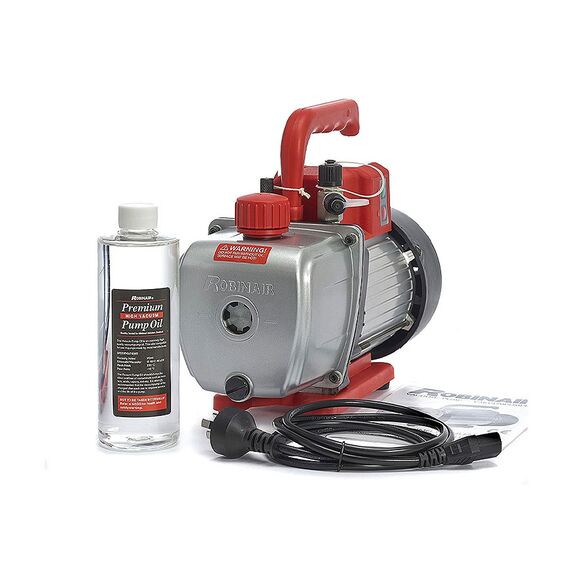

WHAT YOU GET
1 x RA-15301A-A Vacuum Pump
1 x Bottle oil
1 x Cord
1 x Manual
Warranty 12 months
