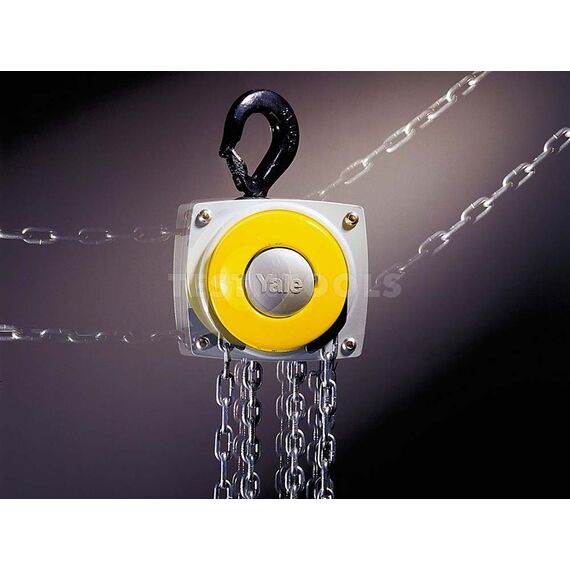

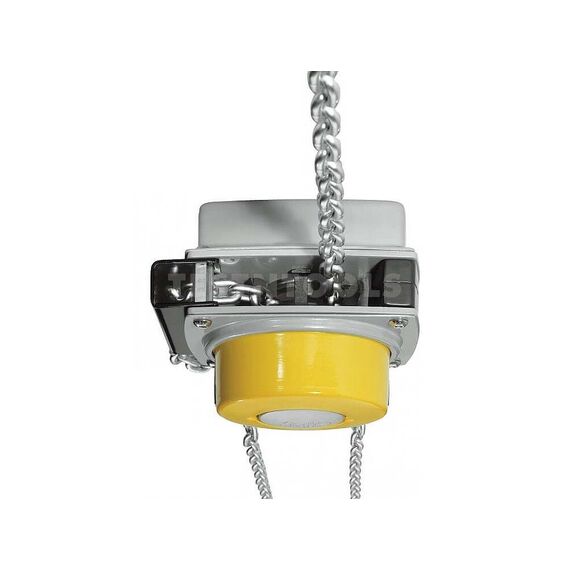

Yale Lift 360 Chain Block 2T x 3M YCB323

FEATURES
- Can lift or pull in all directions
- Possible to use the hoist for horizontal pulling or tensioning
- Extremely low headroom allows maximum use of the lifting height
- Chain guide and gearbox are almost totally enclosed
- Integrated push or geared trolley
- Adjustable overload protection
- Conventional load pressure brake
- Precisely matched load chain sheave
- Stainless steel chain and hook
- Stamped steel housing
- Patented rotating hand chain guide
- Made in Germany

SPECIFICATIONS
Capacity 2 Ton (2000 Kg)
Lift height 3m
Chain falls 1
Handle pull at WLL 32 daN
Chain dimensions (dxp) 8mm x 24mm
Weight (3m) 20 kg

OPTIONAL
Overload Protection Device
Corrosion Resistant Version
Chain Container

WHAT YOU GET
Yale Lift 360 Chain Block 2T x 3M YCB323
User manual
