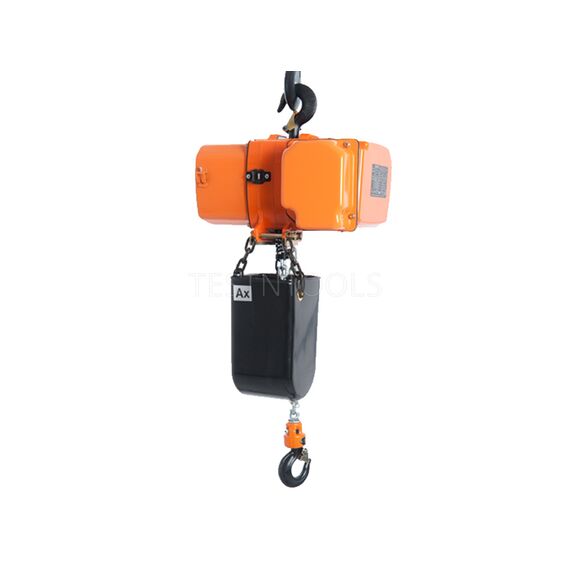

Hitachi Electric Chain Hoist 3m 5 Ton 3 Phase HEH500

THIS HOIST CAN BE SUPPLIED WITH A REMOTE CONTROL - CONTACT US TO DISCUSS YOUR NEEDS

FEATURES

• Full current and shunt limit switches operate in both directions of hook travel.
• Overload Limiter: this electro-mechanical device is exclusive to the Hitachi range and boasts a far more superior overload protection device than the slipping clutch method.
• Braking: all models are fitted with an electro-magnetic, self-adjusting disc type brake to the gearbox and the “F” models have an additional auxiliary centrifugal brake fitted to the motor
• Chain Bucket: noiseless design with flexible mounting
• High quality Grade 80 zinc or nickel plated load chain supplied as standard.
• IP54 protection rating on all electric hoists and trolleys.
• Motor thermal protection on all Hitachi models.
• Optional radio remote control with 1 or 2 transmitters.
• Ambient temperature requirement of -10 to 40 degrees.
• Class M4 inclusive of 180 starts per hour.
• Completely enclosed design. Entire mechanism including; the motor, dual brake system, gears, rotating parts and electrical system can be operated under severe conditions.

SPECIFICATIONS

• Rated Capacity 5 ton
• Lift Height 3m
• Speed m/min 2.8
• Motor 2.5kw 3 phase
• Weight 121kg
• Headroom 1020mm
• Duty Cycle 30%

Please contact us if you require a greater lift height, hoists can be modified to meet your criteria.
There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
