SHIPPING TO HOME AND RURAL DELIVERY ADDRESSES
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want this item delivered to a home or rural address then please get in touch with us for a quote before ordering.

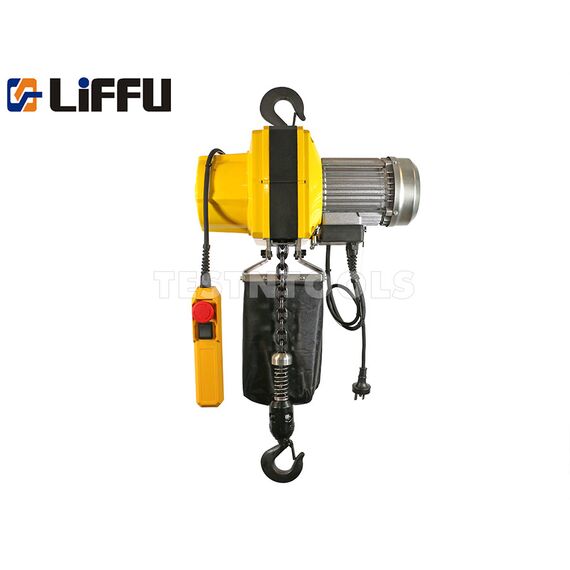

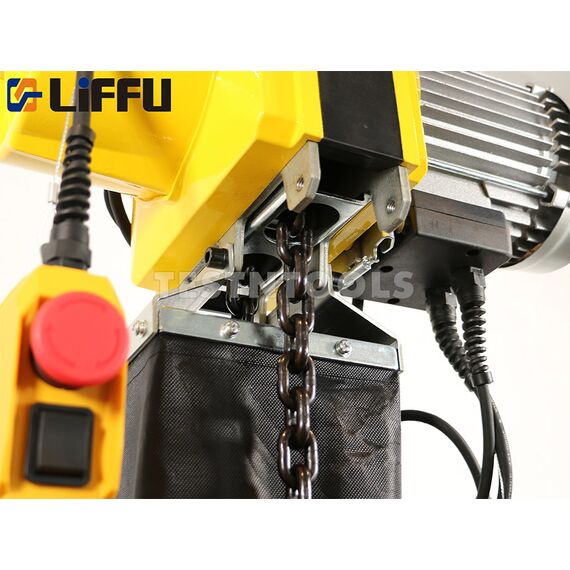

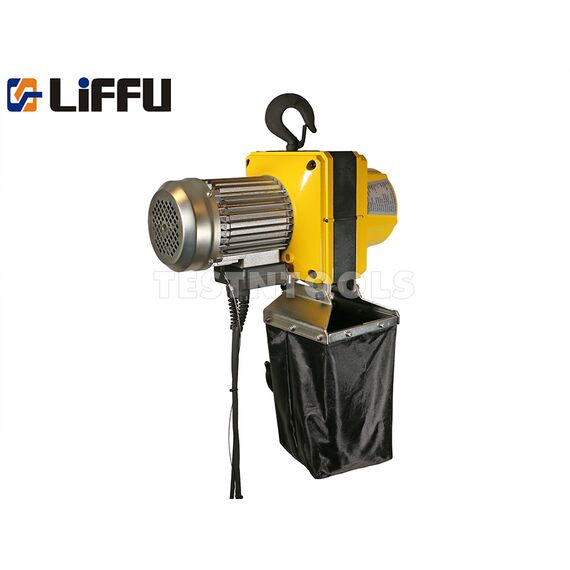

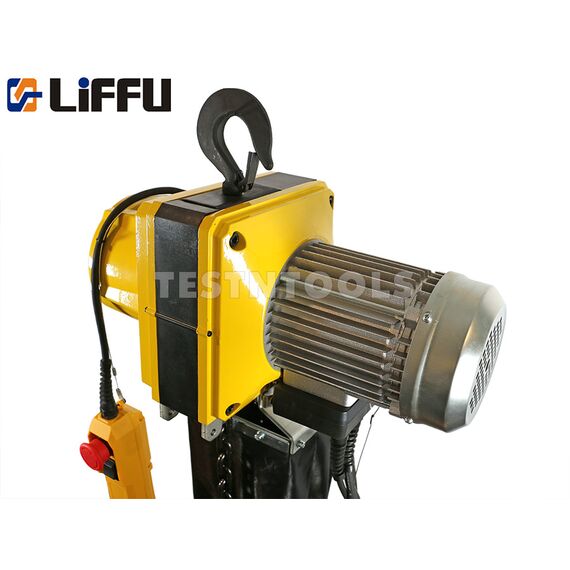

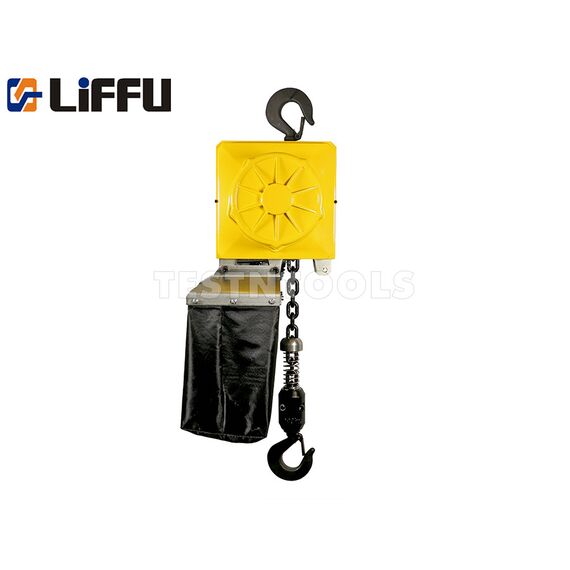

This electric chain hoist hooks onto an overhead i-beam or gantry trolley to make easy work of any lifting jobs you have around the workshop. No special mounting is required, just a loop or shackle for the top hook to attach to.
The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure. Its compact size and light weight compared to other 1 Ton hoists make it easy to install and move around if required.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Swivel hooks
SPECIFICATIONS
Capacity 1000Kg (1 Ton)
Lifting height 3m
Speed 3.2m/min
Hook to hook 480mm minimum
Single phase 230V 1100W
Pendant cable length 1.5m (extendable^)
Duty cycle S3 35% over 10 minutes
Overall size 430L x 260D x 620H mm
Weight 33Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric chain hoist
Chain bag and clips
User manual
NOTES
^ Requires installation of longer 4-core mains-rated cable by a registered electrician. We can do this for you, charges apply.
What's the difference between a WINCH and a HOIST?
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
