This hoist comes with everything except the chain. The chain is extra, we supply the length you need. This option is good if you need it longer than our standard 3m and 6m 500Kg hoists.
The chain can be purchased by searching "Hoist Load Chain"
LET US KNOW IF YOU ALSO NEED THE FOLLOWING
> The pendant cable extended longer than the supplied 5m.
> The chain bag upgraded which is recommended for chains over 7m.

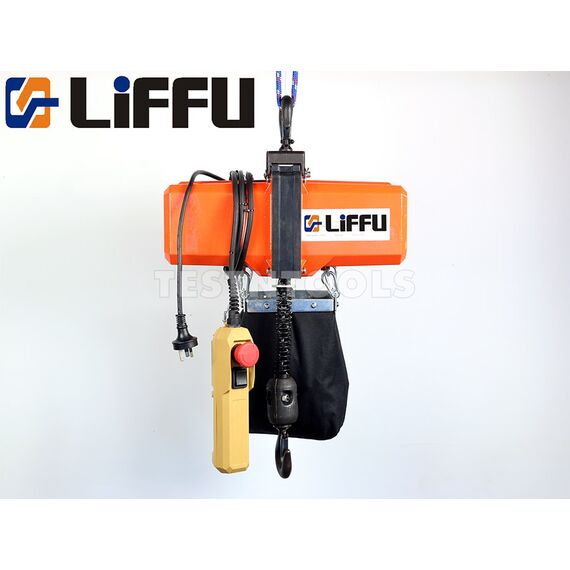

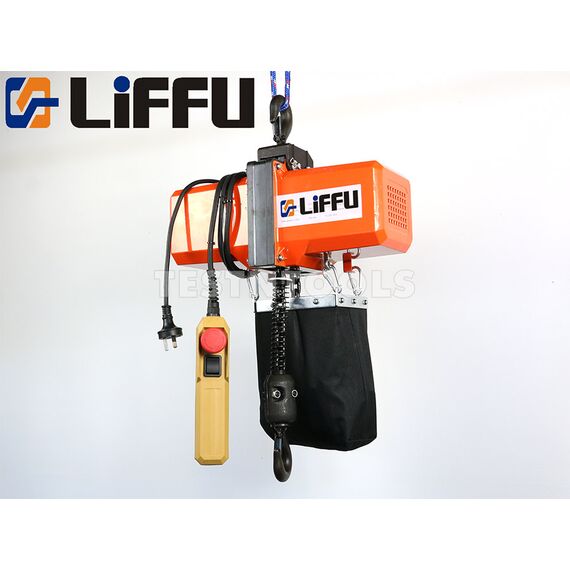

This electric chain hoist hooks onto an overhead i-beam or gantry trolley to make easy work of any lifting jobs you have around the workshop. No special mounting is required just a loop or shackle for the top hook to attach to.
The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure. Its small size and light weight make it very portable.
FEATURES
> Up/down switch
> Emergency stop

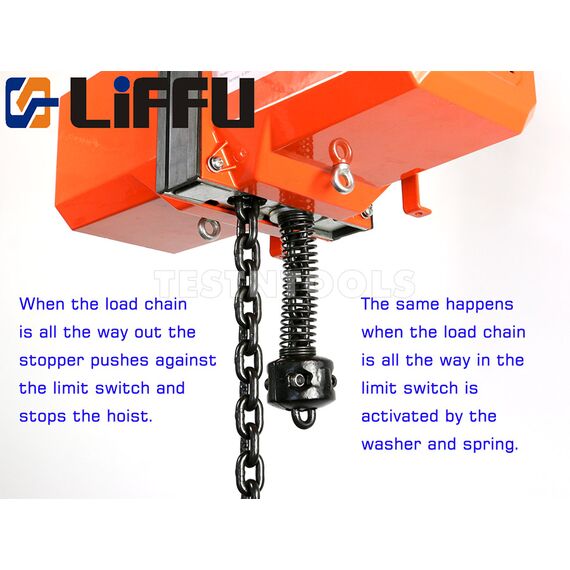

> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Swivel hooks
SPECIFICATIONS
Capacity 500Kg
Lifting height - customised
Lifting speed 3m/min
Hook to hook 480mm minimum
Single phase 230V 680W
Pendant cable length 5m (extendable^)
Duty cycle 25% over 10 minutes
Body size 390L x 170W x 170H mm
Weight 16Kg (no chain)
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric chain hoist
Chain bag
User manual
NOTES

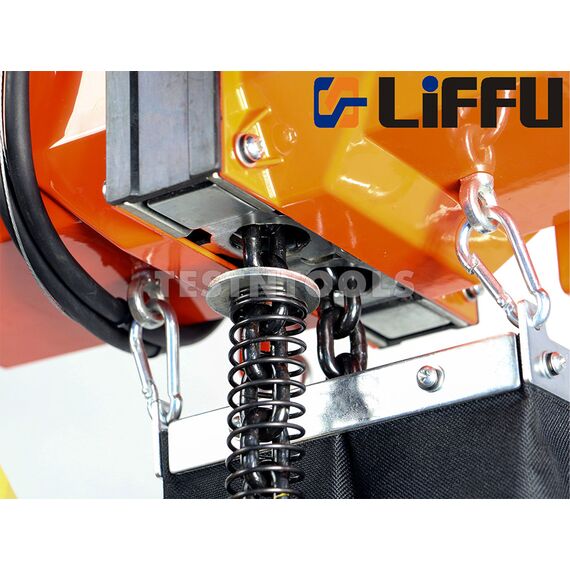

> The customer must fit the chain, springs, stoppers, and load hook. It's an easy job and instructions are supplied.
> The hoist cannot be operated continuously for long periods. Consider the 25% over 10 minutes duty cycle when installing a very long chain.
> Chain is supplied in full metre lengths only. High-tensile alloy load chain cannot be joined.
^ Requires installation of longer 4-core mains-rated cable by a registered electrician. We can do this for you, charges apply.
> The hoist may sometimes be supplied with a yellow body.
