IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.

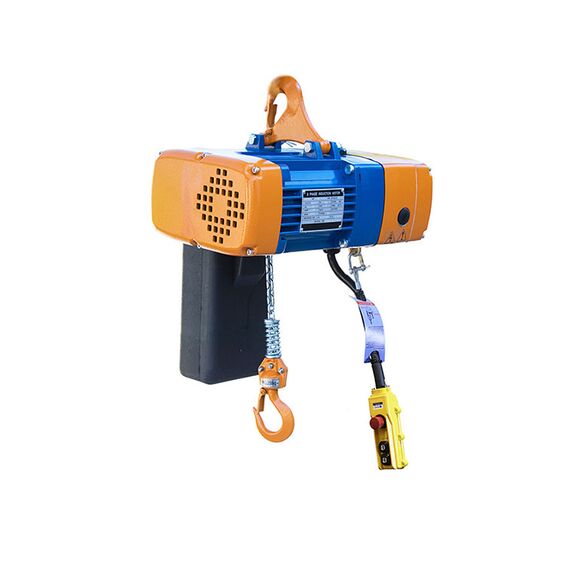

The Pacific Electric Chain Hoists offer a great balance between quality and price with inclusive features, making them suited for most applications. They are on 3 phase, 415V 50/60Hz, 60% duty cycle with the capacity from 250kg up to 5.0 Tonne. All models are tested to Australian standards AS1418.2.
FEATURES
> DC brake
> Motor thermal protection
> Overload protection clutch
> Fuse protection provided
> IP55 hoist protection rating
> IP65 pendant rating
> Grade 80 zinc-plated load chain
> Upper and lower electrical limit switches
> Reverse phase protection relay on all models excluding 250kg

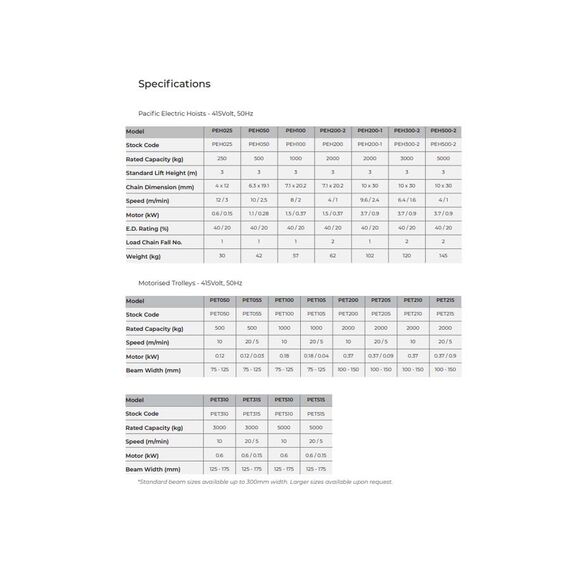

SPECIFICATIONS
Capacity 0.25T
Lift height 3m
Pendant control 2m
Chain size 4mm x 12mm
Speed 12m/min
Motor 0.6kW
Power supply 3Phase 415V 50Hz
Load chain fall 1
Weight 30kg
OPTIONAL
> Radio remote control
> Motorised trolley
> Extension chain (sold per metre)
WHAT YOU GET
Pacific Electric Hoist PEH025NH
24V low-voltage pendant control
Plastic chain-container
Emergency Stop button
Chain-gauge
User manual
NOTE
> Please contact us if you require a greater lift height, hoists can be modified to meet your criteria.
> There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
