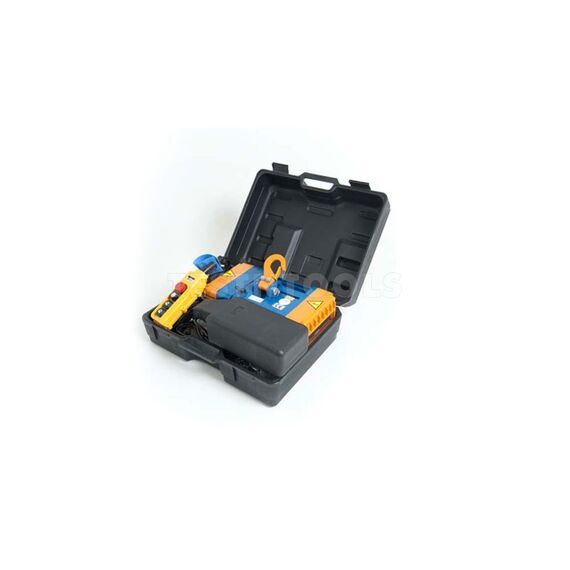

Pacific Porta Hoists are compact, lightweight and come in a durable travel case making them the ideal portable solution for lifting, lowering and handling loads up to 250kg. They are single phase 230V and plug into a standard New Zealand power point. All models are tested to Australian standards.
It's a variable and fixed speed hoist. Speed 1 is variable from 0 to 3.2m/min. Speed 2 is fixed at 12.5m/min. This gives precise load control while still having the ability to move fast when necessary.
FEATURES
Up/down switch
Emergency stop
18VDC low voltage pendant
Overload protection clutch
Upper and lower chain limit switches
Durable case hardened chain
DC electromagnetic brake
SPECIFICATIONS
Rated capacity 250Kg
Single phase 230V
Input power 600W
Standard lift height 6m
Load chain falls 1
Speed 1 variable 0 - 3.2m/min
Speed 2 fixed 12.5m/min
Pendant cable 5m
Power cable 3m
Duty cycle 30% ED, 180 starts per hour
Hoist protection IP54
Pendant protection IP65

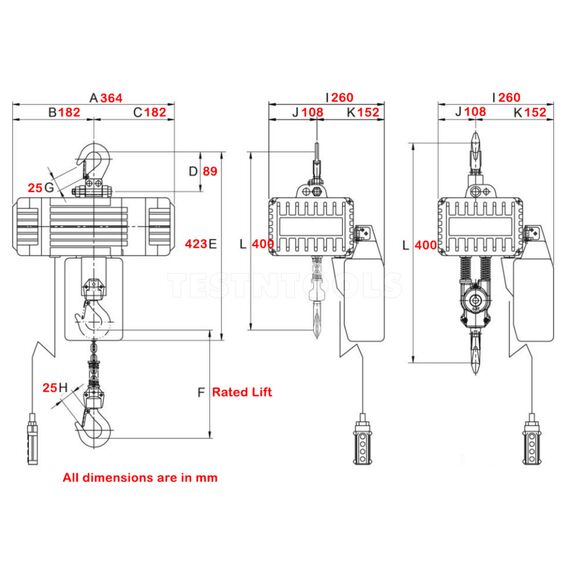

Minimum headroom 423mm
Chain 4.0 x 12mm
Weight 17.5Kg
STANDARDS
Manufactured to Australian Standard AS1418.2
INCLUDES
Electric chain hoist
Chain bag
User manual
Durable travel case
What's the difference between and WINCH and a HOIST?
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
NOTES
> It is recommended to use this hoist in a surge-protected power outlet.
