IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.
THIS HOIST CAN BE SUPPLIED WITH A REMOTE CONTROL - CONTACT US TO DISCUSS YOUR NEEDS

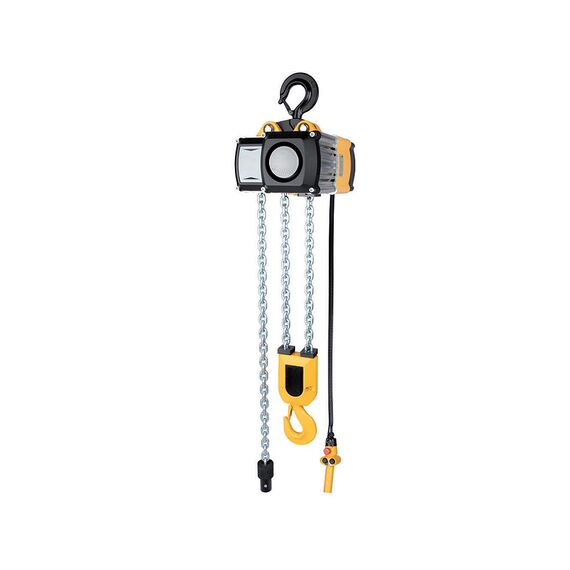

The Yale CPV electric chain hoist combines modern design and technical ingenuity suitable for various professional applications. The integrated limit switch for the top and bottom hook positions significantly extends the lifespan of the friction clutch, motor, and gearbox.
FEATURES
> CPV series are protected up to IP55 rating
> Increased operating safety through 42V control voltage (low voltage control) and the main contactor.
> Overload protection (slip clutch) in all CPV hoists is outside force flow to meet higher safety requirements.
> Electromagnetic spring pressure brake holds the load safely even during power failure.
> Different suspension types are available such as top hook, lug, or integrated trolley. A retrofit to another type of suspension is possible.
OPTIONAL FEATURES
> Push trolley
> Geared trolley
> Electric trolley
> Suspension lug
SPECIFICATIONS
> Capacity 2000 kg (2T)
> Speed 4 m/min
> 3 Phase Single speed
> Number of fall 2
> Lifting height 6 m
> Pendant control 5 m
> Pendant drop 5 m
> Chain size 7.1 x 20.5 mm
> Chain length 6 m
OPTIONAL
> Other operating and control voltages
> Flexible chain containers
> Thermal sensors
> Suspensions 90° turned
> Radio remote controls
> Pluggable control pendants
> Wall-mounted controls
> Power supply cables, CEE plugs with phase changing switch
> Rotary limit switch as a backup to standard limit switches
> Frequency controllers, stepless and ramp controls
WHAT YOU GET
1 x YEH205 CPV20-4-2000
Model CPV 20-4
NOTE:
> Please contact us if you require a greater lift height, hoists can be modified to meet your criteria.
> There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
