FEATURES
> Mainly used for lifting steel plates and round bars
> Powerful permanent magnetic circuit
> No electrical power required
> Stable and long-lasting performance
> High pull-off strength
> Bottom surface design for lifting both round and flat steel materials
> Safety factor of 3.5:1
> Reliable quality with a high safety factor
SPECIFICATIONS
Rated lifting strength 600kgf
Cylindrical lifting strength 300kgf
Max pull-off strength 2100kgf
Weight 24kg
NOTE
When Selecting the Right Magnetic Lifter, the following key factors should be considered:
> Material Thickness
> Material Type
> Weight
> Contact Surface Area
> Surface Finish (Roughness)
> Air Gap (any space between the lifter surface and the object)

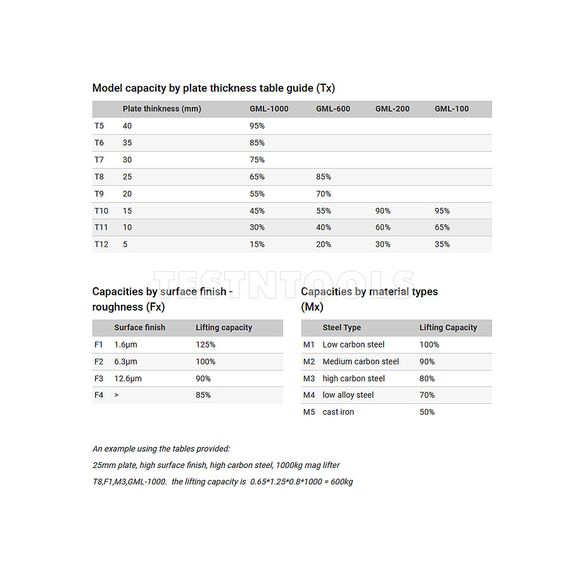

Formula for Calculating Lifting Capacity: Lifting Capacity = Tx * Fx * Mx * Rated Lifting Capacity
