Garrick Ute Mount Swivel Crane Hoist 12VDC 800kg UTECRANE500

UTECRANE500
$1,09900
In stock
Shipping Information
Find similar
Description

IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.

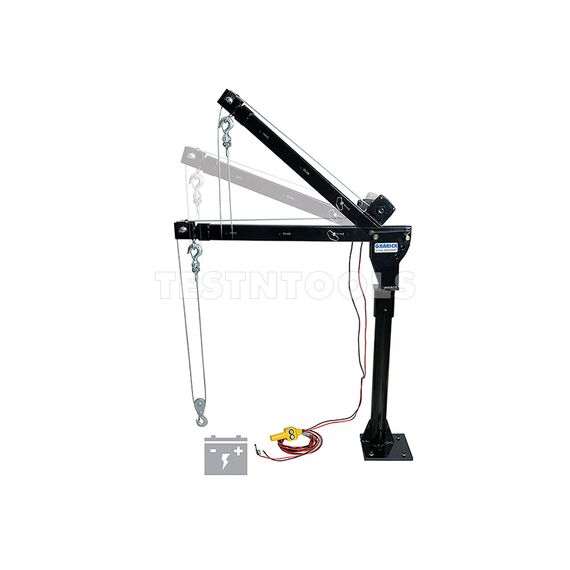

This crane hoist runs from 12 volts DC so it's great for any application where mains power is not available. It's ideal for the back of the ute, truck or trailer, etc to load/unload your gear.

Do not confuse this with an ordinary 4WD recovery winch, this is a very different machine! This is a HOIST which is for LIFTING, a WINCH is for PULLING.

The differential brake holds the load when the up/down switch is released, making it fail-safe if power is lost. The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled.

FEATURES
> Compact and lightweight
> Telescoping 3 position 360 degrees swivel boom
> Can be set up with single/double lifting speed

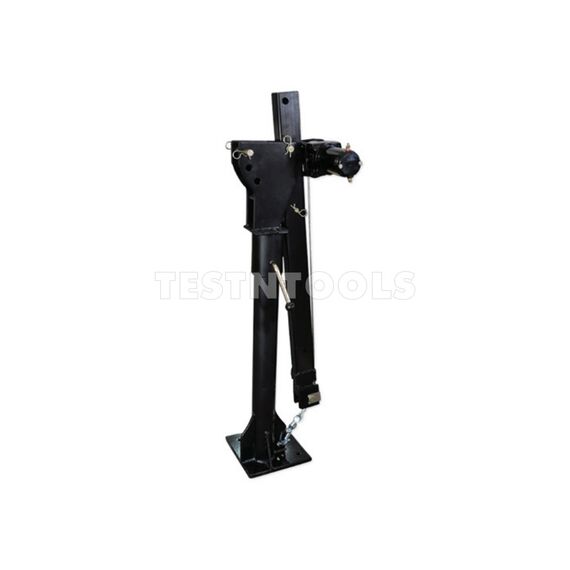

> Folds down for a small footprint

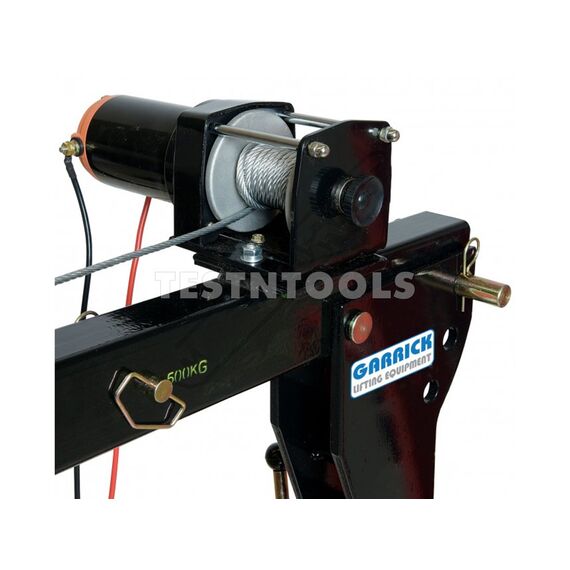

> Differential gear for braking
> Rotation lock lever
> Powered by 12V DC

SPECIFICATIONS

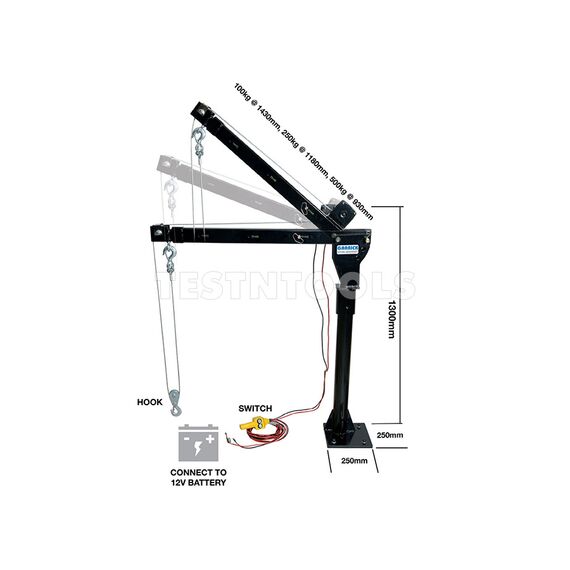

Maximum load 500Kg single rope, 800Kg double rope
 100kg @ 1430mm single rope
 250kg @ 1180mm single rope
 530kg @ 930mm single rope
No load single rope lifting speed 3.6m/min

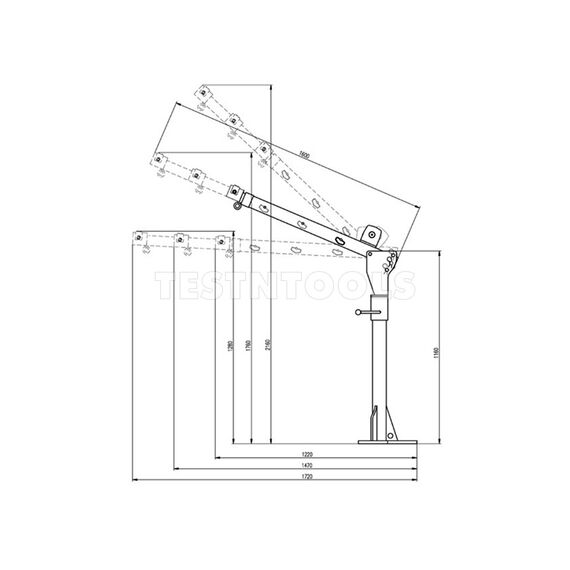

Boom elevations 3, 20, and 40 degrees
Boom swivel continuous 360 degrees
Mounting base 250 x 250 x 16mm plate
Folded storage height 1300mm
Controller cable 4.2m
Winch motor 12V DC
Weight 64 kg
