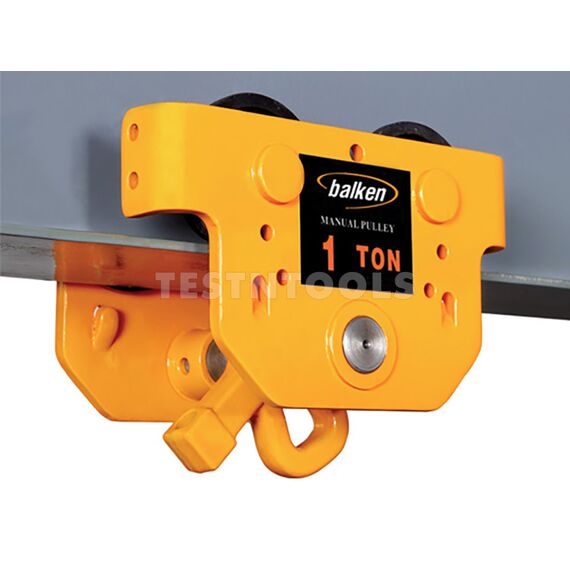

This plain (unpowered, push-type) trolley runs on an overhead I-beam and from it, you hang a chain block, electric chain hoist, or lever hoist. Such a setup makes it much quicker and easier to move heavy items around the workshop.
It should be installed on a suitably strong and well-mounted i-beam (RSJ or H-section steel beam) with the appropriate bottom flange width. The gap between the wheels is adjusted with the included spacer washers. It can be installed at any point on the beam, access is not required at the end of the beam.
FEATURES
> Anti-drop plates
> Hanger pin lock nuts
> Sealed wheel bearings
> Robust all-steel construction
> Plain unpowered push-type
> Adjustable to various beam widths
> Countoured wheel profile provides maximum contact on flat or tapered beams
> Meets or exceeds international standards

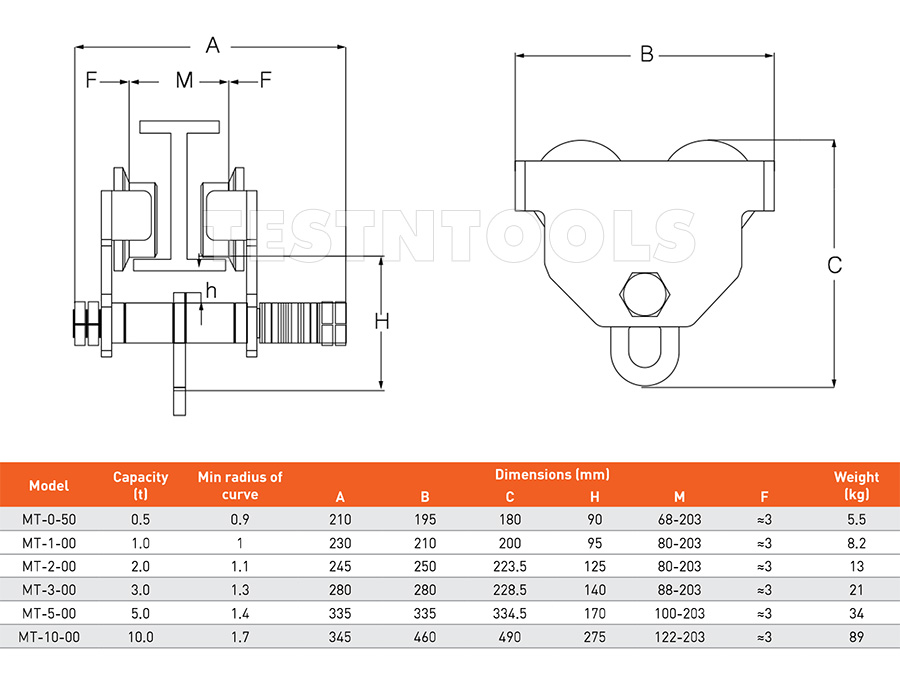

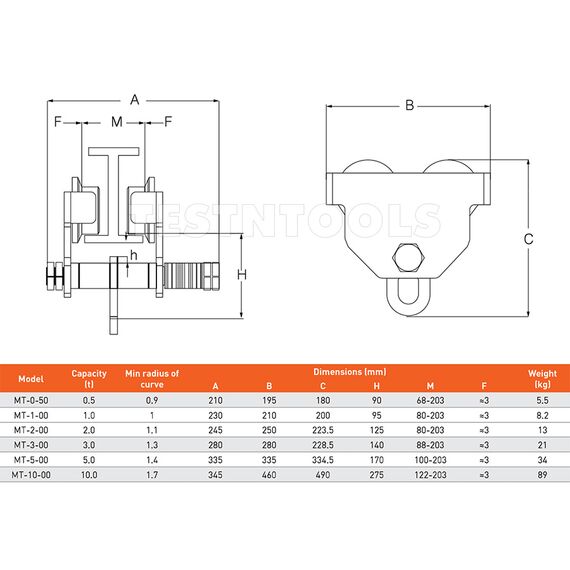

SPECIFICATIONS
Maximum load 10T (10,000Kg)
I-beam width 122 - 203mm
Unpowered push type
Weight 89 kg
