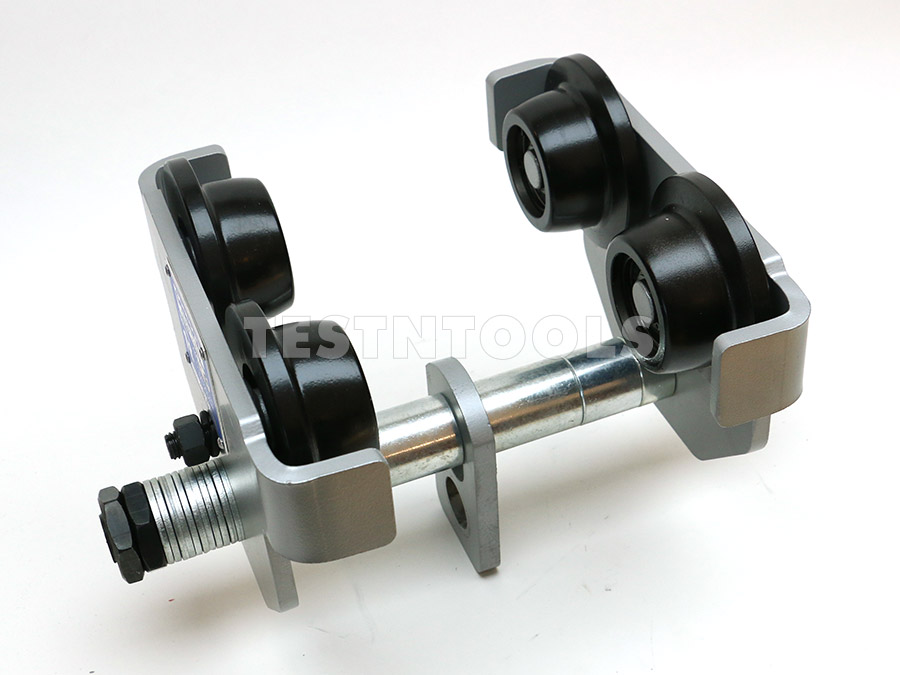

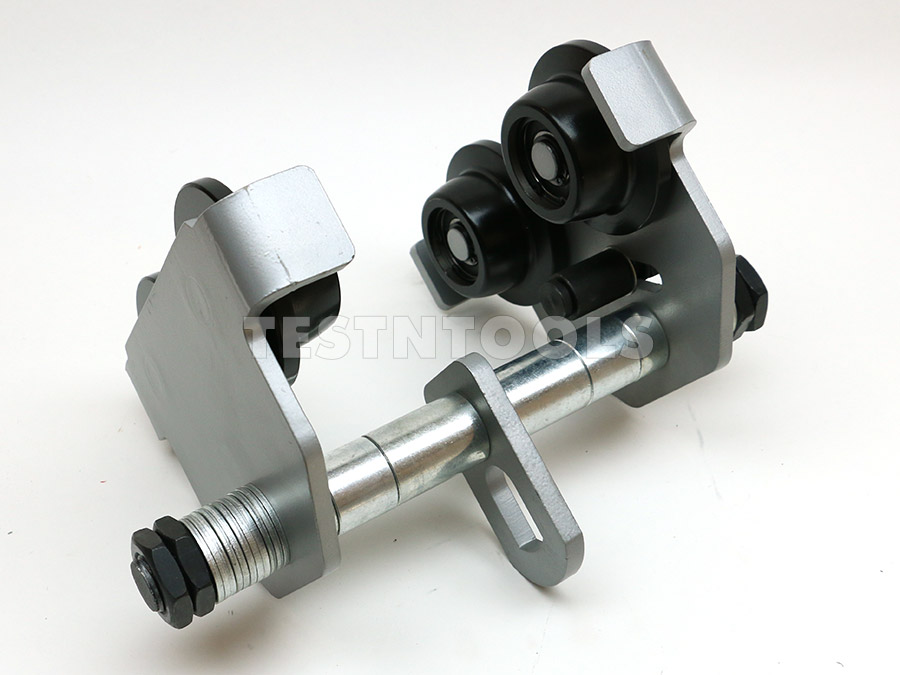

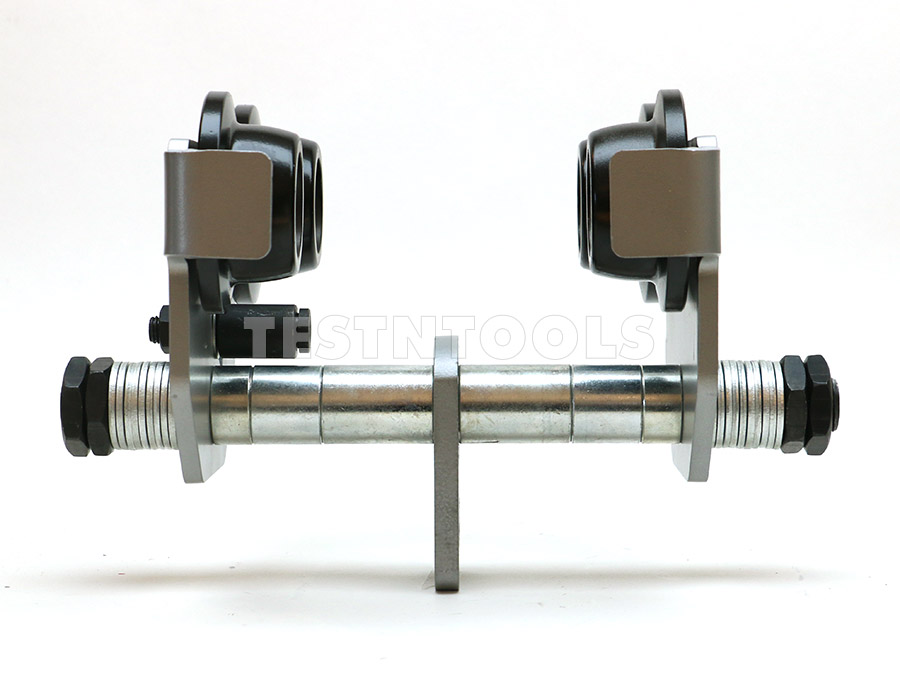

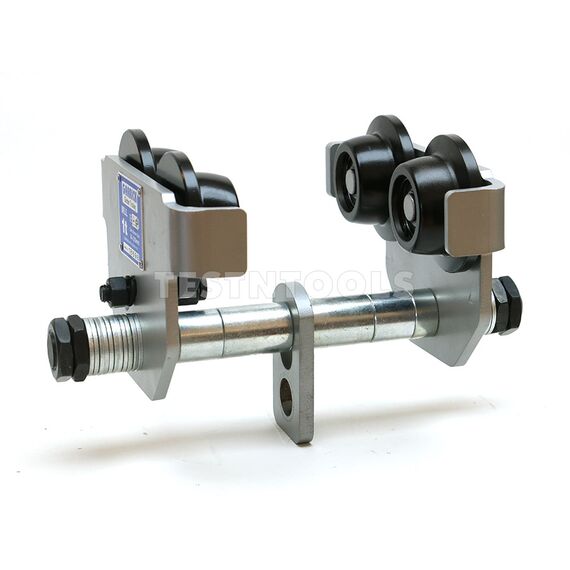

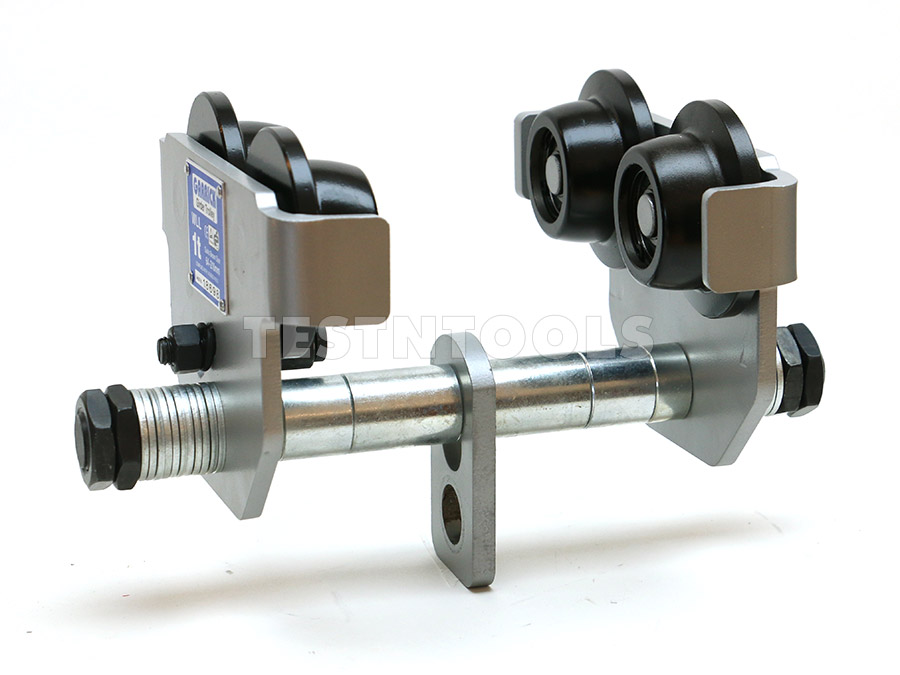

This plain (unpowered, push-type) trolley runs on an overhead I-beam and from it, you hang a chain block, electric chain hoist, or lever hoist. Such a setup makes it much quicker and easier to move heavy items around the workshop.
It should be installed on a suitably strong and well-mounted i-beam (RSJ or H-section steel beam) with a bottom flange width of 64-210mm. The gap between the wheels is adjusted with the included spacer washers. It can be installed at any point on the beam, so end of the beam access is not required.
FEATURES
> Fail-safe drop tabs
> Hanger pin lock nuts
> Sealed wheel bearings
> Robust all-steel construction
> Plain unpowered push-type
> Adjustable to various beam widths
> Durable stainless steel labels
> Complies with AS/NZS 1418.2
> Meets or exceeds International Standards GS, CE & ANSI
SPECIFICATIONS
Maximum load 1T (1000Kg)
I-beam width 64-210mm
Conical wheel diameter 55-60mm
Overall wheel diameter 84mm
Proof load test 1.5T
Unpowered push type
Size 214L x 195H mm
Bolt length 310mm
Weight 8kg
WHAT YOU GET

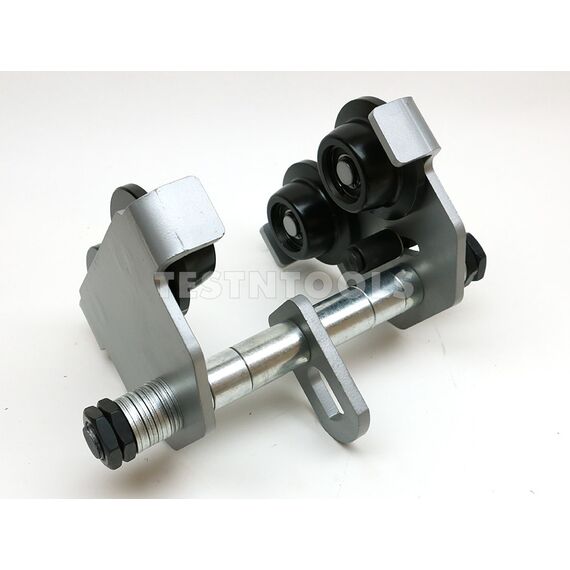

Garrick Push Girder Trolley 1T GPT010
Test Certificate
Instruction Manual
