THIS ITEM IS AVAILABLE ON SPECIAL ORDER. PLEASE CONTACT US TO CONFIRM PRICE AND AVAILABILITY

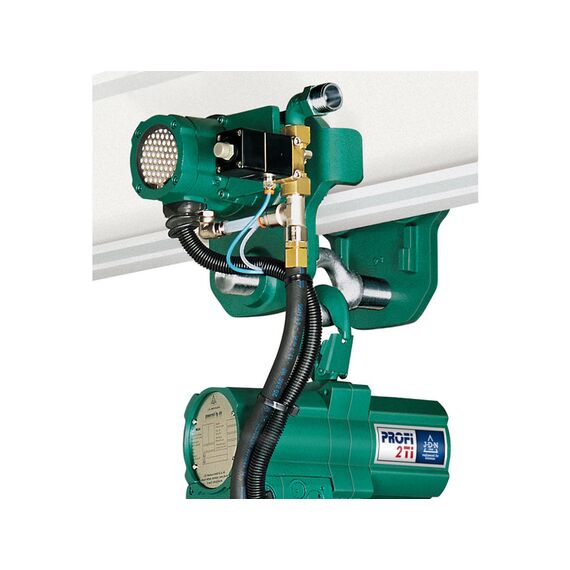

The JDN Trolleys are offered for both PROFI and Mining Air Hoists with the choice of manual operation (LN) for pushing or pulling by hand. Additionally, there are geared trolleys (LH) designed for moving loads using the hand chain mechanism. JDN also provides a motorized trolley option (LM) which utilizes an air motor for power. These trolleys can handle carrying capacities of up to 20 tonnes.
SUITABLE JDN AIR HOIST MINI AND PROFI MODELS
> Mini 125
> Mini 250
> Mini 500
> Mini 1000
> 05Ti
> 1Ti
> 1.5Ti
> 2Ti
> 3Ti
> 6Ti
> 10Ti
> 20Ti
FEATURES
> Able to negotiate curves
> Easy to install and required little maintenance
> ATEX -GAS ZONE 1 / DUST ZONE 21
> Fitted with anti-climb and anti-drop devices as standard
> Air supply can be fed by various systems; energy chain, c-rail, square rail, spiral hose or hose trolleys
> Four-coat epoxy paint finish available for offshore protection
> Comply with AS1418.2
> Made in Germany
SPECIFICATIONS
> Capacity 2T (2000 kg)
> Speed 15m/m
> Beam width 50-205
> Pendant 2m
> Air pressure 6 bar
> Air consumption trolley 0.6 m3/min
> Air consumption hoist 1.5 m3/min
> Motor output trolley 0.2 kW
> Motor output hoist 1 kW
> No of chain strands 1
> Travelling speed 9/14 m/min
> Hose connection trolley G 1/2
> Chain Dimension 7 x 21 mm
> Weight of chain 1 kg/m
> Hose Weight with standard lift 34 kg
> Weight with standard lift 60 kg
> Weight 26 kg
OPTIONAL
> Rack and pinion drive and spark resistance package
Model LM2
NOTE
> Please contact us if you require a greater capacity.
