IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.
The Pacific Electric Chain Hoists and Trolleys offer a great balance between quality and price with inclusive features, making them suited for most applications. They are on 3 phase, 415V 50Hz with the capacity from 500kg up to 5.0 Tonne. All models are tested to Australian standards AS1418.2.
FEATURES
> DC brake
> Motor thermal protection
> Overload protection clutch
> Fuse protection provided
> IP55 hoist and trolleys protection rating
> IP65 pendant rating
> Grade 80 zinc-plated load chain
> Upper and lower electrical limit switches
> Reverse phase protection relay on all models excluding 250kg

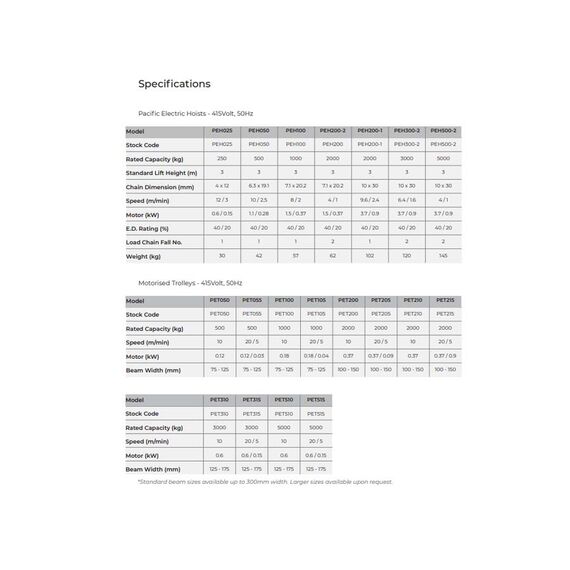

SPECIFICATIONS
Capacity 0.5T
Beam flange width 75-125 mm
Speed 20/5 m/min
Motor 0.12/0.03 kW
OPTIONAL
> Radio remote control
> Wider beam width
> Single or Dual Speed
NOTE
> Please contact us if you require a greater lift height, hoists can be modified to meet your criteria.
> There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
