THIS ELECTRIC TROLLEY IS SUITABLE ON YALE ELECTRIC CHAIN HOISTS - CONTACT US TO DISCUSS YOUR NEEDS

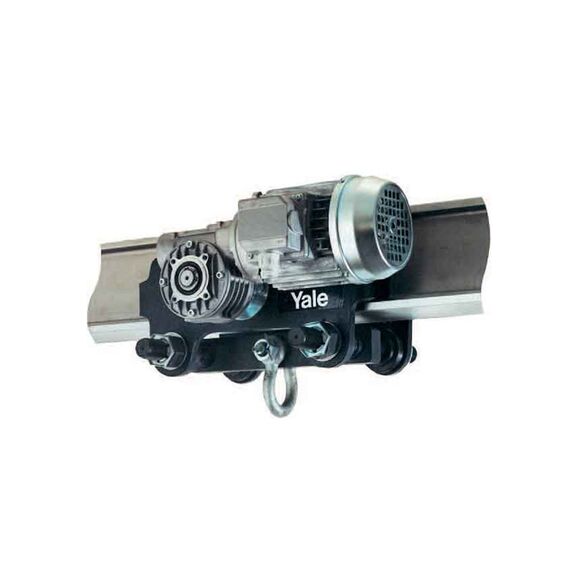

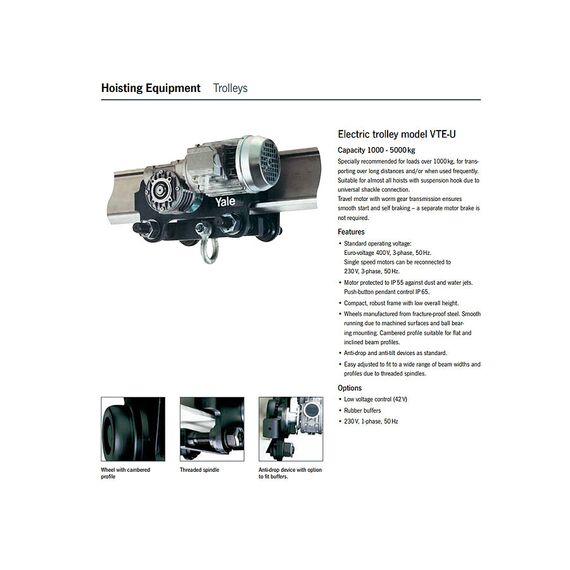

The Yale Motorised Trolley is highly recommended for handling loads that exceed 1000 kg, particularly when transporting over long distances or when in frequent use. Thanks to its universal shackle connection, it can be easily integrated with almost all hoists featuring a suspension hook.
SUITABLE YALE MODEL
> CPVF 10-8
FEATURES
> Travel motor with worm gear transmission
> Seamless start and automatic braking, eliminating the need for a separate motor brake
> Adjustable to fit a wide range of beam widths and profiles due to threaded spindles
> Anti-drop and anti-tilt devices as standard
> Motor IP55 rated
> Push-button pendant control IP65 rated
> Wheels manufactured from fracture-proof steel
> Smooth running due to machined surfaces and ball-bearing mounting
> Cambered profile suitable for flat and inclined beam profiles
> Single-speed motors can be reconnected to 230V, 3-phase, 50 Hz
SPECIFICATIONS
> Capacity 2T
> Speed 18/4.5 m/min
> 400V, 3 Phase Dual speed
> Beam size 58-180
OPTIONAL
> Low voltage control (42 V)
> Rubber buffers
> 230 V, 1-phase, 50 Hz
NOTE:
> Please contact us if you require a greater lift height, hoists can be modified to meet your criteria.
> There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
