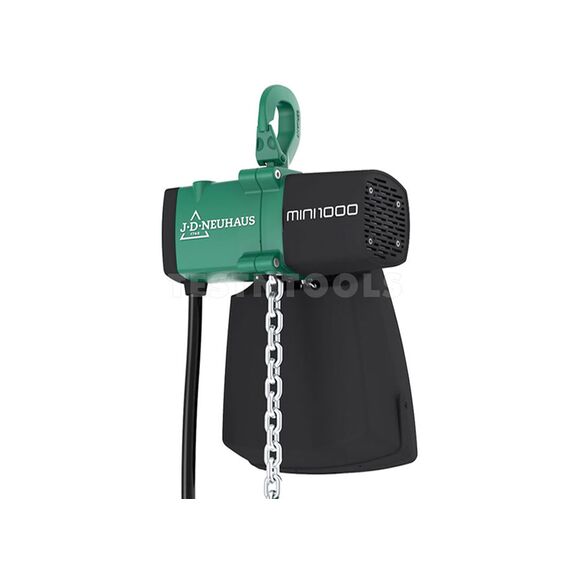

The new JDN Mini Hoist is the most compact hoist with a load capacity of up to 980 kg. It integrates with NFC tag, a service app that allows access to certificates, instructions, and maintenance information of each unit via the JDN service app. The JDN Mini offers maximum productivity, work safety, and economy to various areas of application such as industrial, chemical, pharmaceutical, and food industries.
FEATURES
> Maintenance functions can be carried out 'on-hook' without the need to dismount the hoist.
> Precision valves and extremely fine dosing of the compressed air supply ensures sensitive positioning of the load
> Limit switches will switch off the lifting and lowering movements when the bumper touches the stop valve
> Increased operating time to 800 hours through improved construction and optimisation
> Comply with AS1418.2
> Extended lifetime from 400 to 800 operating hours
> 100% duty rating and unlimited duty cycle
> Enhance safety mechanisms and explosion protection
SPECIFICATIONS
> Capacity 250 kg
> Air pressure 6 bar
> Number of chain strands 1
> Engine power at full load 0.45kW
> Lifting speed at full load 10m/min
> Lifting speed without load 20m/min
> Lowering speed at full load 20m/min
> Lowering speed without load 12.5m/min
> Air consumption at full load – lifting 0.95 m3/min
> Air consumption at full load – lowering 0.95 m3/min
> Lifting height 3m
> Control length 2m
> Weight at 3m lift/2 m control length 10kg
> Hose inside dia 13mm
> Air connection G 1/2
> Chain size 4.7 x 14.1mm
> Chain weight 0.48 kg/m
> ATEX zone 2/22
OPTIONAL
> Food grade corrosion resistant model upon request
> Hook made of steel or stainless steel
> Stainless steel load sleeve
> Stainless steel chain
> Uncoated cast aluminium motor housing
> Load chain and pendant control can be extended to a maximum of 10m
WHAT YOU GET

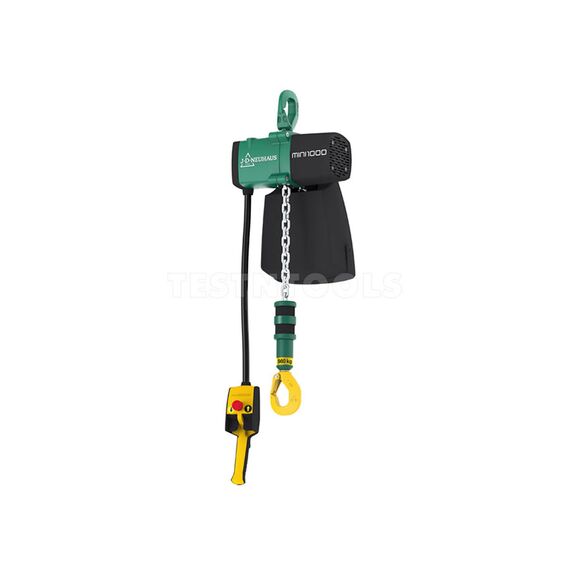

> 250kg JDN Mini Air Hoist

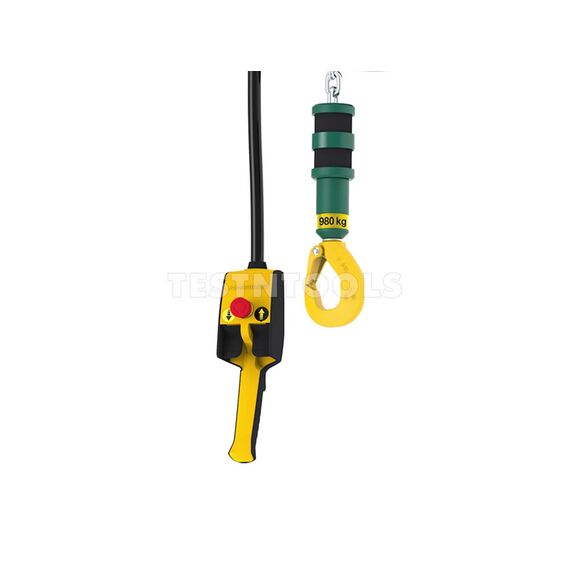

> Pendant with variable speed with E-stop
> Chain bucket
12 MONTHS WARRANTY
NOTES
What's the difference between and WINCH and a HOIST?
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
