THIS ITEM IS AVAILABLE ON SPECIAL ORDER. PLEASE CONTACT US TO CONFIRM PRICE AND AVAILABILITY

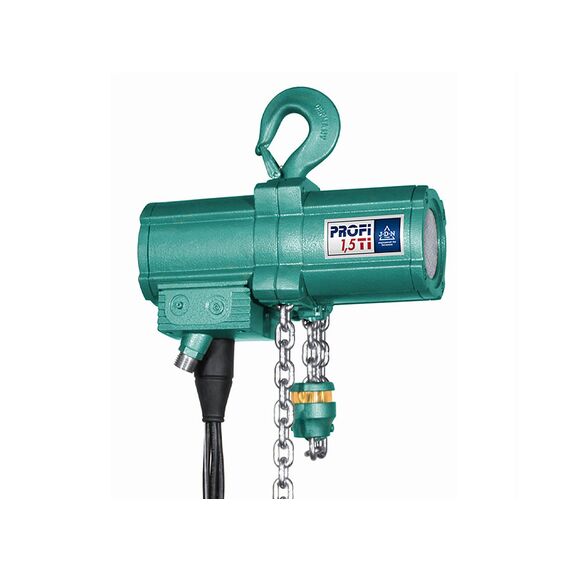

The JDN Air Hoists PROFI Series are designed and manufactured to be extremely robust, no downtime, and explosion safe. They are not susceptible to external influences and are extremely low maintenance.
FEATURES
> Custom-made for tough and demanding industrial applications and continuous operation
> Dust-protected ball bearings
> Permanently lubricated planetary gear with high-performance lubricant
> Gears made of hardened or tempered stainless steel
> Comply with AS1418.2
> 100% duty rating and unlimited duty cycle
> Resistant to dirt, dust, moisture, paint particles, spray mist, and aggressive vapours
> Mechanical and pneumatically operated
> Engines are specially lubricated with high-performance lubricant
> Ensured by the non-slip, low-maintenance multiblade motor
> ATEX–approved models available perfect for application in dangerous and explosive environments
> ATEX EX II 3GD IIA T4 Regulations - GAS ZONE 1&2/DUST ZONE 21&22
> Patented pre-lube motor design for low maintenance, oil-free operation
> Made in Germany

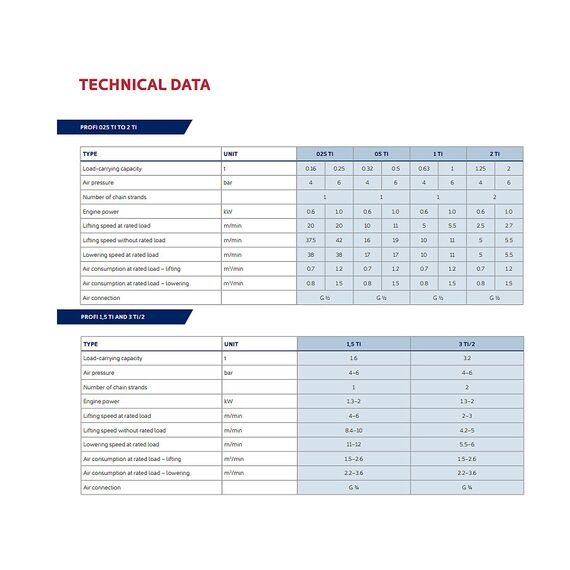

SPECIFICATIONS
> Capacity 1.5T (1500 kg)
> Air pressure 4-6 bar
> Number of chain strands 1
> Engine power at full load 1.3-2kW
> Lifting speed at full load 4-6m/min
> Lifting speed without load 8.4-10m/min
> Lowering speed at full load 11-12m/min
> Air consumption at full load – lifting 1.3-2.6 m3/min
> Air consumption at full load – lowering 2.2-3.6 m3/min
> Lifting height 3m
> Pendant length 2m
> Air connection G 3/4
> Operating temperatures -20C to +70C
OPTIONAL
> Chain container
> Increased ATEX Protection (Zone 1, Group IIB, Gas Zones 1 & 2 Group IIC. Increased paint protection, spark-proof)
WHAT YOU GET

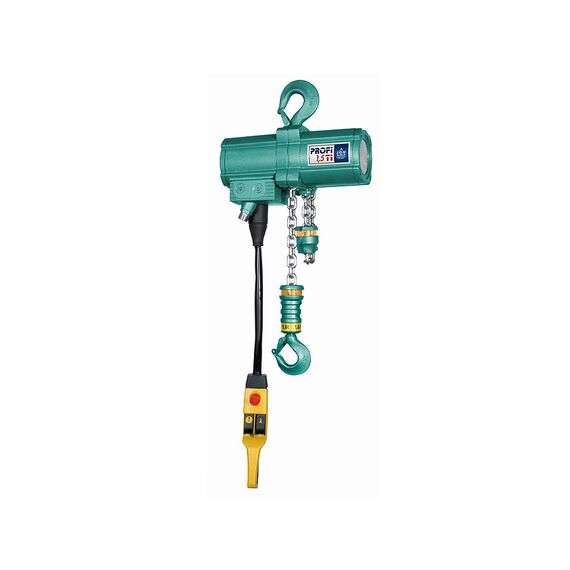

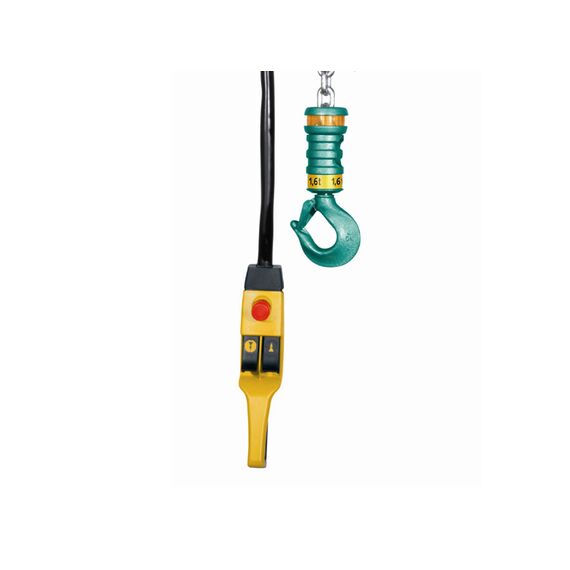

> 1500kg (1.5T) JDN Profi Air Hoist Pendant control
> 3m Chain length
12 MONTHS WARRANTY
NOTE
> Please contact us if you require a greater lift height or specific application requirements.
What's the difference between and WINCH and a HOIST?
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
