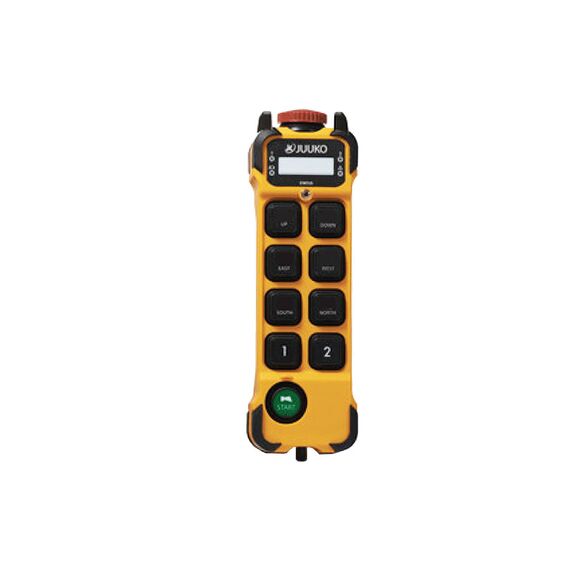

Juuko K808 Remote Control Transmitter 8 Button K808C2EQ

THIS JUUKO REMOTE CONTROL MAY BE ADDED TO ANY HITACHI HOIST - CONTACT US TO DISCUSS YOUR NEEDS

FEATURES

• Fitted with Emergency Stop Button
• Automatic channel switching allows users to select the primary working frequency and secondary working frequency
• Range limiting function allows reduction of maximum distance for the transmitter to continue operating
• Electronic key-code and automatic shut-off option programmable to prevent accidental activation of the transmitter
• System automatically changes to another frequency in presence of radio interShock-resistant
• Shock-resistant transmitter designed with ultra-high impact resistant corner bumpers
• Eco power management system to save battery life
• Receive and display via 4 LED signals coming from the receiver
• Mushroom type EMO button
• Wireless pairing procedure by using pendant push buttons
• Up to 100m line-of-sight operational range
• Ergonomic design and matt black rubber finish
• Multi-control system - master/slave, take/release, tandem

SPECIFICATIONS

• Button 8
• Dual speed
• Size 193 x 57 x 51mm
• Frequency band 433MHz
• Typical operating range 100m
• Radio-frequency power <10dBm
• Control System PLL
• Antenna Type and Impendance 50ohm
• Average power consumption 16mA a 3Vcc
• Operating and storage temperature -25°C)-(+55°C) / (-40°C)-(+85°C)
• Housing material PA(30%fg)
• Protection degree IP65
• Power supply DC3V (LR6(AA)1.5V*2)
• Weight 325g

The Juuko remote control system is available with all Hitachi Hoists, contact us to choose the correct setup for your job.
There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
