Juuko Remote Control and Receiver 2 Button 1 Transmitter HK2021R1T

THIS JUUKO REMOTE CONTROL MAY BE ADDED TO ANY HITACHI HOIST - CONTACT US TO DISCUSS YOUR NEEDS

FEATURES

• Fitted with Emergency Stop Button
• Automatic channel switching allows users to select the primary working frequency and secondary working frequency
• Range limiting function allows reduction of maximum distance for the transmitter to continue operating
• Electronic key-code and automatic shut-off option programmable to prevent accidental activation of the transmitter
• System automatically changes to another frequency in presence of radio interShock-resistant
• Shock-resistant transmitter designed with ultra-high impact resistant corner bumpers
• Eco power management system to save battery life
• Receive and display via 4 LED signals coming from the receiver
• Mushroom type EMO button
• Internal Bootloader, firmware update by using a computer
• Wireless pairing procedure by using pendant push buttons
• Independent LED’s to indicate the status of the battery
• Date logging Black Box system included, which records data and remote usage
• Ergonomic design and matt black rubber finish
• Multi-control system - master/slave, take/release, tandem
• Suitable for All 2-speed hoist

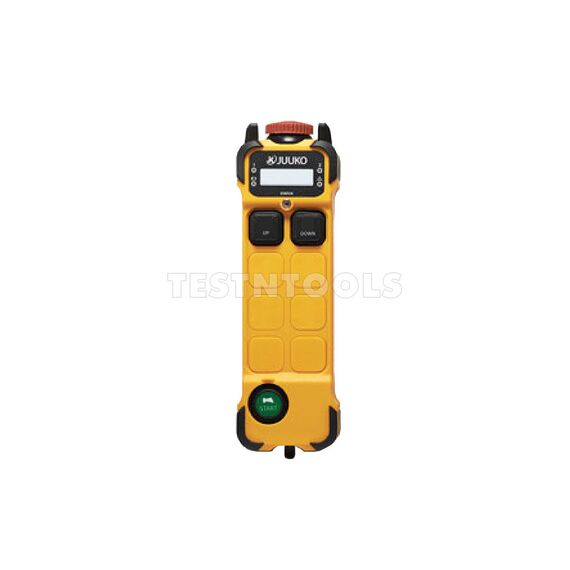

TRANSMITTER SPECIFICATIONS

• Button 2
• 2 speed
• Size 193 x 57 x 51mm
• Frequency band 315 / 418 / 429 / 433 / 447 / 470 / 915 MHz / 2.4 GHz
• Channel Space 12.5 kHz
• Hamming Distance ≥ 15
• Radio Communication Bi-directional
• Radio-frequency power <10dBm
• Stop command response time -50 ms
• Command response time -50 ms
• Operating and storage temperature -25°C)-(+55°C) / (-40°C)-(+85°C)
• Housing material PA6(30%fg)
• Protection degree IP65
• Power supply LR6(AA)1.5V / NiMH(AA)1.2V x2
• Operating distance up to 100m
• Weight 305g

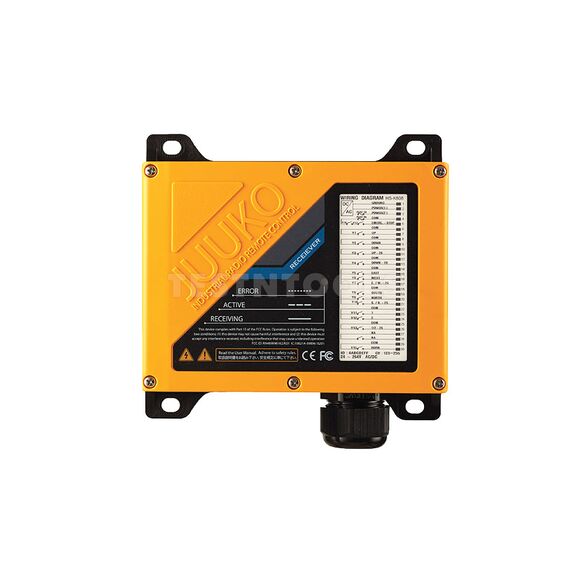

HS RECEIVER SPECIFICATIONS

• Size 190 x 184 x 64mm
• Frequency 433MHz
• Modulation method 4FSK
• Control system PLL
• Antenna impendance 50ohm
• Sensitivity -122dBm@baud 1.2K bps
• Average power consumption 15mA@AC220V (Standby Mode)
• Power supply 24V-264 AC/DC
• Weight 1.8kg

WHAT YOU GET

• 1 x Transmitter
• 1 x Receiver
• 1 x Wrist Strap
• 1 x Pouch

The Juuko remote control system is available with all Hitachi Hoists, contact us to choose the correct setup for your job.
There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
