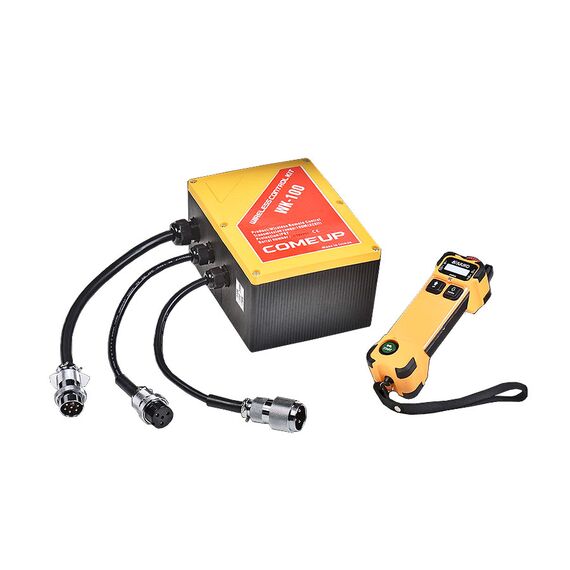

Juuko Wireless Remote Control Kit WK-100S

THIS JUUKO REMOTE CONTROL MAY BE ADDED TO ANY PACIFIC COMPACT HOIST - CONTACT US TO DISCUSS YOUR NEEDS

FEATURES

• Come with complete connectors for quick plug and play
• Cut power emergency stop design (built in three relays) meets highest safety standaHigh-performance
• High performance Industrial radio control module with operating range up to 100 metre
• Industrial standard transmitter with mushroom type EMO button and LED operating indicators.
• High IP rating: Transmitter IP65, Receiver: IP67
• Clever designed fitting plate for easy installation on COMEUP CWS (160,230,300) winches.
• Ideal for Pacific Electric winch, Pacific Compact hoist
• Suitable for 1 transmitter, 1 receiver

SPECIFICATIONS

• PN 883851 / AC110V
• PN 883852 / AC220V
• PN 883853 / AC240V
• Control module: Indirect control + Wireless Control
• Frequency band: 433MHz
• Typical operating range: 100 M (328 ft)
• Applicable current: AC 110V 15A / 220V 7.5A / 240V 7.5A
• Function: Go up / Go down / Emergency stop
• Control Unit > Power Input > Current range: 110V OR 220V OR 240V
• Control Unit > Power Input > Power lead for main power source: 2.0 mmx 3C/3P quick connector
• Control Unit > Power Output > Power lead for winch: 2.0 mmx 3C/3P quick connector
• Control Unit > Power Output > Control lead: 2.0 mmx 6C/6P quick connector
• Control Unit > Contactors > Number: 3 sets
• Control Unit > Receiver > Power supply: AC 110V / 220V / 240V
• Control Unit > Receiver > Function: Go up/ Go down / built-in buzzer
• Control Unit > Protection degree: IP67
• Transmitter > Power supply: DC3V
• Transmitter > Button: Emergency stop switch, Power on switch
• Transmitter > Power consumption supply: 16mA
• Transmitter > Battery: LR6(AA)1.5V*2
• Transmitter > Protection degree: IP65
• Environment > Operating temperature: -25°C - + 55°C
• Environment > Storage temperature: -40°C - + 65°C
• Environment > Humidity: 90%RH
• Complied with RED directive: 2014/53/EU
• Net weight: 3.7 kg / 8.2 lb
• Gross weight: 4.5 kg / 9.9 lb
• Box dimension: 286 x 266 x 170mm (12.0" x 10.5" x 6.7")

WHAT YOU GET

• 1 x Transmitter
• 1 x Receiver

The Juuko remote control system is available with all Hitachi Hoists, contact us to choose the correct setup for your job.
There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
