Juuko X Series Remote Control and Receiver X200C4

THIS JUUKO REMOTE CONTROL AND X SERIES RECEIVER MAY BE ADDED TO ANY PACIFIC ELECTRIC WINCHES - CONTACT US TO DISCUSS YOUR NEEDS

FEATURES

• Fitted with Emergency Stop Button
• Internal BootLoader, update firmware by using computer
• Wireless pairing to transmitter
• Range limiting function allows reduction of maximum distance for the transmitter to continue operating
• Electronic key-code and automatic shut-off option programmable to prevent accidental activation of the trShock-resistant
• Shock resistant transmitter designed with ultra-high impact resistant corner bumpers
• Compact lightweight design
• The receiver can be operated directly without the transmitter using the buttons on the receiver
• It can also be operated simultaneously by two people
• Ergonomic design and matt black rubber finish
• Multi-control system - master/slave, take/release, tandem
• Suitable for Yale MTRAC, Pacific Electric Winches (CP, CWG)

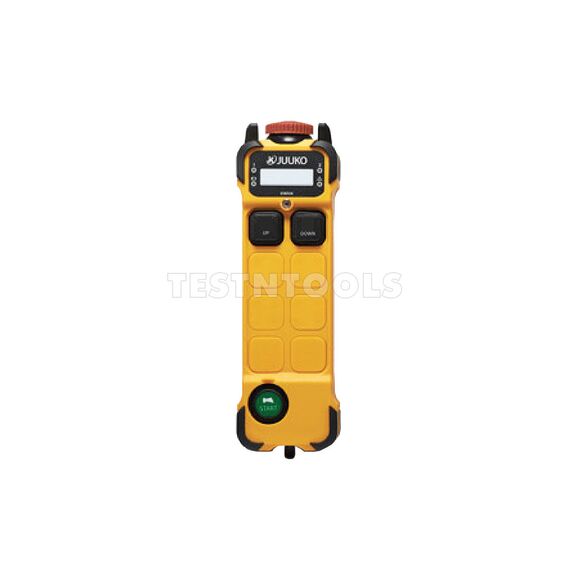

TRANSMITTER SPECIFICATIONS

• Button 2
• Size 193 x 57 x 51mm
• Frequency band 433MHz
• Typical operating range 100m
• Radio-frequency power <10dBm
• Control System PLL
• Antenna Type and Impendance 50ohm
• Average power consumption 16mA a 3Vcc
• Operating and storage temperature -25°C)-(+55°C) / (-40°C)-(+85°C)
• Housing material PA(30%fg)
• Protection degree IP65
• Power supply DC3V (LR6(AA)1.5V*2)
• Weight 325g

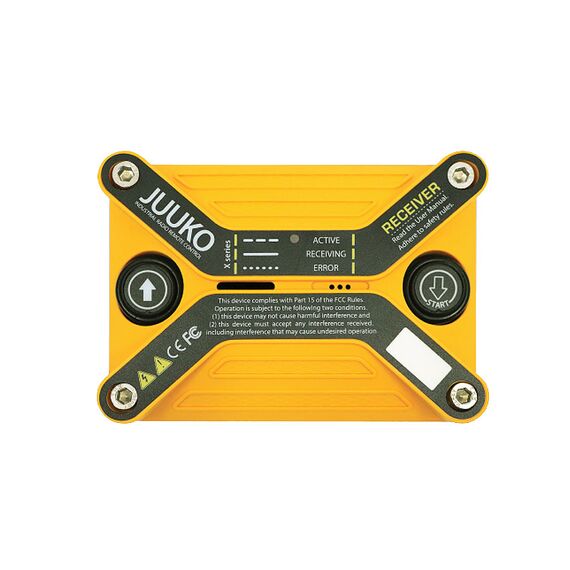

X RECEIVER SPECIFICATIONS

• Size 122 x 86 x 34mm
• Frequency 433MHz
• Modulation method 4FSK
• Control system PLL
• Antenna impendance 50ohm
• Sensitivity -122dBm@baud 1.2K bps
• Average power consumption 15mA@AC220V (Standby Mode)
• Power supply 24V-48 AC/DC
• Weight 2.950kg

WHAT YOU GET

• 1 x Transmitter
• 1 x Receiver X series

The Juuko remote control system is available with all Pacific Winches, contact us to choose the correct setup for your job.
There is a 1 week lead time for hoists sold with remote control or custom chain lengths.
