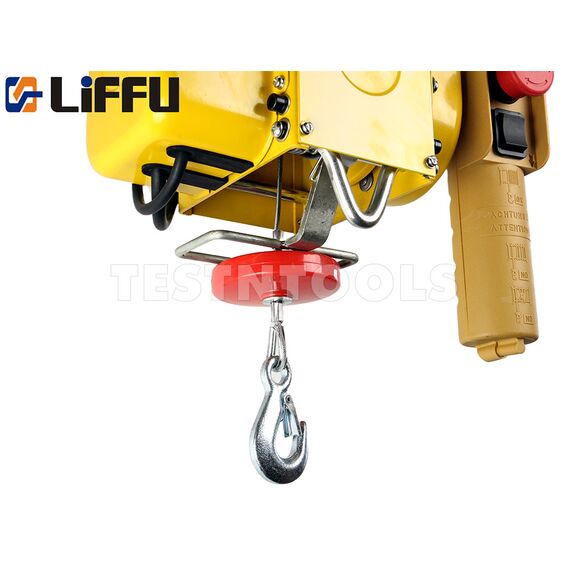

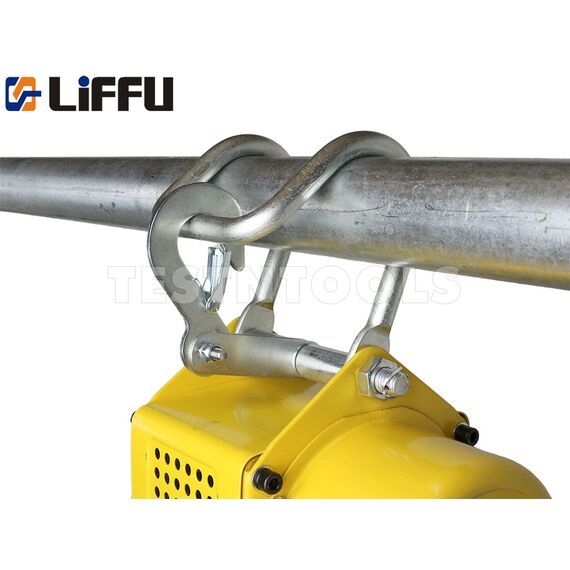

This hoist hooks onto standard-size scaffold tube (up to 50mm O.D.) making it a good option for builders, roofers and brick layers to get your materials up to where you're working. It will save you a lot of time and effort when working at heights.

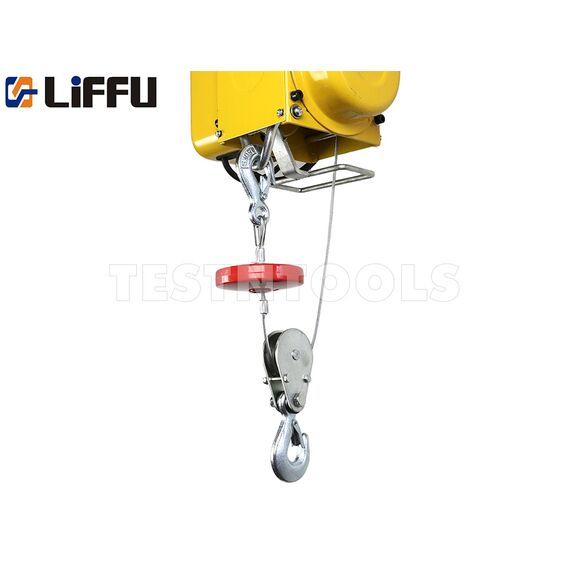

The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled. The electromagnetic brake is released when the up/down switch is pressed making it fail-safe if power is lost.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Cable strain relief
> Hook ballast
SPECIFICATIONS
Capacity 150Kg single rope, 300Kg double rope
Lifting height 18m single, 9m double
Lifting speed 8m/min single, 4m/min double
Single rope hook to hook 500mm
Hooks on 50mm max O.D. tube
Single phase 230VAC 550W
Pendant cable length 1.6m
Body size 300H x 225W x 145D mm
Weight 13.5Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric hoist
Pulley hook for double rope operation
User manual
