IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.

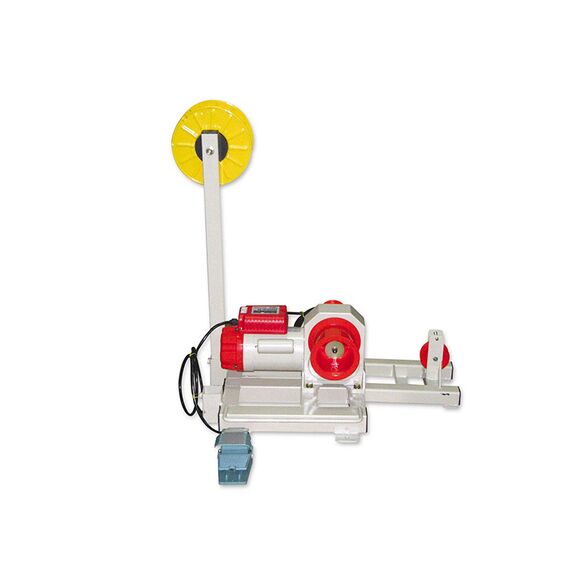

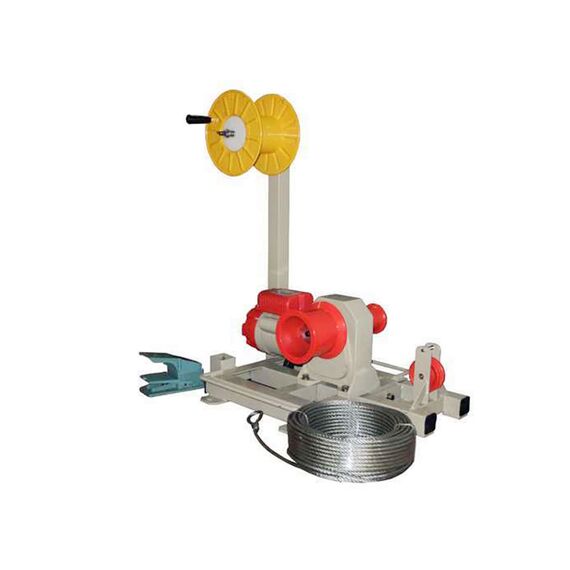

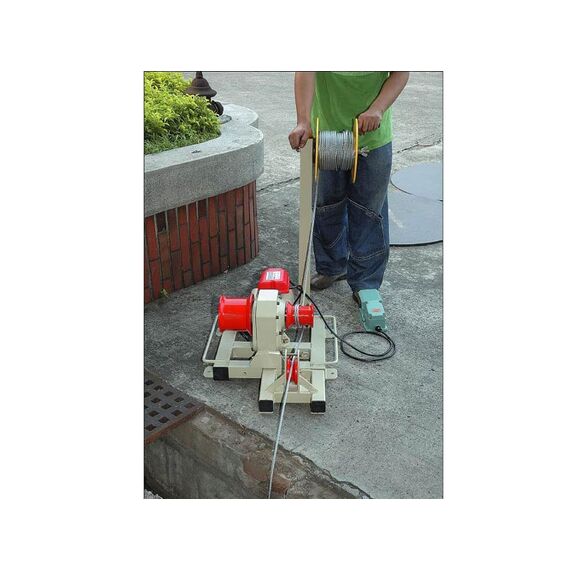

The Comeup Capstan Winch is specifically designed to handle the most challenging wall, ground, and underground pulling applications, thanks to its impressive dual capacity of 2500kg and 1500kg. This product is meticulously engineered and crafted from heavy-duty materials, resulting in a high-performance winch that requires minimal maintenance.
FEATURES
> Cable puller winch with dual speed
> Dual pulling capacity of 2500kg and 1500kg
> Rope storage reeler
> Electromagnetic spring-applied fail-safe brake
> Overload protection switch which ensures automatic shut-off
> Heavy duty high-efficiency ball bearings on all running surfaces
> Case-hardened gear train for maximum mechanical efficiency
> A minimum of six wraps of rope around the drum is necessary to support the rated load
> Suitable rope diameter 7mm to 12mm (not supplied)
SPECIFICATIONS
Pulling capacity (large/small drum) 1500/2500 kg
Max pulling duration (large/small drum) 15/15 min
Rope Speed (large/small drum) 4.0/2.5 m/min
Motor Output 240V 0.6kW IP44 1 Phase
Foot Control
Gear Ratio 154:1
Net Weight (large/small drum) 60 kg
WHAT YOU GET
Comeup Capstan Winch CAP250
Power supply cable 3m
User manual
Model H-2500
NOTE
> Do not use the Comeup Capstan Winch as a lifting device for vertical lifting.
