FEATURES
> Powder-coated finish
> Heat-treated gears and removable handles
> Compact, lightweight, and rugged construction
> Mount vertically or horizontally, but must be bolted into place, no hook option
> Positive Weston-style brake will hold the load in any position
> Mechanical components enclosed for protection and safety
> AS1418.2 compliance when correctly fitted with the approved wire rope and fittings
> Stainless steel option depending on the intended environment
> Available with optional rope

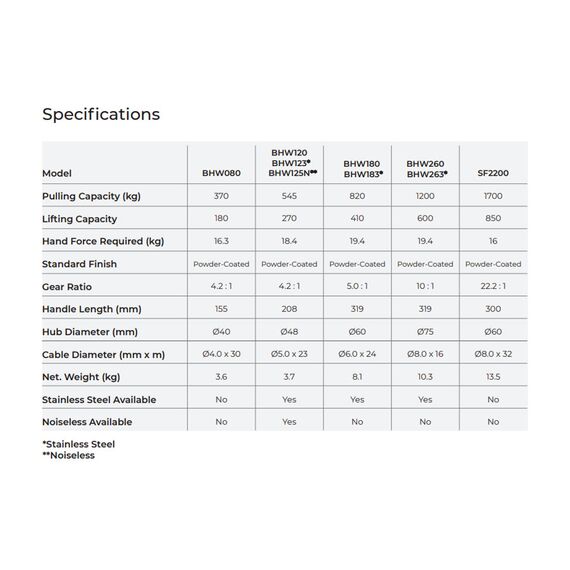

SPECIFICATIONS
Pulling capacity 370kg
Lifting capacity 180kg
Hand force required 16.3kg
Gear ratio 4.2:1
Handle length 155mm
Hub diameter 40mm
Cable diameter 4mm x 30m
Weight 3.6kg
Model BHW800
Note: Supplied without rope to allow full flexibility on length.
