FEATURES
> Powder-coated finish
> Heat-treated gears and removable handles
> Compact, lightweight, and rugged construction
> Mount vertically or horizontally, but must be bolted into place, no hook option
> Positive Weston-style brake will hold the load in any position
> Mechanical components enclosed for protection and safety
> AS1418.2 compliance when correctly fitted with the approved wire rope and fittings
> Stainless steel option depending on the intended environment
> Available with optional rope

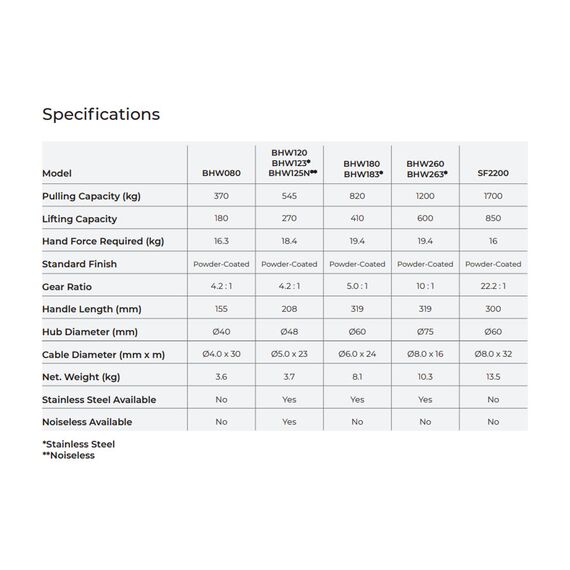

SPECIFICATIONS
Pulling capacity 1200kg
Lifting capacity 600kg
Hand force required 19.4kg
Gear ratio 10:1
Handle length 319mm
Hub diameter 75mm
Cable diameter 8mm x 16m
Weight 10.3kg
Note: Supplied without rope to allow full flexibility on length.
