Pacific Industrial Hand Winch 850Kg BHW155 Powder Coated

FEATURES
> Powder-coated finish
> Heat-treated gears and removable handles
> Compact, lightweight, and rugged construction
> Mount vertically or horizontally, but must be bolted into place, no hook option
> Positive Weston-style brake will hold the load in any position
> Mechanical components enclosed for protection and safety
> AS1418.2 compliance when correctly fitted with the approved wire rope and fittings
> Available with optional rope

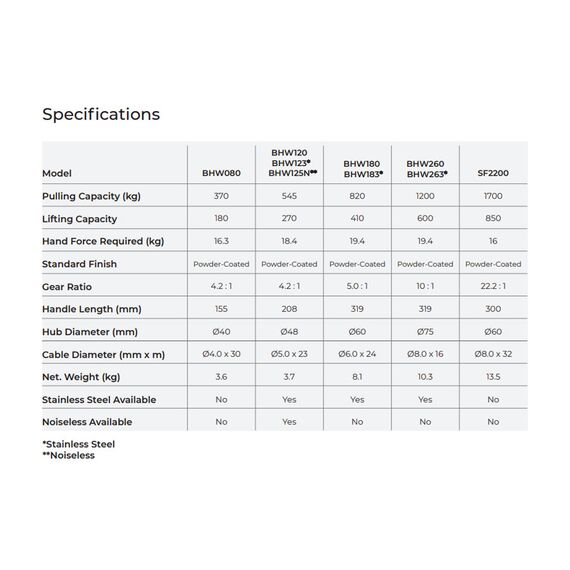

SPECIFICATIONS
Pulling capacity 1700kg
Lifting capacity 850kg
Hand force required 16kg
Gear ratio 22.2:1
Handle length 300mm
Hub diameter 60mm
Cable diameter 8mm x 32m
Weight 13.5kg

Model SF2200

Note: Supplied without rope to allow full flexibility on length.
