Yale Mtrac Endless Winch 300Kg 1 Phase Bi-Directional YEW305

YEW305 package
Contact us for a price
In stock
Shipping Information
Find similar
Description

THIS ITEM IS AVAILABLE ON SPECIAL ORDER. PLEASE CONTACT US TO CONFIRM PRICE AND AVAILABILITY



IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.

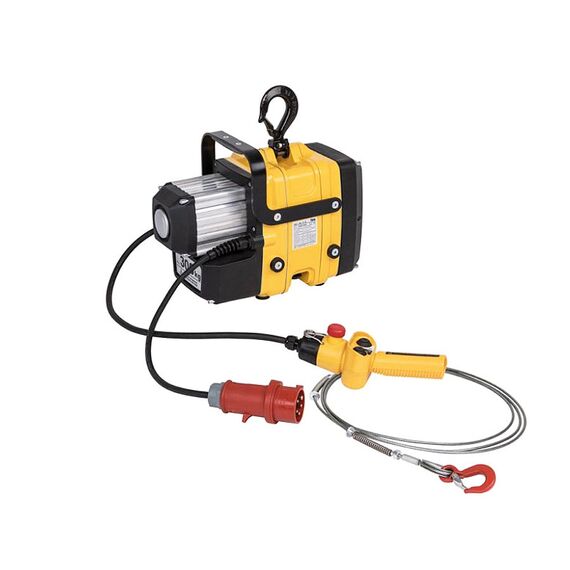

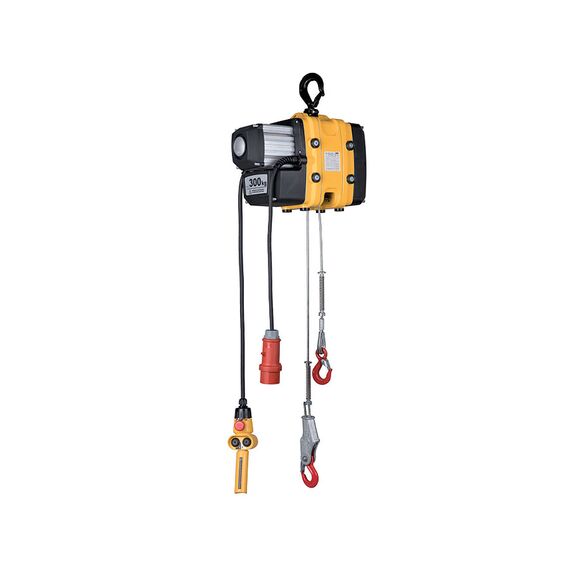

The Yale Mtrac endless winch introduces an elevated level of adaptability to the renowned Yale hoists. Its state-of-the-art industrial design enables seamless vertical, angled, and horizontal operations, delivering unparalleled efficiency and flexibility for a wide variety of applications.

The Yale Mtrac boasts an unlimited length of rope, eliminating any restrictions on lifting height.


FEATURES
> Capacities 66kg to 300kg in single-reeved configuration (up to 600kg in two-part reeved configuration, optional)
> Control pendant with IP 65-type of enclosure connected via a control cable
> Standard power cable of 1m fitted with a CE connector plug (or a Schuko-plug)
> Ergonomic, fitted carrying handle features a comfortable plastic grip
> Two spring buffers with adjusting rings can be attached to the wire rope to set the limit switches for both upward and downward movement
> 42V low-voltage control

FINISH FEATURES
> Winch is protected up to IP55
> Winch is classified up to 1 Bm/M3 acc. to FEM/ISO

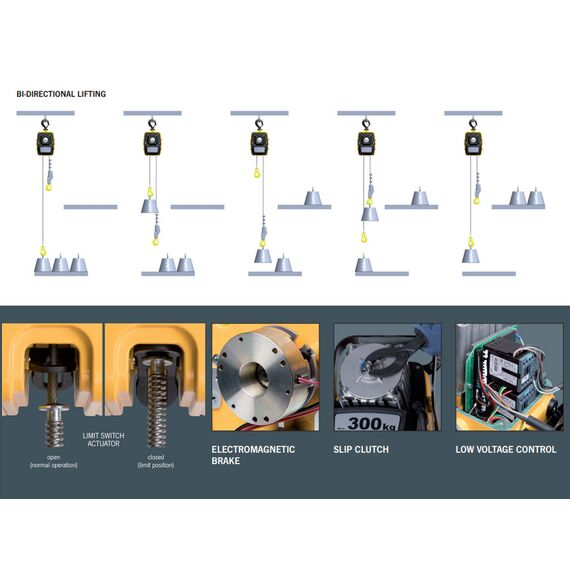

> Slip clutch is located outside of the load path for added safety
> Limit switches ensure safe cut-out for the upper and lower hook positions
> Electromagnetic brake holds the load safely, even in the event of a power failure
> Drive sheave is made of especially hardened steel designed to ensure long service life
> The patented (German Patent DE 10 2012 100 099) bi-directional actuator ensures the rope is safely guided and securely held in place

OPTIONAL FEATURES

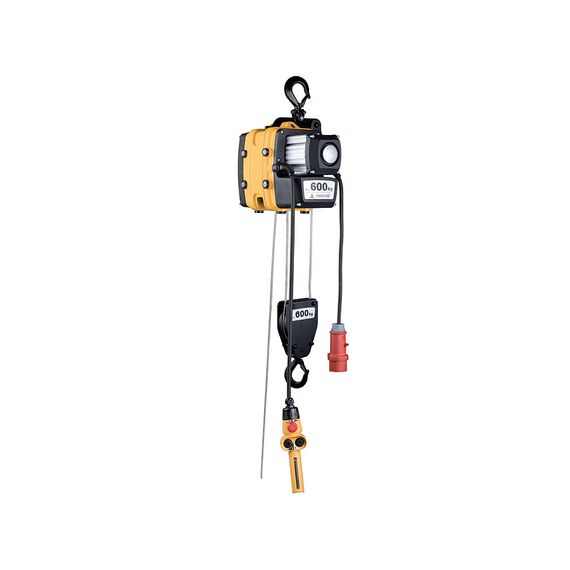

> Two-fall design

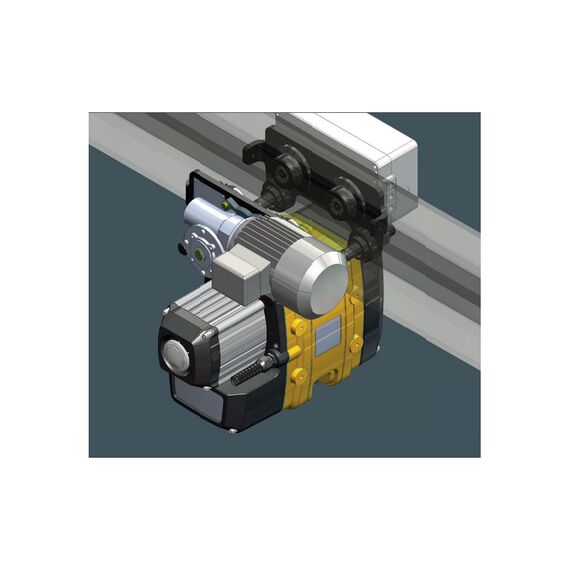

> Connection to trolleys

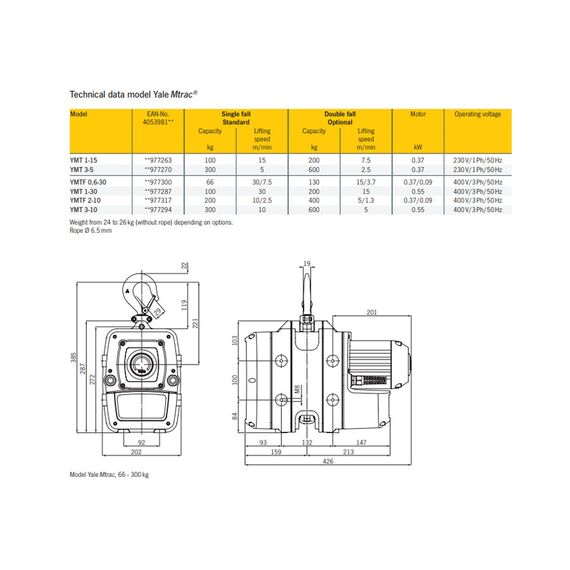

SPECIFICATIONS
> Capacity 300 kg
> Lifting speed 10 m/min
> Double fall capacity 600 kg (optional)
> Double fall lifting speed 5 m/min (optional)
> Motor 0.55 kW
> Voltage 400V 1Phase 50Hz
> Wire rope diameter 6.5 mm
> Weight without rope 26 kg

OPTIONAL
> Wireless remote control
> Two-part reeving configuration doubles the load capacity
> Special voltages on request
> Manual and electric trolleys
> Radio remote control with extended operation range
> Frequency converter for variable speed control or smooth starting
> Operating hours counter to determine the remaining service life and number of switching operations

WHAT YOU GET
1 x Yale Mtrac 300Kg 1 Phase YEW305
1 x YSP YEW Wire rope 60m with hook
1 x YSP YEW Wire rope 80m with hook
1 x YSP YEW Limit spring + mount + stop ring
1 x YSP YEW Conversion kit bi-directional
1 x YSP YEW Carry frame


Model YMT3-10


NOTE

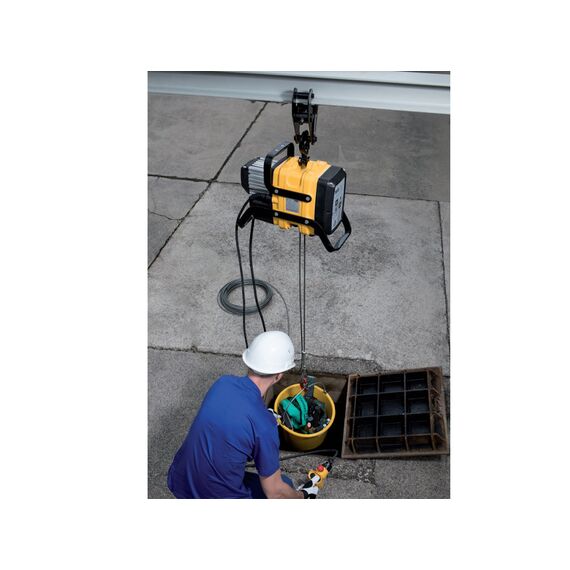

> This hoist is top-hook suspended and may require the use of a rated shackle or lifting eye if used as a scaffold hoist.
> There is a 1 week lead time for hoists sold with remote control or customised specifications. Contact us to discuss your needs
