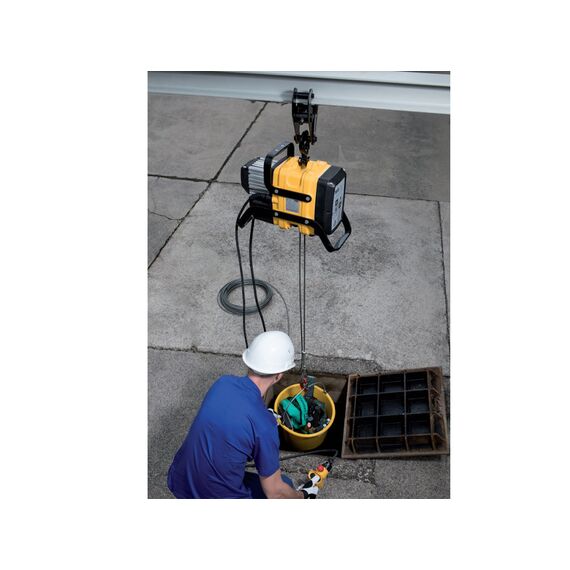

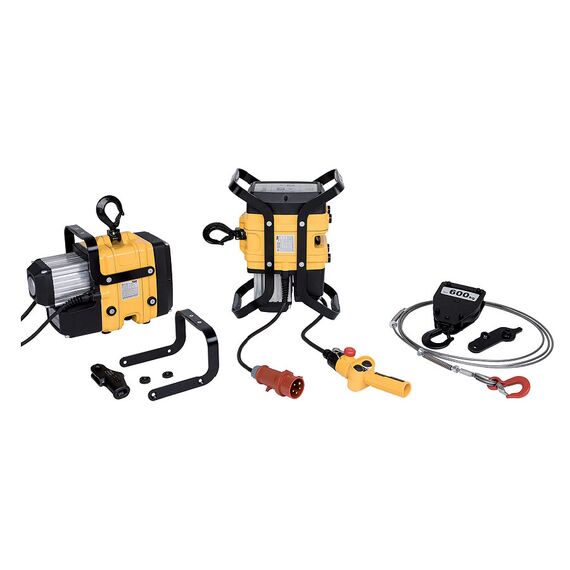

The Yale Mtrac endless winch introduces an elevated level of adaptability to the renowned Yale hoists. Its state-of-the-art industrial design enables seamless vertical, angled, and horizontal operations, delivering unparalleled efficiency and flexibility for a wide variety of applications.
The Yale Mtrac boasts an unlimited length of rope, eliminating any restrictions on lifting height. Wire rope is supplied separately, choose from 20, 40, 60, 80, or 150m. Search MTRAC to order or contact us for assistance.
FEATURES
> Capacities 66kg to 300kg in single-reeved configuration (up to 600kg in two-part reeved configuration, optional)

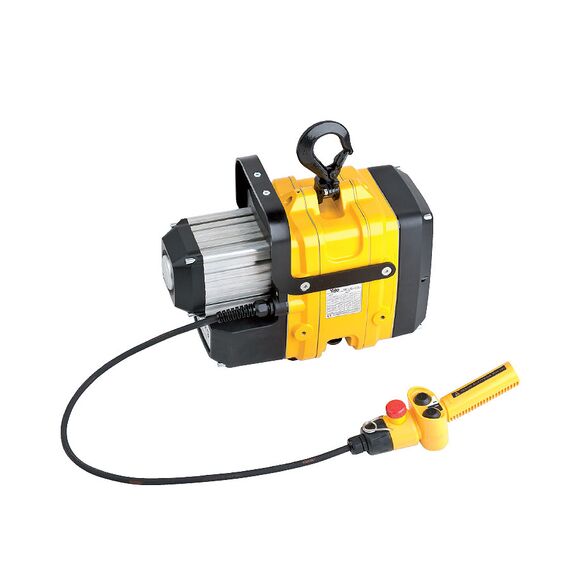

> Control pendant with IP 65-type of enclosure connected via a control cable
> Standard power cable of 1m fitted with a CE connector plug (or a Schuko-plug)
> Ergonomic, fitted carrying handle features a comfortable plastic grip
> Two spring buffers with adjusting rings can be attached to the wire rope to set the limit switches for both upward and downward movement.
> 42V low-voltage control
> Patented bi-directional actuator (optional)
> Wire rope is not included

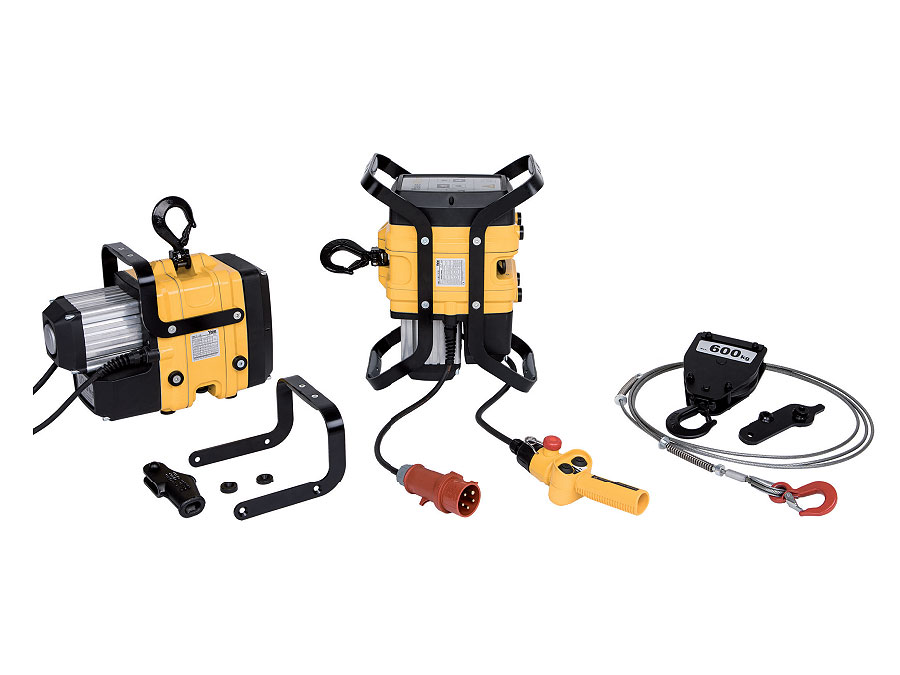

OPTIONAL FEATURES

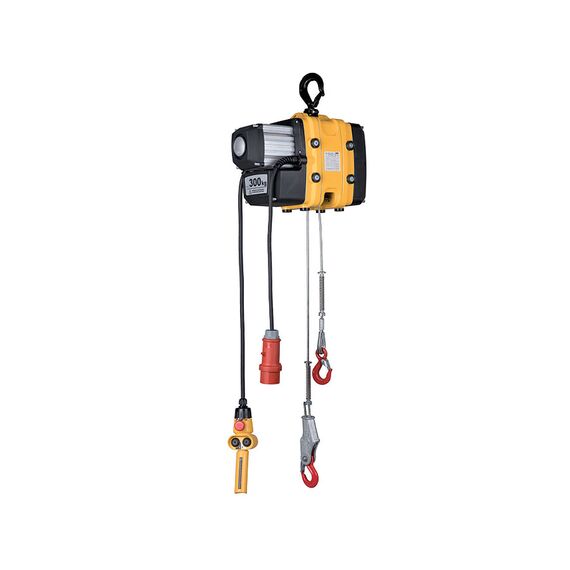

> Two-fall design

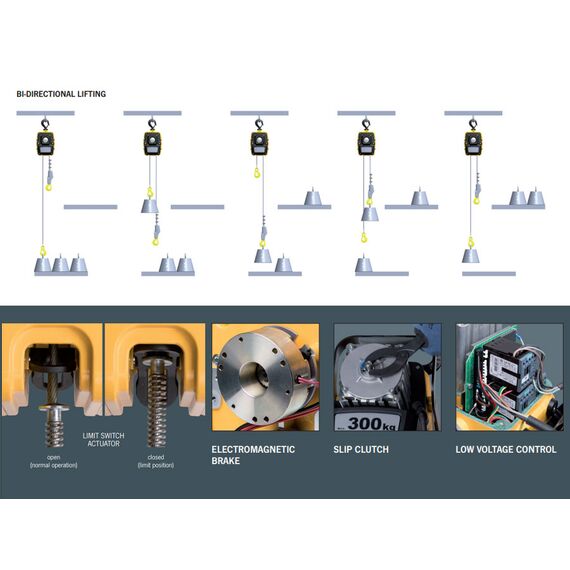

> Bi-directional lifting

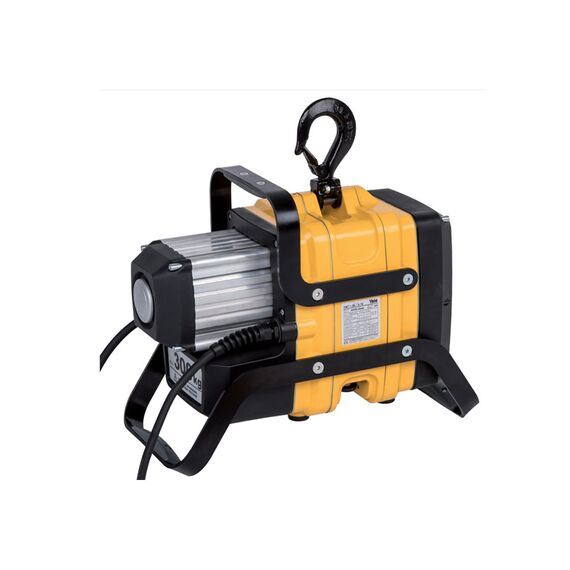

> Carrying frame

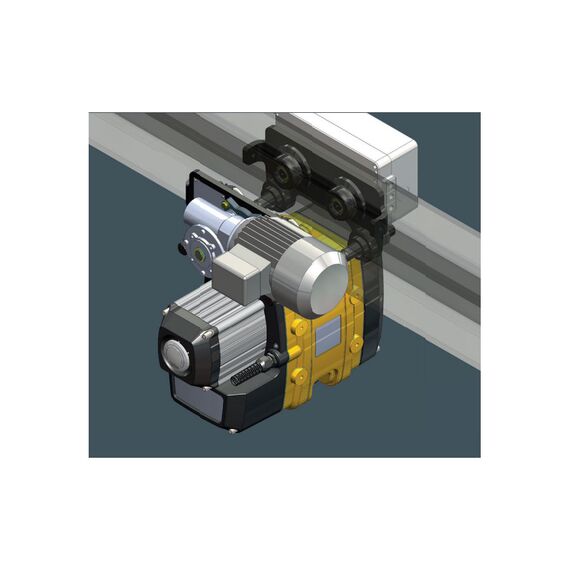

> Connection to trolleys

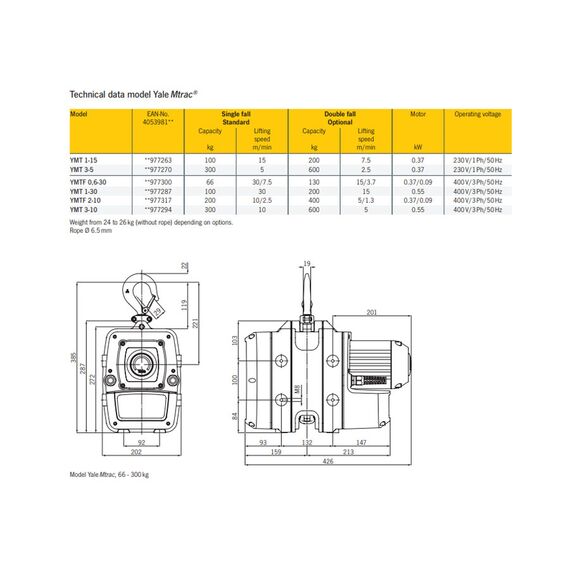

SPECIFICATIONS
> Capacity 300 kg
> Lifting speed 10 m/min
> Double fall capacity 600 kg (optional)
> Double fall lifting speed 5 m/min (optional)
> Motor 0.55 kW
> Voltage 400V 1Phase 50Hz
> Weight 26 kg
OPTIONAL
> Two-part reeving configuration doubles the load capacity
> Special voltages on request
> Manual and electric trolleys
> Steel wire ropes of various lengths
> Additional hook kit for bi-directional lifting
> Varying lengths for power and control cables
> Radio remote control with extended operation range
> Frequency converter for variable speed control or smooth starting
> Stainless steel wire ropes (with shorter service life than standard)
> Operating hours counter to determine the remaining service life and number of switching operations
> The transport and carrying frames are designed to protect the housing. They must not be used as load-bearing components.
WHAT YOU GET
1 x Yale Mtrac 300Kg 1 Phase YEW305 without rope
Model YMT3-10
NOTE
> There is a 1 week lead time for hoists sold with remote control or customised specifications. Contact us to discuss your needs.
