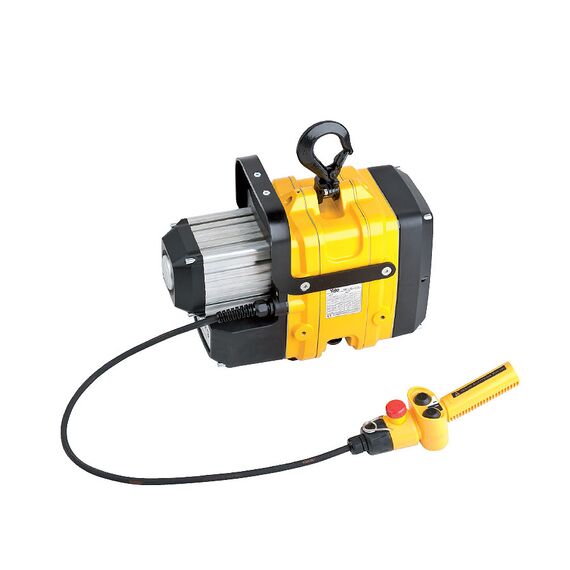

Yale Mtrac Endless Winch 500Kg 3 Phase YEW500

YEW500
Contact us for a price
In stock
Shipping Information
Find similar
Description

THIS ITEM IS AVAILABLE ON SPECIAL ORDER. PLEASE CONTACT US TO CONFIRM PRICE AND AVAILABILITY



IMPORTANT SHIPPING CRITERIA FOR THIS ITEM
This item is over 25Kg so it must be sent by Transport (i.e. collected and delivered by truck). The standard delivery charge calculated at checkout only covers delivery to town and city CBD business addresses (and if applicable the local freight depot). Unfortunately, it does not cover working-from-home business addresses. If you are unsure if your address qualifies for the standard shipping rate or want to have this item delivered to a home or rural address please contact us for a quote before ordering.

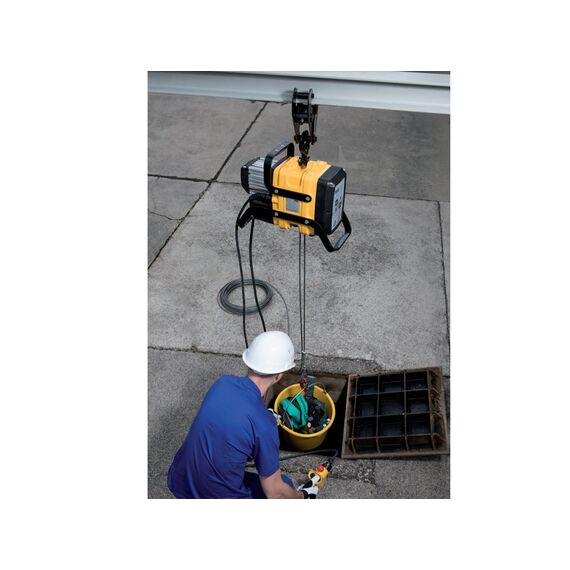

The Yale Mtrac endless winch introduces an elevated level of adaptability to the renowned Yale hoists. Its state-of-the-art industrial design enables seamless vertical, angled, and horizontal operations, delivering unparalleled efficiency and flexibility for a wide variety of applications.

The Yale Mtrac boasts an unlimited length of rope, eliminating any restrictions on lifting height. Wire rope is supplied separately, choose from 20, 40, 60, 80, or 150m. Search MTRAC to order or contact us for assistance.



FEATURES
> Capacities 66kg to 300kg in single-reeved configuration (up to 600kg in two-part reeved configuration, optional)
> Control pendant with IP 65-type of enclosure connected via a control cable
> Standard power cable of 1m fitted with a CE connector plug (or a Schuko-plug)
> Ergonomic, fitted carrying handle features a comfortable plastic grip
> Two spring buffers with adjusting rings can be attached to the wire rope to set the limit switches for both upward and downward movement.
> 42V low-voltage control
> Patented bi-directional actuator (optional)
> Wire rope is not included

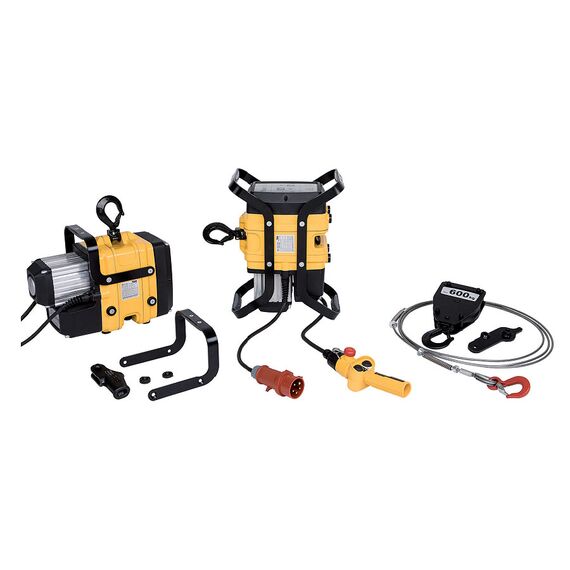

OPTIONAL FEATURES

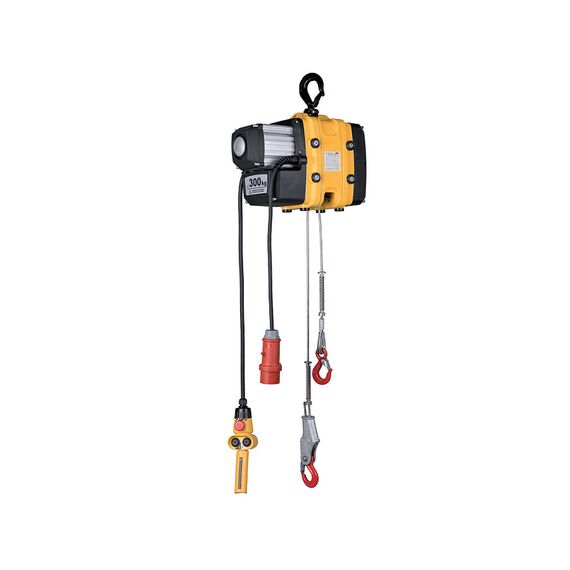

> Two-fall design

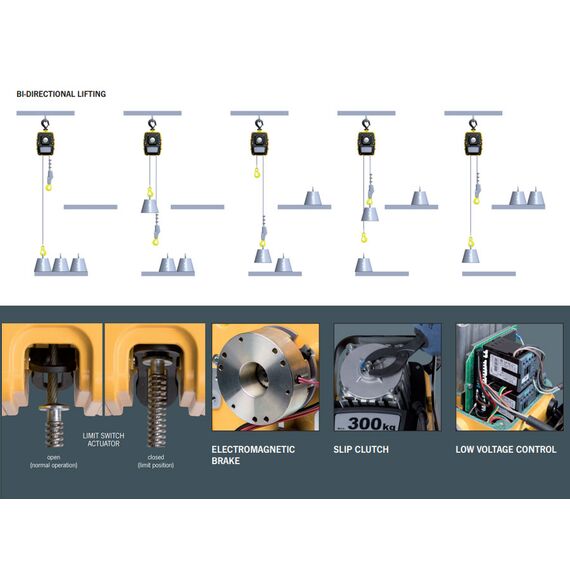

> Bi-directional lifting

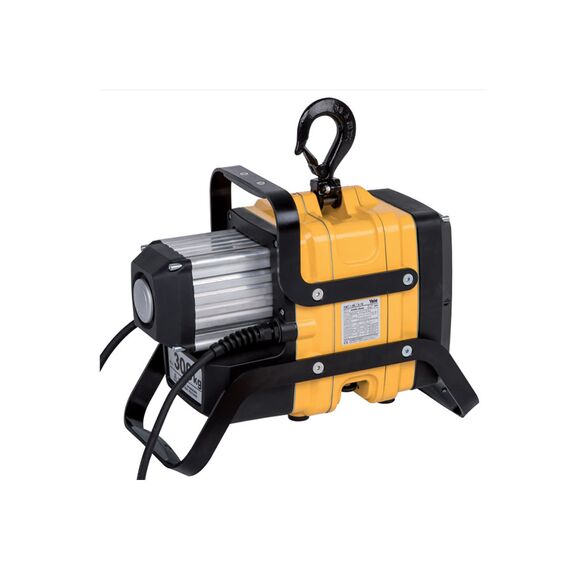

> Carrying frame

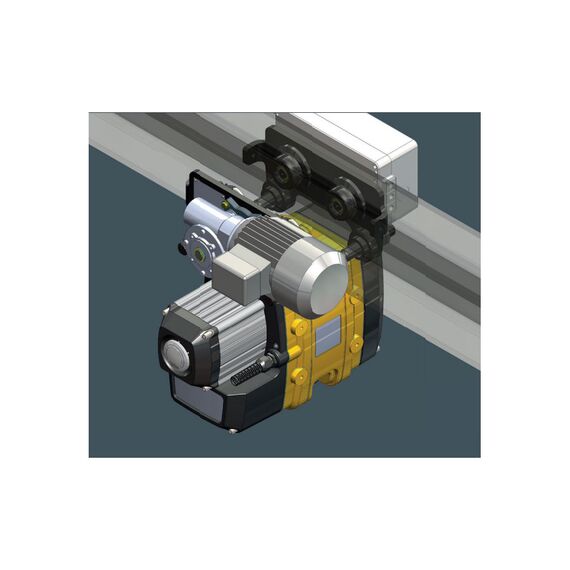

> Connection to trolleys

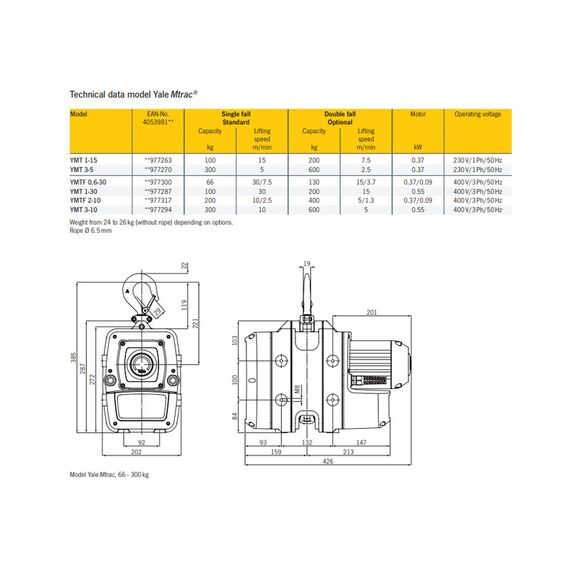

SPECIFICATIONS
> Capacity 500 kg
> Lifting speed 5 m/min
> Double fall capacity 1000 kg (optional)
> Double fall lifting speed 2.5 m/min (optional)
> Voltage 400V 3Phase 50Hz
> Weight 26 kg

OPTIONAL
> Two-part reeving configuration doubles the load capacity
> Special voltages on request
> Manual and electric trolleys
> Steel wire ropes of various lengths
> Additional hook kit for bi-directional lifting
> Varying lengths for power and control cables
> Radio remote control with extended operation range
> Frequency converter for variable speed control or smooth starting
> Stainless steel wire ropes (with shorter service life than standard)
> Operating hours counter to determine the remaining service life and number of switching operations
> The transport and carrying frames are designed to protect the housing. They must not be used as load-bearing components.

WHAT YOU GET
1 x Yale Mtrac 500Kg 3 Phase YEW500 without rope


Model YMT5-5


NOTE
> There is a 1 week lead time for hoists sold with remote control or customised specifications. Contact us to discuss your needs.
