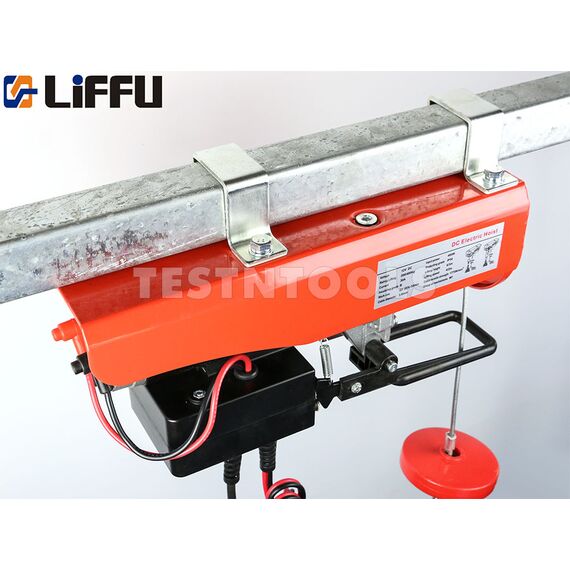

This hoist runs from 12 volts DC so it's great for any application where mains power is not available. It can be used with your ute, tractor, 4-wheeler, motorhome, boat etc to load and unload your gear. Also handy for off-grid sheds or houses with solar power.
This is a very different machine compared to an ordinary 4WD recovery winch. This is a HOIST which is rated for LIFTING.

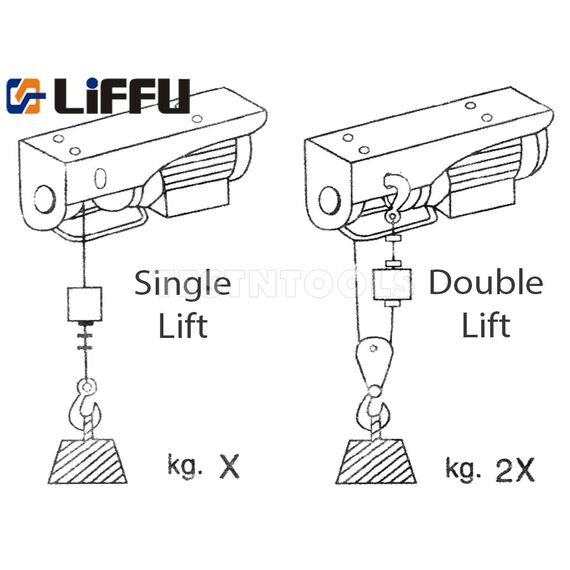

The maximum lifting capacity is achieved when the rope is doubled over with the included pulley hook. In a single rope configuration, the capacity is halved and the speed is doubled. The electromagnetic brake is released when the up/down switch is pressed making it fail-safe if power is lost.
FEATURES
> Up/down switch
> Emergency stop
> Up overrun protection
> Electromagnetic brake
> Cable strain relief
> Hook ballast
SPECIFICATIONS
Capacity 200Kg single rope, 400Kg double rope
Lifting height 6m single, 3m double
Lifting speed 4m/min single, 2m/min double
Motor 12V DC 30A 400W
Pendant cable length 1.6m
Size 350L x 120W x 160H mm
Weight 10Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric hoist

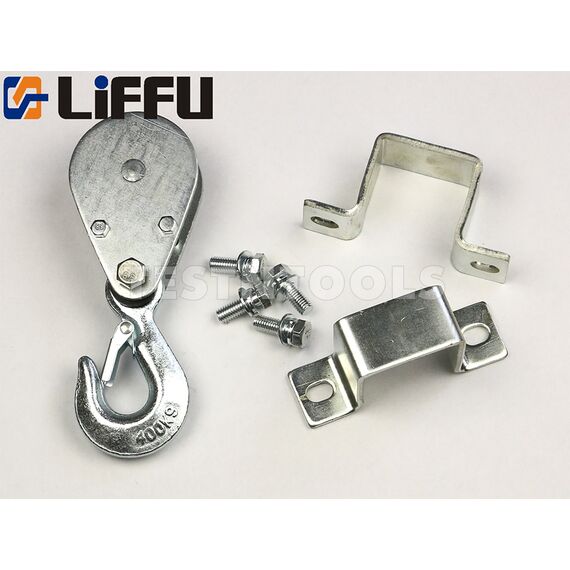

Pulley hook for double rope operation
Mounting brackets and bolts
User manual
What's the difference between and HOIST and a WINCH?
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
